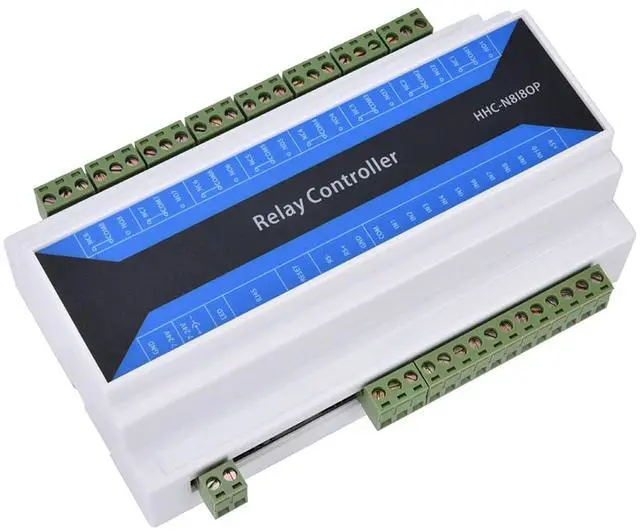

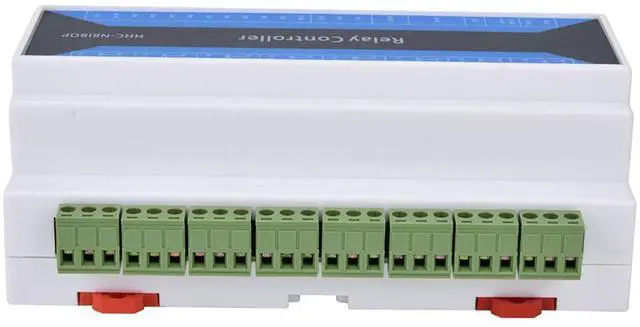

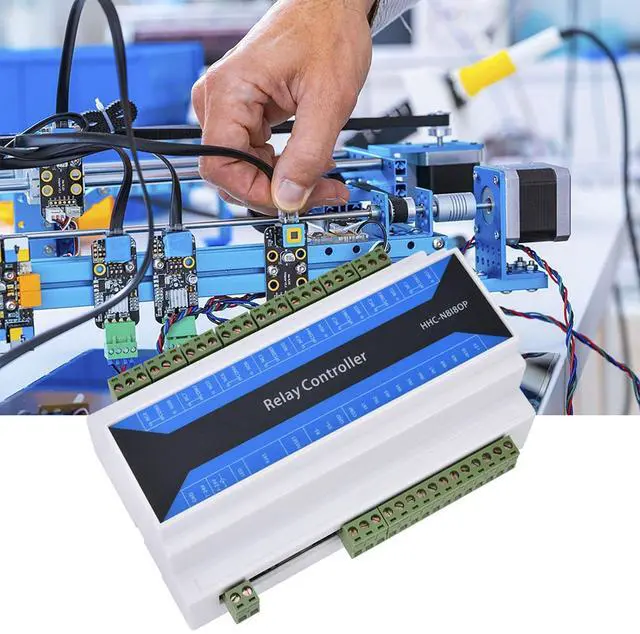

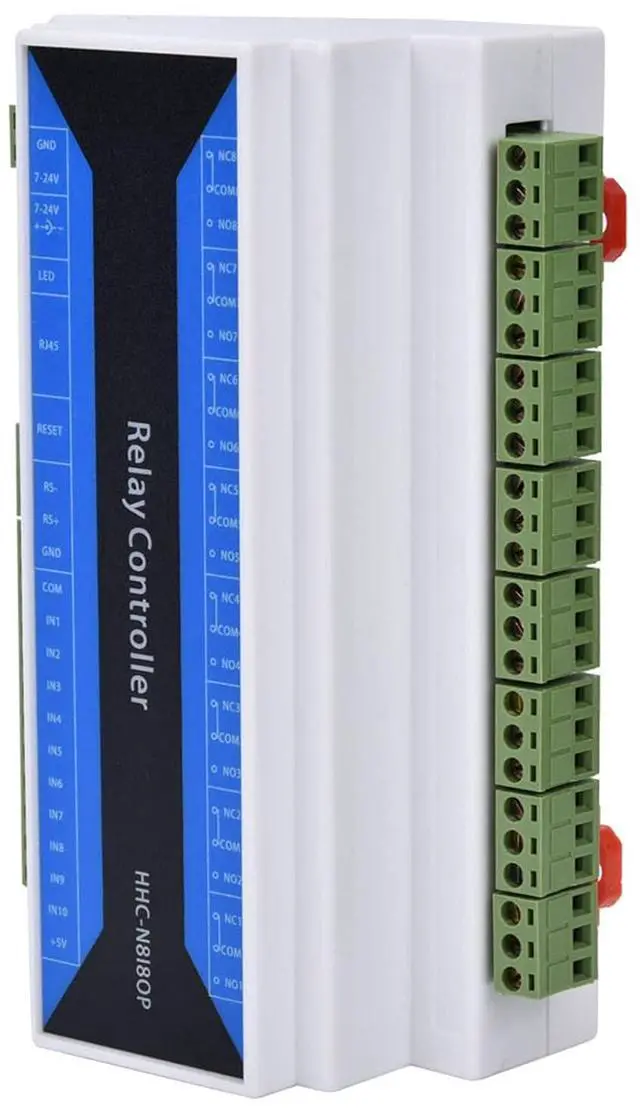

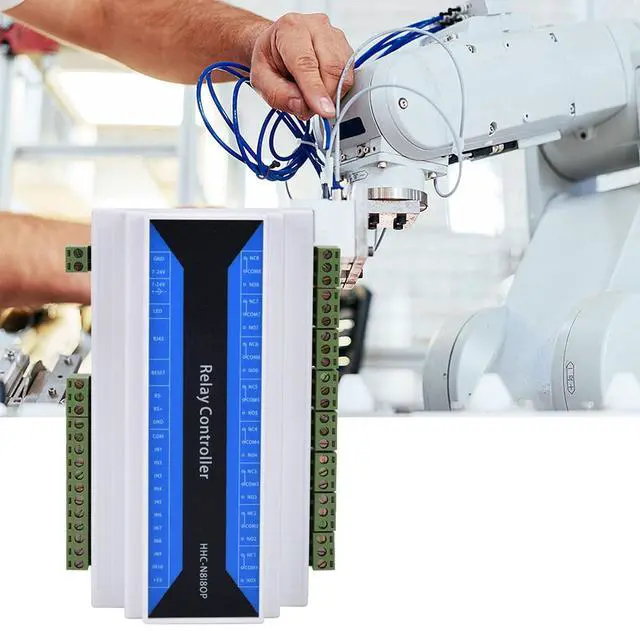

8 Channel Network Relay Module Remote Control Relay Device Ethernet to RS485 TCP Relay Module

1. Strong anti-interference ability, can be connected to external high-current AC contactor and relay, will not crash under strong electromagnetic interference.
2. The product is to high temperatures and can work in the environment of -40 to 85 ° C.
3. Industrial grade products. Support automatic acquisition of IP.
4. The true 100M speed enables communication with 0 delay commands.
5. Support 10 TCP client connections under the TCP server.
6. Through the provided configuration software, you can configure five working modes: TCP server, TCP client, UDP server, UDP client, DNS domain name.
7. 8-way relay, 8-channel digital input with full-open and full-off input. With power-down save function (save relay status).
8. With an RS485 port, it supports Ethernet to RS485 transparent .

Spec:
Item Type:Network Relay

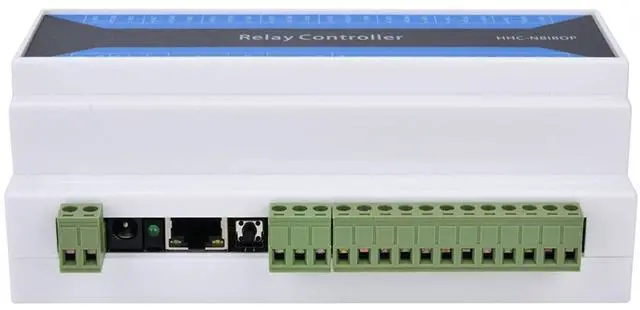

Power Supply:DC7~24V(DC socket or wiring terminal can be selected to input power.)
DC Connector Size:5.5 x 2.1mm / 0.22 x 0.08in(Outer Diameter - Inner Diameter)
Working Temperature Range:-40~85?
Users Manual:

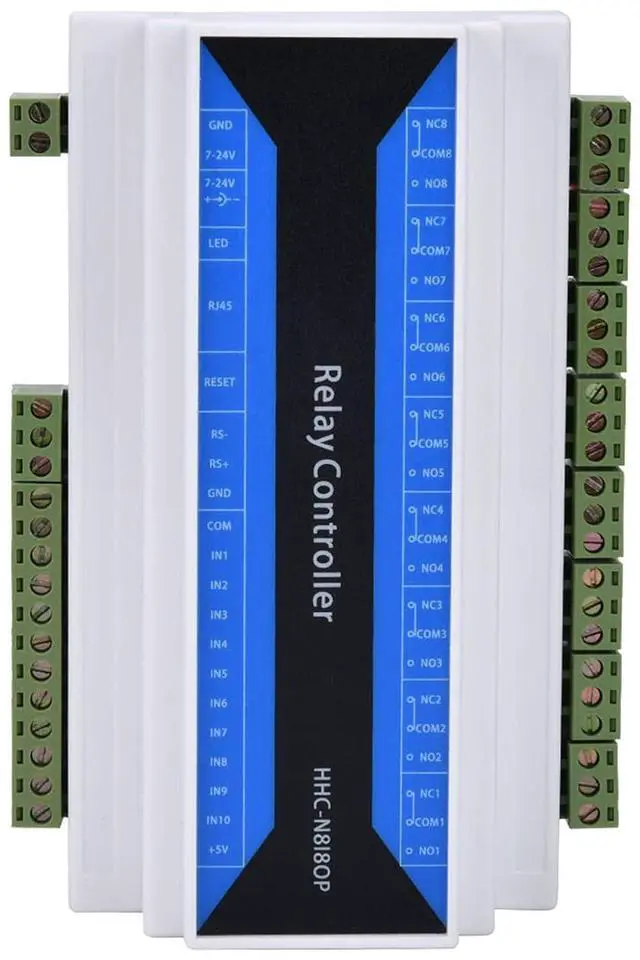

8 independent relay outputs
The output does not have voltage. The single relay has a DC rating of 10A, an AC rated current of 10A, a maximum AC rating of 250V, and a maximum DC rating of 30V.
10 channels of independent input
IN9 means full open, after IN9 has digital input, all relays are connected.
IN10 means full off. When IN10 has output, all relays are off.
The 8-input user of IN1-IN8 can be configured into three different working modes through the configuration parameter tool, and is selected under the Input Mode of the configuration tool.
In the normal input mode, the ordinary input is acquired. To obtain the input status, a command to read the input status is sent to the device.
Relay mode, after this mode has input, the corresponding relay state is reversed, and the IN1-IN8 control corresponds to the 1-8
