1000BASE Ethernet Media Converter, 2-Wire Ethernet 1000BASE-T1 to 1000BASE-TX, Automotive IEEE 1000BASE-T1 Compliant with OLED Screen

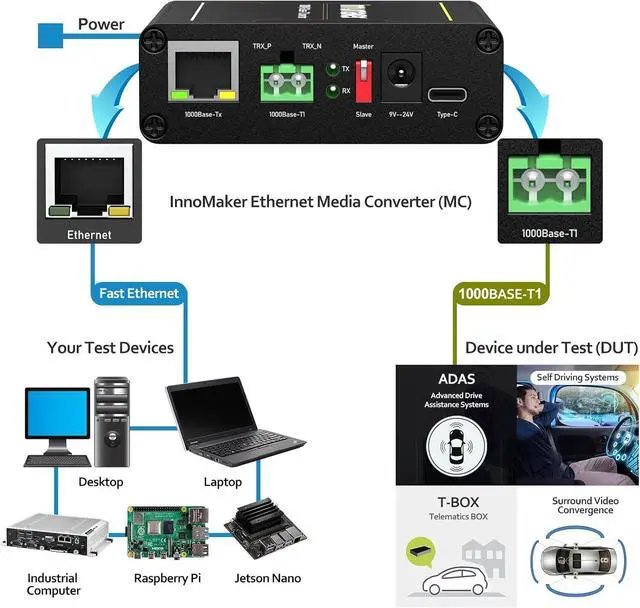

- Establishes a direct point-to-point conversion between automotive ECU's using 1000BASE-T1(1000 Mbit/s Fullduplex,) and any standard Fast Ethernet (1000 Mbit/s, 1000BASE-TX) device with an standard ethernet RJ45 connector. Only supports 1000BASE communication, not compatible with 100BASE.
- By using the AEC-Q100 qualified TI DP83TG720SWRHATQ1 IEEE 802.3bp and Open Alliance compliant automotive Ethernet physical layer transceiver, ensure a trustworthy and effective tool to customers that are looking for a cost-efficient, quick and manageable solution for testing requirements, with no latency and no packet loss.
- Comes with 1x TE MATEnet and 1x MOLEX adapter. Do not provide the over unshielded twisted pair (UTP) cables.

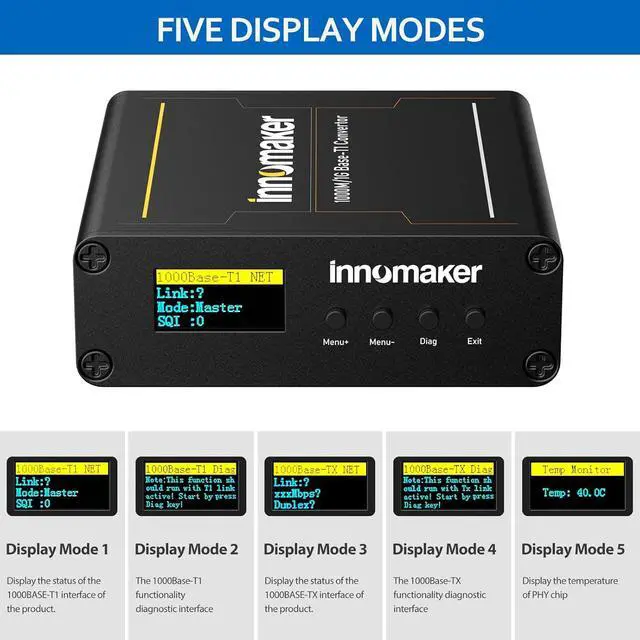

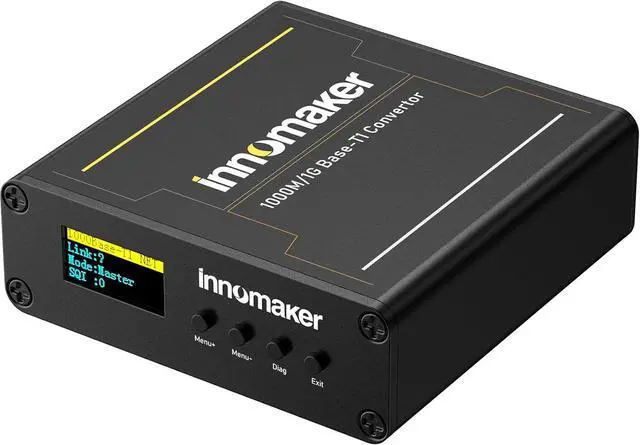

- Features with 1000BASE-T1 Master / Slave configuration and an OLED screen. Support Cable open and short fault detection.
- Plug and Play, No need to install the drivers.Data pass-through is conducted without disrupting any network protocols.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

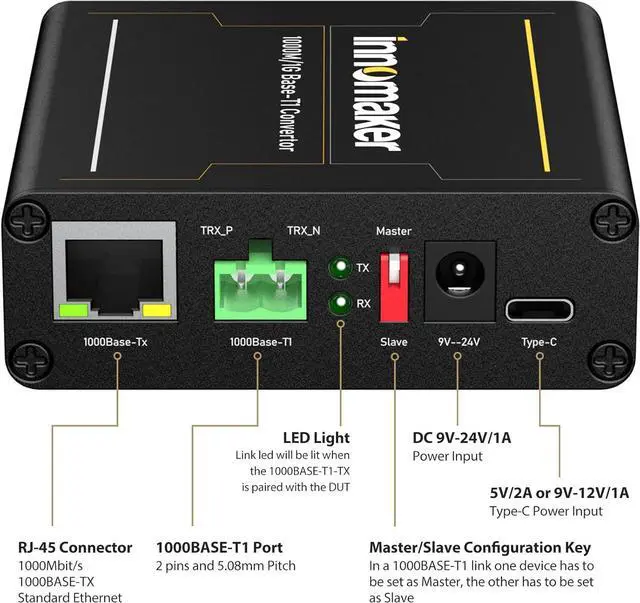

1000Mbit/s, 1000BASE-TX
Standard Ethernet
2 Pins and 5.08mm Pitch
In a 1000BASE-T1 link one device has to be set as Master, the other has to be set as Slave
Link led will be lit when the 1000BASE-T1-TX is paired with the DUT
DC power input
Type-C power input

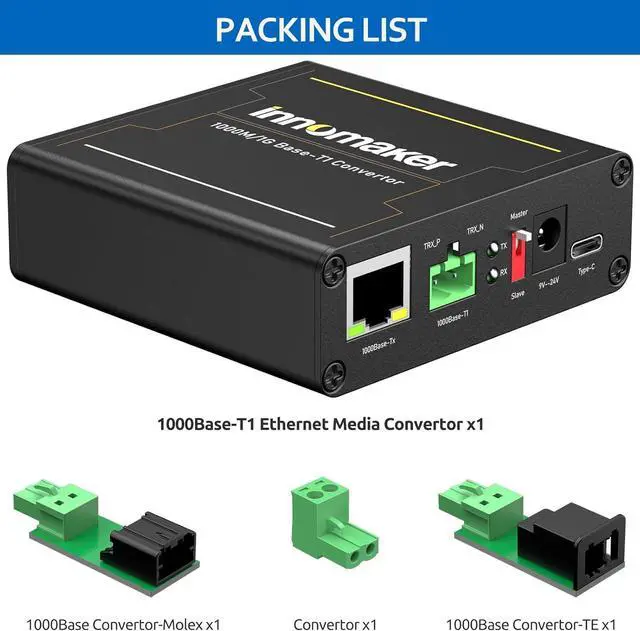

1000Base convertor-Molex x1
1000Base convertor-TE x1
Previous page
Next page RJ-45 Connector 1000BASE-T1 Port Master/Slave Configuration Key LED Light DC 9V-24V/1A 5V/2A or 9V-12V/1A MOLEX Adapter TE MATEnet Adapter USB to CAN Module Industrial Camera Module HiFi Audio Hat
Standard Ethernet
2 Pins and 5.08mm Pitch
In a 1000BASE-T1 link one device has to be set as Master, the other has to be set as Slave
Link led will be lit when the 1000BASE-T1-TX is paired with the DUT
DC power input
Type-C power input
1000Base convertor-Molex x1
1000Base convertor-TE x1
Previous page
Next page RJ-45 Connector 1000BASE-T1 Port Master/Slave Configuration Key LED Light DC 9V-24V/1A 5V/2A or 9V-12V/1A MOLEX Adapter TE MATEnet Adapter USB to CAN Module Industrial Camera Module HiFi Audio Hat
