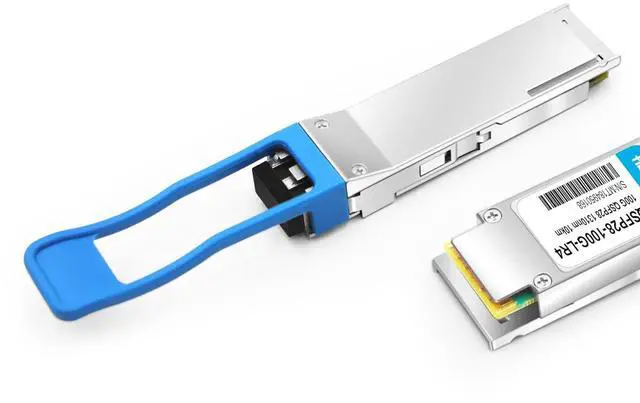

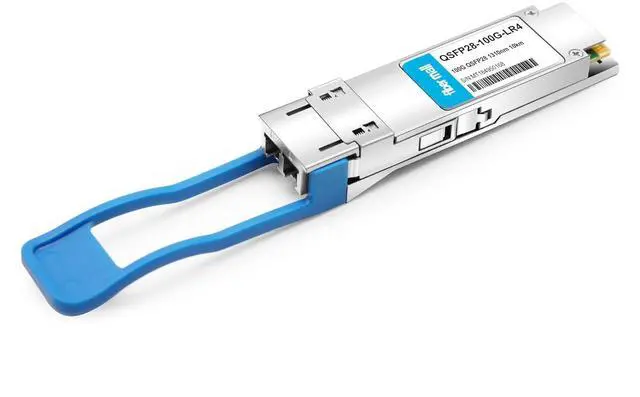

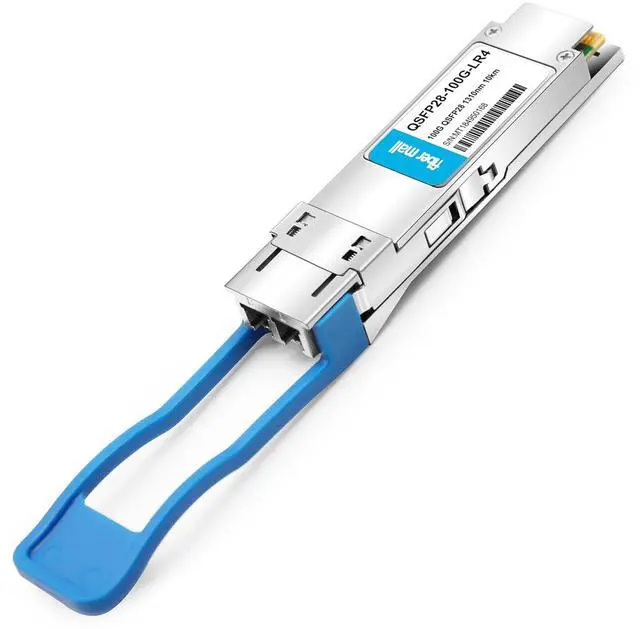

100G QSFP28 LR4 for Dell QSFP28-100G-LR4,100GBASE-LR4 QSFP28 1310nm 10km LAN WDM LC SMF DOM Optical Transceiver Module
- QSFP28 100GDell 100Gigabit Ethernet, coding asDell QSFP28-100G-LR4
- 100GBASE-LR4QSFP28 transceiver module, 100Gbps, single mode,1310nm, 10km, LC duplex connector, Hot Pluggable, support DOM
- Protocols IEEE 802.3bm 100GBASE-SR4 and CAUI-4. Digital diagnostics functions are available via the I2C interface as specified by the QSFP28 MSA.
- 3 Warranty- Enjoy Fibermall 30-Days Free-returned, 65-Days Free-replacement 5-Years Free-maintenance
- CustomizationFibermall supports regular custom service for your options
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Previous page
We provide various standard of optic communication products, OEM is welcome as well. Our high-quality product resources and solutions enable us to supply excellent SFP transceivers with wide compatibility, high stability and high performance for our global customers.
Next page 100GBASE-LR4 QSFP28 4WDM Optical Transceiver Module (1271nm,1291nm,1311nm,1331nm SMF 10km LC DDM)
The 100G QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors
The design is compliant with 100GbASE-LR4 of the IEEE802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standardITU-T G.959.1-2012-02 standard.
The module converts 4 inputs channels (ch) of 25.78Gbps to 27.95Gbps electrical data to 4 lanes of optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission.Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals and converts them to 4 lanes output electrical data
this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
Fiber Optic Transceivers 100GQSFP28 Optic Transceivers40G QSFP+ Optic Transceivers 1G-10G SFP+ Optic Transceivers Ddescription
We provide various standard of optic communication products, OEM is welcome as well. Our high-quality product resources and solutions enable us to supply excellent SFP transceivers with wide compatibility, high stability and high performance for our global customers.
Next page 100GBASE-LR4 QSFP28 4WDM Optical Transceiver Module (1271nm,1291nm,1311nm,1331nm SMF 10km LC DDM)
The 100G QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors
The design is compliant with 100GbASE-LR4 of the IEEE802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standardITU-T G.959.1-2012-02 standard.
The module converts 4 inputs channels (ch) of 25.78Gbps to 27.95Gbps electrical data to 4 lanes of optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission.Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals and converts them to 4 lanes output electrical data
this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.
Fiber Optic Transceivers 100GQSFP28 Optic Transceivers40G QSFP+ Optic Transceivers 1G-10G SFP+ Optic Transceivers Ddescription
