GLC-SX-MMD 1000BASE 1.25G SFP 550M MMF 850nm LC SFP Transceiver(1 pc)

Fiber Optic Products / Fiber Optic Receivers

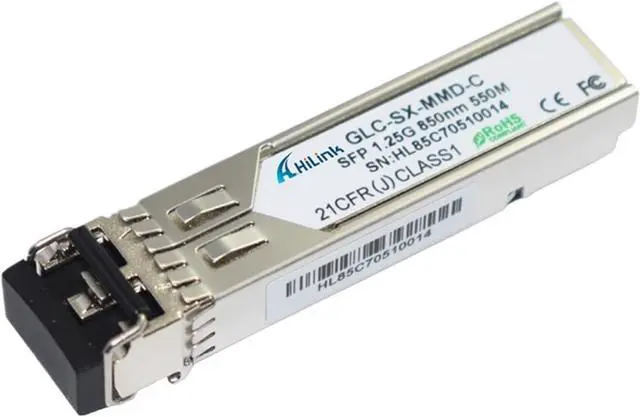

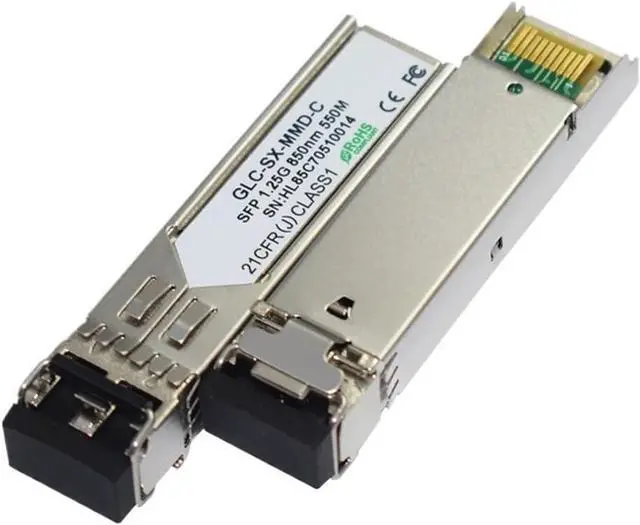

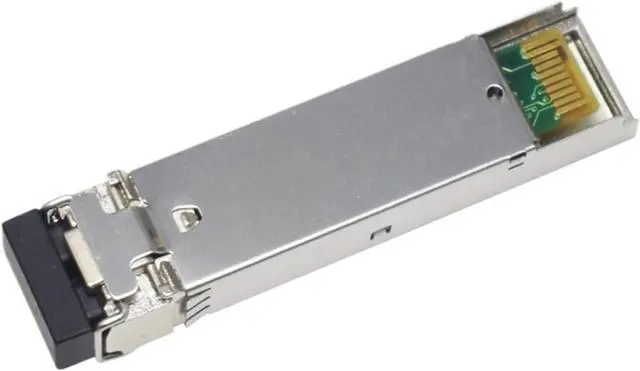

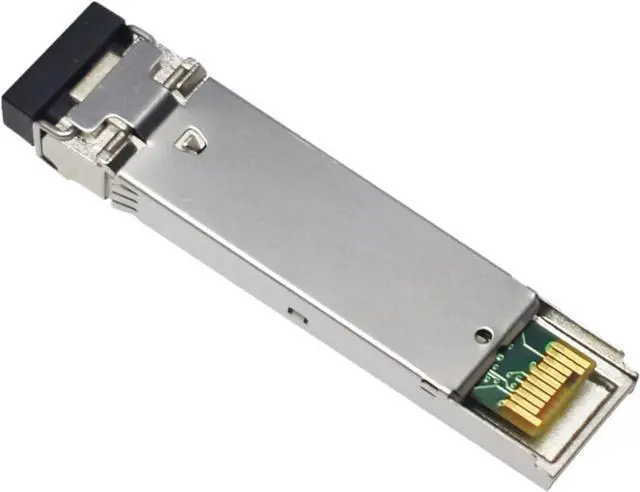

GLC-SX-MMD 1000BASE 1.25G SFP 550M MMF 850nm LC SFP Transceiver
General
Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (). They simultaneously comply with 1.25Gb/s 1000Base-SX Ethernet .063Gb/s Fiber Channel. They are compliant and lead-free.
Features
-pluggable SFP footprint
850nm VCSELlaser transmitter
compliant and
Up to 550m on 50/125µm MMF,500m on 62.5/125µm MMF
Metal enclosure for lower EMI
Single +3.3V power supply
<;;600mW
Commercial operating temperaturerange:0°C to+70°C
Applications
1.25Gb/s 1000Base-LX Ethernet
1.06 Gb/s Fibre Channel
GigabitEthernetSwitchesandRouters
FiberChannel SwitchInfrastructure
When bidding the product, please leave message for your switch .
1.25G SFP Transceivers
GLC-SX
100BASE-SX SFP 850nm LC 550M
GLC-LX/LH
100BASE-LH SFP 1310nmLC 10KM
GLC-EX-1310
100BASE-EX SFP 1310nm LC 40KM
GLC-EX-1550
100BASE-EX SFP 1510nm LC 40KM
GLC-ZX
100BASE-ZXSFP 1550nm LC 80KM
GLC-ZX-120
100BASE-ZX SFP 1510nm LC 120KM
GLC-ZX-160
100BASE-ZX SFP 1550nm LC 160KM
GLC-ZX-200
100BASE-ZX SFP 1510nm LC 200KM
Product Show
Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)Osptical Characteristics (TOP=25°C, Vcc=3.3 Volts)
Parameter
Symbol
Min
Typ
Max
Unit
Ref.
Transmitter
Output Opt. Power
PO
-9
- -3
dBm
1
Optical Wavelength
830
850
860
nm
Spectral Width
- - 0.85
nm
Side Mode Suppression Ratio
SMSR
30
- - dB
Optical Rise/Fall Time
tr/tf
- - 175
ps
2
Deterministic Jitter Contribution
TXDJ
- - 0.07
UI
3
Total Jitter Contribution
TXTJ
- - 0.007
UI
Optical Extinction Ratio
ER
9 10
- dB
Receiver
Average R
