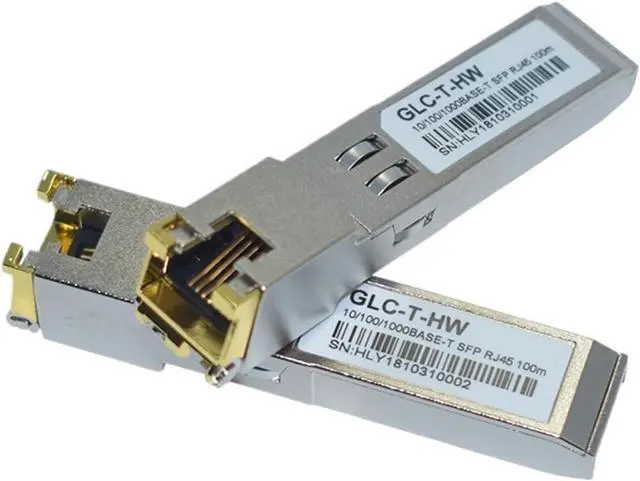

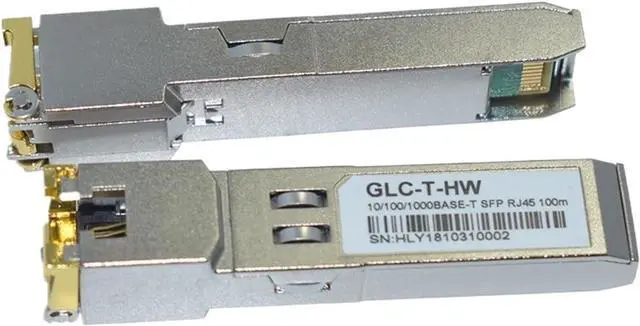

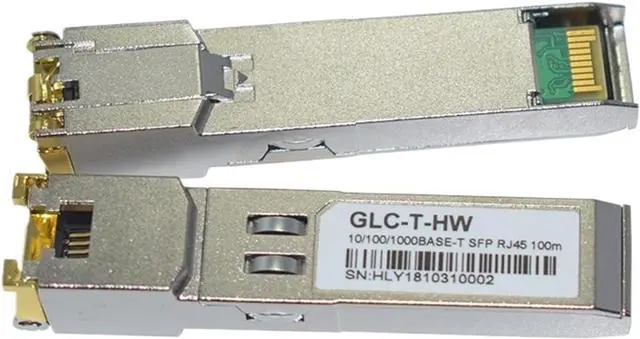

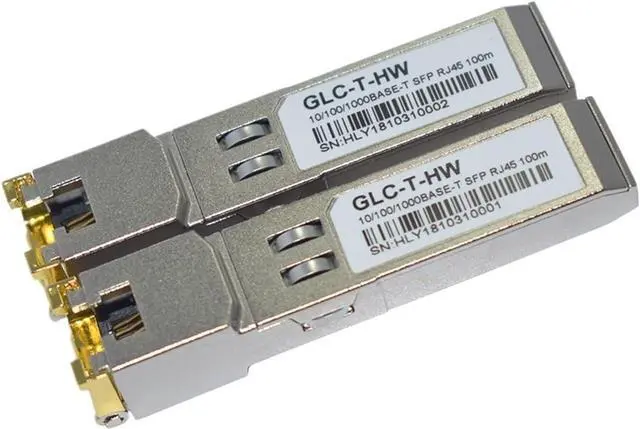

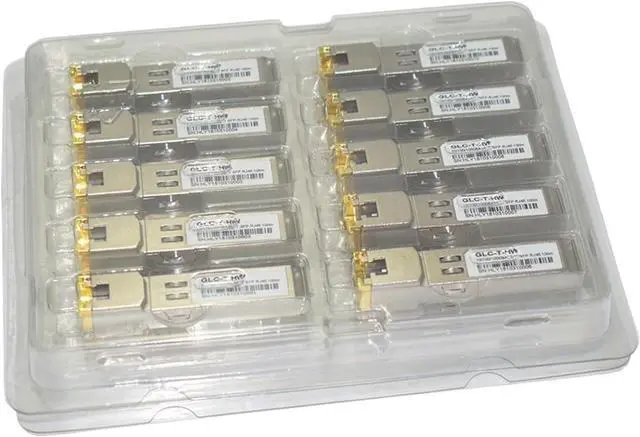

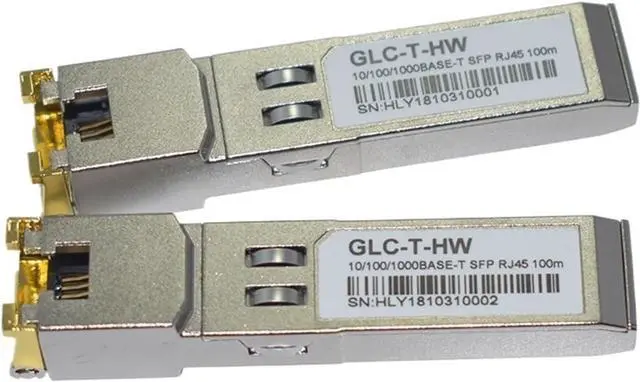

1000Base-T Gigabit RJ45 Copper SFP GLC-T/SFP-GE-T Fiber Optical Transceiver with RJ45 Connector

Fiber Optic Products / Fiber Optic Receivers
1000Base-T Gigabit RJ45 Copper SFP GLC-T/ SFP-GE-T Fiber Optical Transceiver With RJ45 Connector
Product Feature
Compliant with SFP specification
Compliant with IEEE 802.3 1000BASE-T specification
Supports 1000BASE-X without clock with 1000BASE-X auto-negotiation to copper
Die cast metal housing
Single +3.3V power supply
Serial ID functionality
Bail latch style ejector mechanism
TDR functionality support
Auto MDI/MDIX crossover
Shunt Auto
Compatible with 5 cable in excess of 100M in length
SFP 1000BASE-X Auto Negotiation Bypass Mode
Application
Gigabit Ethernet
Gigabit Ethernet SFP Transceiver
GLC-BX-D=
1000BASE-BX10 SFP for single-strand SMF, 1490-nm TX/1310-nm RX wavelength, single LC/PC connector
GLC-BX-U=
1000BASE-BX10 SFP for single-strand SMF, 1310-nm TX/1490-nm RX wavelength, single LC/PC connector
GLC-2BX-D=
Dual-channel 1000BASE-BX10 SFP for single-strand SMF, 1490-nm TX/1310-nm RX wavelength, two single LC/PC connectors
SFP-GE-S=
1000BASE-SX SFP transceiver for MMF, 850-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector
SFP-GE-L=
1000BASE-LX/LH SFP transceiver for MMF and SMF, 1300-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector
SFP-GE-Z=
1000BASE-ZX SFP transceiver for SMF, 1550-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector
SFP-GE-T=
1000BASE-T SFP transceiver for Category5 copper wire, extended operating temperature range, RJ-45 connector
Part Number
Description
GLC-T=
1000BASE-T SFP transceiver for Category5 copper wire, RJ-45 connector
GLC-SX-MM=
1000BASE-SX SFP transceiver for MMF, 850-nm wavelength, dual LC/PC connector
GLC-LH-SM=
1000BASE-LX/LH SFP transceiver for MMF and SMF, 1310-nm wavelength, dual LC/PC connector
GLC-ZX
