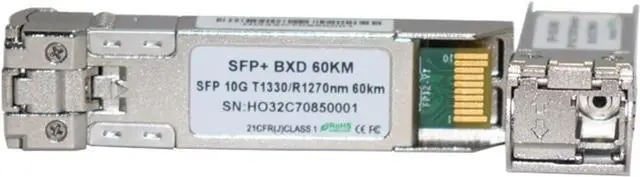

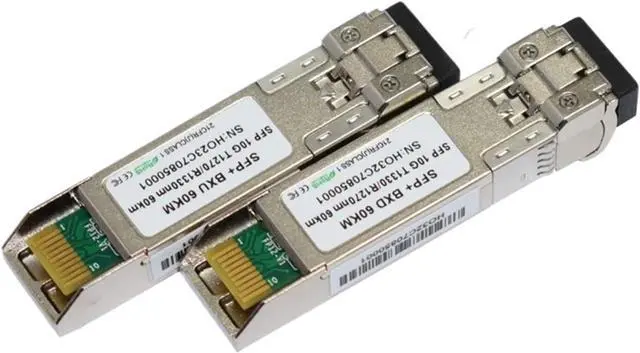

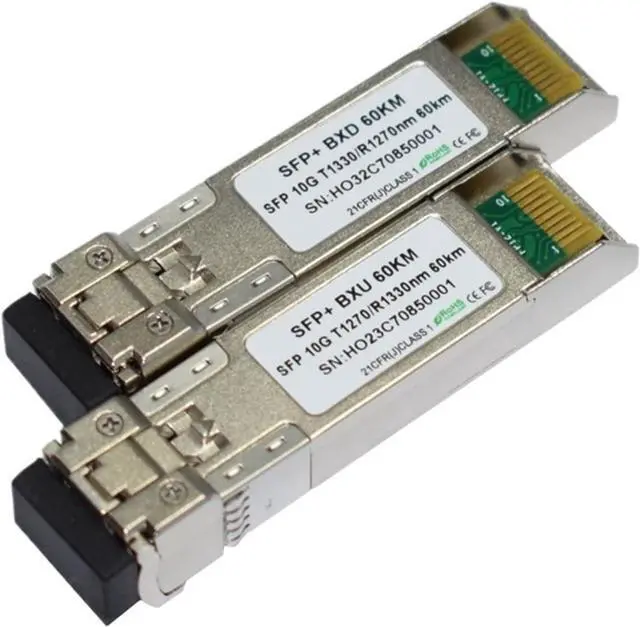

GBIC Transceiver Single Fiber WDM 10G SFP+ 60Km 1270/1330nm with LC Connector DOM

Fiber Optic Products / Fiber Optic Receivers
WDM SFP 10G SFP 60Km 1270/1330nm with LC Connector DDM
Tx: 1270nm/ Rx: 1330nm SFP+ Transceiver for 10GbE
Tx: 1330nm/ Rx: 1270nm SFP+ Transceiver for 10GbE
Features
Operating data rate up to10.3Gbps
Type: 1330nmDFB Tx/1270nmRx 1270nmDFB Tx/1330nmRx
1270nm DFB Transmitter/ 1330nm Receiver
Distance up to 40km
Power budget 9dB at least
Single 3. 3V Power supply and TTL Logic Interface

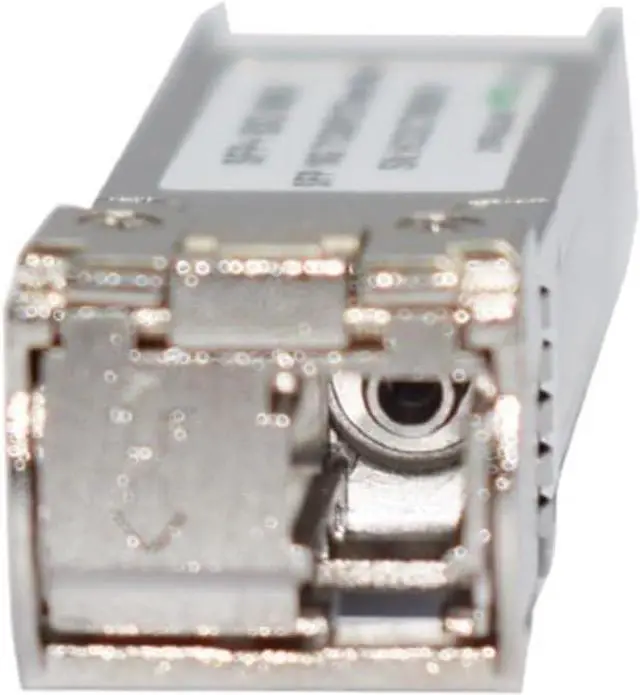

Simplex LC Connector Interface
Pluggable
Operating Case Temperature
Standard: 0°C~+70°C
Industrial:-40°C~+85°C
Compliant with SFP Specification
DDM function
Applications
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other Optical Links
10G SFP
SFP+ 10G
Part NO.
Data Rate
Wavelength
Connector
Output Power
Sensitivity
Notes
TX/RX(nm)
HLB223X2-LCD10/20
10Gbps
1270/1330
10-40km
DFB+PIN
-7~0.5dBm
-14.4dBm
DDM
HLB232X2-LCD10/20
10Gbps
1330/1270
10-40km
DFB+PIN
-7~0.5dBm
-14.4dBm
B/D Transceiver Series:
GLC-BX-D20 SC
1.25G DFB Tx1490nm/Rx1310nm 20km LC/SC
GLC-BX-U20 SC
1.25G FP Tx1310nm/Rx1490nm 20km LC/SC
GLC-BX-U40 SC
1.25G DFB Tx1310nm/Rx1490nm 40km LC/SC
GLC-BX-D40 SC
1.25G DFB Tx1490nm/Rx1310nm 40km LC/SC
GLC-BX-U70 SC
1.25G DFB Tx1490nm/Rx1550nm 70km LC/SC
GLC-BX-D70 SC
1.25G DFB Tx1550nm/Rx1490nm 70km LC/SC
GLC-BX-U80
1.25G DFB Tx1490nm/Rx1550nm 80km LC/SC
GLC-BX-D80
1.25G DFB Tx1550nm/Rx1490nm 80km LC/SC
GLC-BX-U120
1.25G DFB Tx1490nm/Rx1550nm 120km LC/SC
GLC-BX-D120
1.25G DFB Tx1550nm/Rx1490nm 120km LC/SC
GLC-FE-100BX-U
100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 10km
GLC-FE-100BX-D
100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 10km
GLC-FE-
