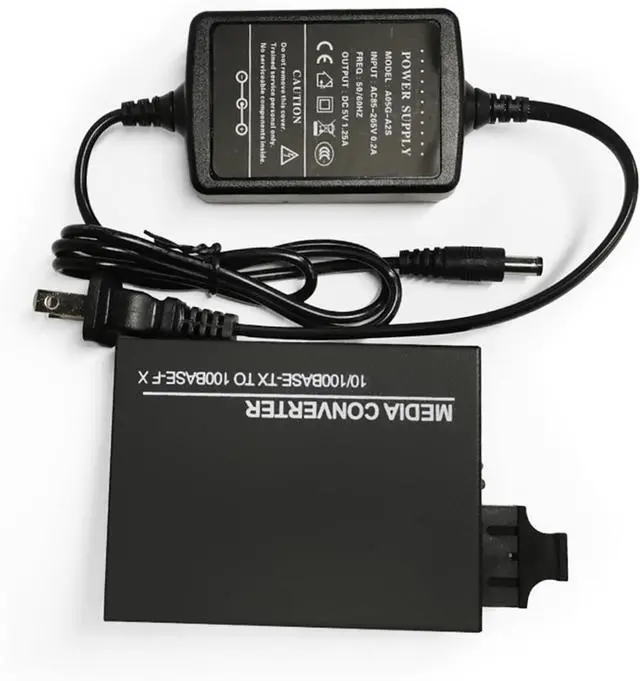

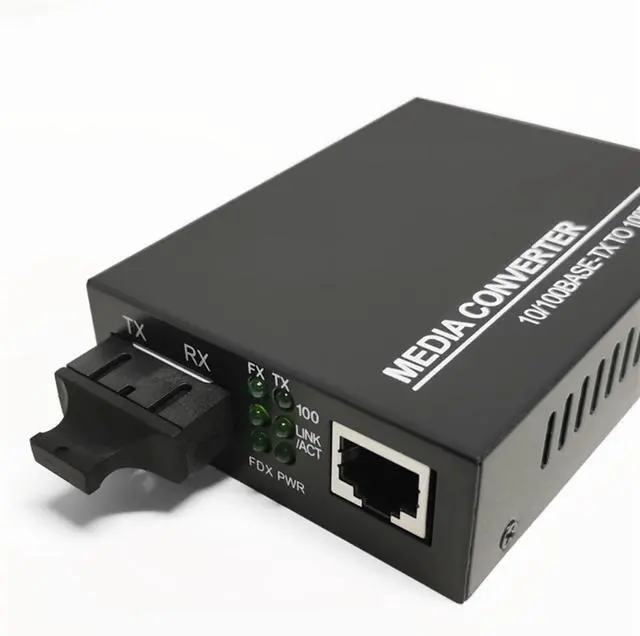

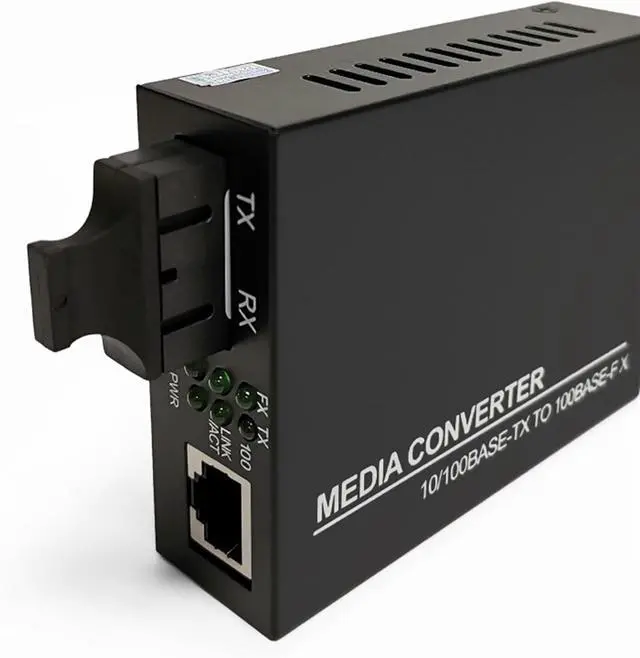

2 TLG-F110SM-2 Rack-Mounted converters 2KM1 Optical 1 Electrical 100M Dual-Fiber Multi-Mode Optical Fiber transceiver
- network-transceivers
- Model: TLG-F110SM-2
- Interface type: SC port
- Cable type: fiber optic, cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
network-transceivers
Transmission distance: 2
Transmission method: optical fiber transmission
Emission wavelength: TX1310
Transmit power: -8
Voltage input: DC5V
Size: 95*70*25mm
Interface (Provider Mode Ports)
Business interface (Fixed port)
1*100 Base-X, 1*10/100 Base-T
Power interface
DC interface
LED lights (LED Indicators)
PWR, Link/ACT LED
Cable type&Transmission distance
Twisted-pair
0-100mCAT5e,CAT6
Multimode optical fiber
2KM
Electrical Specifications
input voltage
DC5V
Total Power consumption
<;4W
Environmental conditions (Environment)
Operating temperature
-20~+70
Storage temperature
-20~+70
Relative humidity
5%~95% does not support condensation (non-condensing)
Thermal methods
Fanless design, natural heat dissipation
MTBF
100,000 hours
Mechanical Dimensions
Product size
95x71x26.5mm
Installation Method
Wall-mounted
Weight
0.3KG*2
Transmission distance: 2
Transmission method: optical fiber transmission
Emission wavelength: TX1310
Transmit power: -8
Voltage input: DC5V
Size: 95*70*25mm
Interface (Provider Mode Ports)
Business interface (Fixed port)
1*100 Base-X, 1*10/100 Base-T
Power interface
DC interface
LED lights (LED Indicators)
PWR, Link/ACT LED
Cable type&Transmission distance
Twisted-pair
0-100mCAT5e,CAT6
Multimode optical fiber
2KM
Electrical Specifications
input voltage
DC5V
Total Power consumption
<;4W
Environmental conditions (Environment)
Operating temperature
-20~+70
Storage temperature
-20~+70
Relative humidity
5%~95% does not support condensation (non-condensing)
Thermal methods
Fanless design, natural heat dissipation
MTBF
100,000 hours
Mechanical Dimensions
Product size
95x71x26.5mm
Installation Method
Wall-mounted
Weight
0.3KG*2
