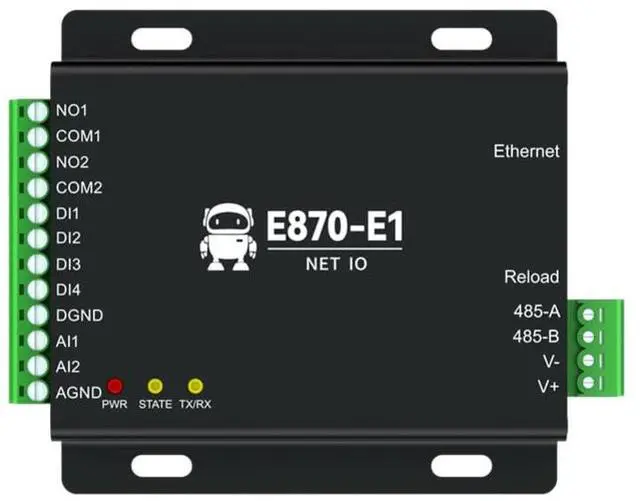

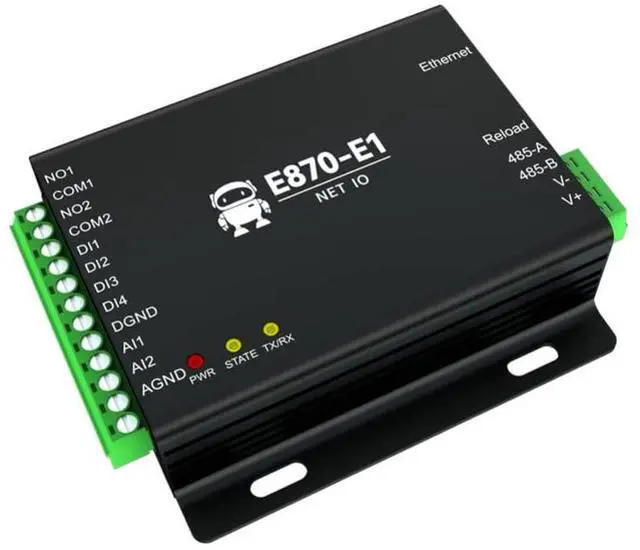

Ethernet Edge Acquisition Gateway IO Controller RS485+4DI+2DO+2AI E870-E1 Remote Control Modbus TCP RTU MQTT DNS
- Support "Ebyte" Cloud Device Communication Protocol" open protocol; Support remote management of Ebyte cloud platform Support edge acquisition and control 20 Modbus RTU data point
- Support change reporting, periodic reporting and other reporting methods; Supports adding edge computing formulas to upstream and downstream data; Support Alibaba Cloud IoT model JSON protocol reporting; Automatic 10/100M Ethernet interface

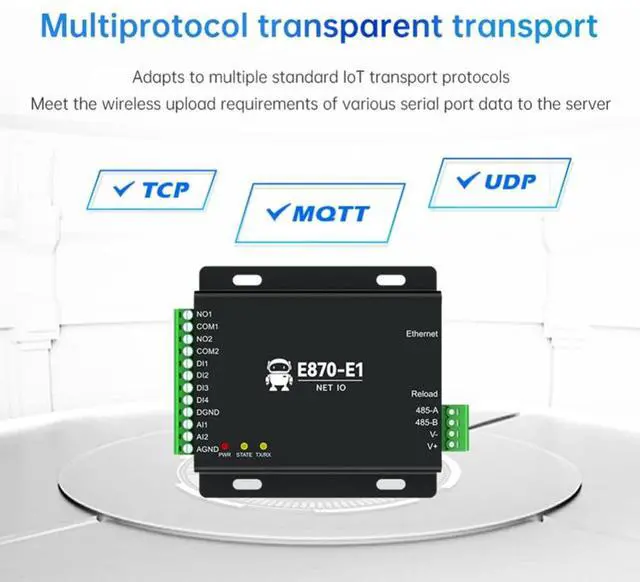

- Support 4-way Socket independent connection to user-defined server; Support TCPC, UDPC, MQTT3.1.1 protocol; Support registration package and heartbeat package; Support various configuration methods such as Ebyte cloud platform, host computer, network, etc.
- Support 4-way Socket independent connection to user-defined server; Support TCPC, UDPC, MQTT3.1.1 protocol; Support registration package and heartbeat package; Support various configuration methods such as Ebyte cloud platform, host computer, network, etc.
- Support as an RTU device to parse the host Modbus RTU comman
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
[Transmission method]Ethernet
[Working voltage] DC8~28V
[Communication interface]RS485
[Product size]80*85mm
[Introduction]E870-E1 is an Ethernet cloud I0 gateway developed based on the communication protocol "Ebyte Cloud Device Communication Protocol" developed by our company. It can send commands to the device through the server to achieve control or collection functions, and open 4-way switch value collection on the device. , 2-way analog (0-20/4-20mA) acquisition, 2-way A-type relay output, support multiple protocols (TCP, UDP, MQTT) access to the server, support heartbeat package, registration package settings; at the same time the product supports Multiple configuration methods, support web platform; support acquisition and control edge RTU nodes, can also be used as RTU equipment to analyze Modbus command acquisition and control equipment IO; adopt industrial design standards to ensure high reliability of equipment.
[Working voltage] DC8~28V
[Communication interface]RS485
[Product size]80*85mm
[Introduction]E870-E1 is an Ethernet cloud I0 gateway developed based on the communication protocol "Ebyte Cloud Device Communication Protocol" developed by our company. It can send commands to the device through the server to achieve control or collection functions, and open 4-way switch value collection on the device. , 2-way analog (0-20/4-20mA) acquisition, 2-way A-type relay output, support multiple protocols (TCP, UDP, MQTT) access to the server, support heartbeat package, registration package settings; at the same time the product supports Multiple configuration methods, support web platform; support acquisition and control edge RTU nodes, can also be used as RTU equipment to analyze Modbus command acquisition and control equipment IO; adopt industrial design standards to ensure high reliability of equipment.
