CAN Fiber Bus Converter CAN to Fiber CAN Optical cat CAN Optical transceiver CAN Bus CANbus - (Color: D-Mode Dual core)

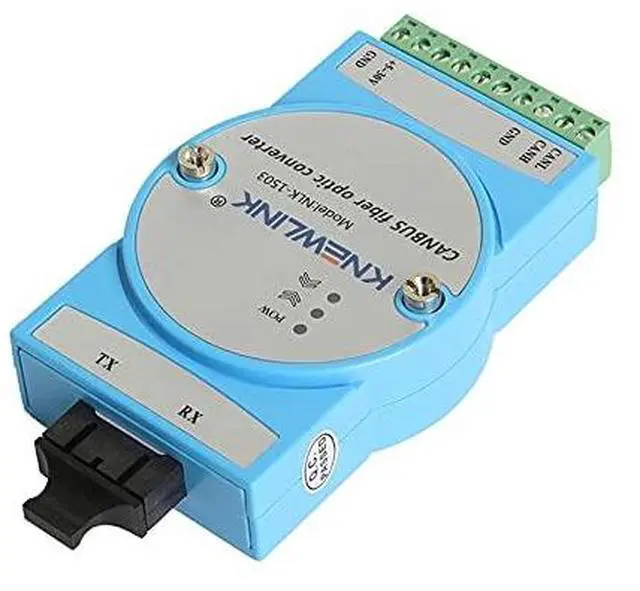

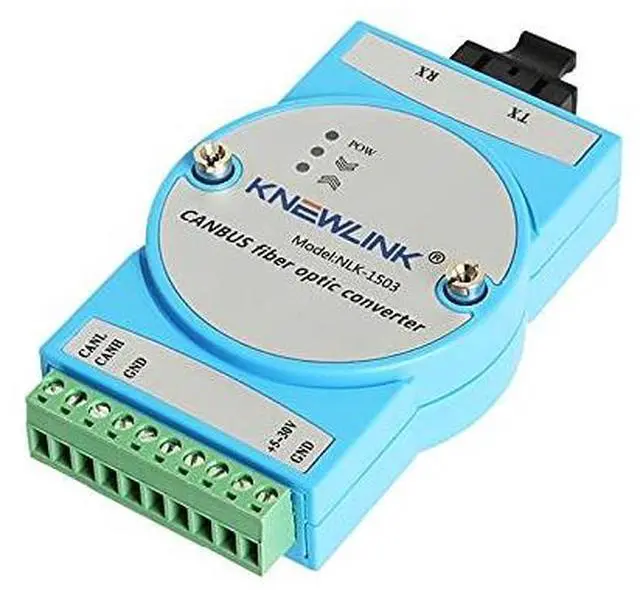

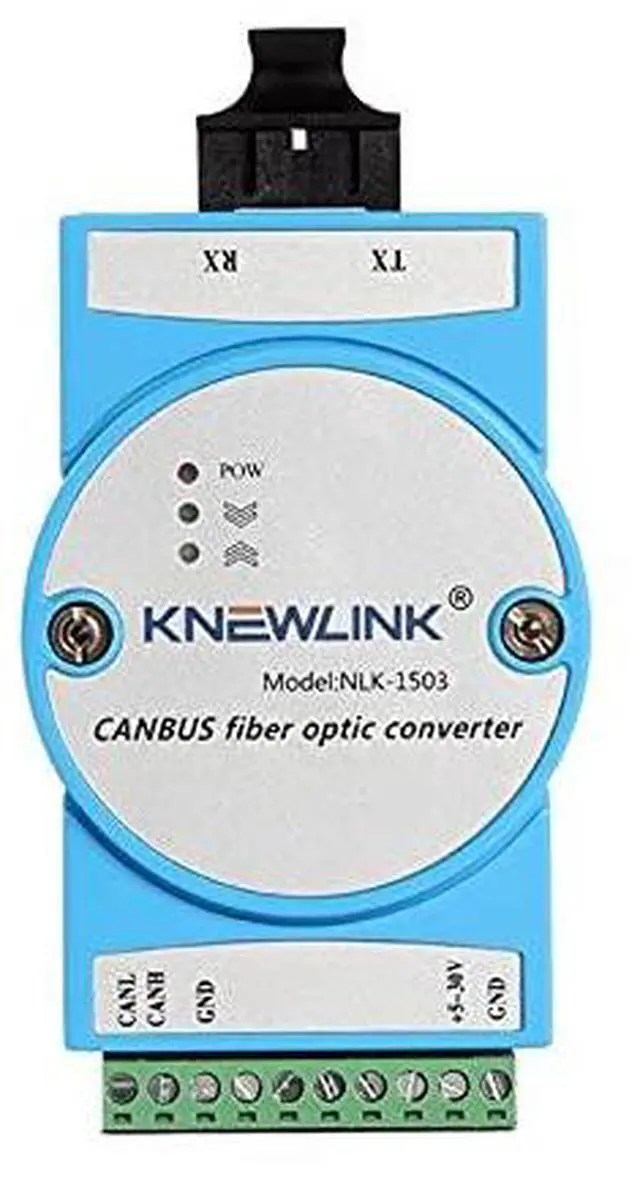

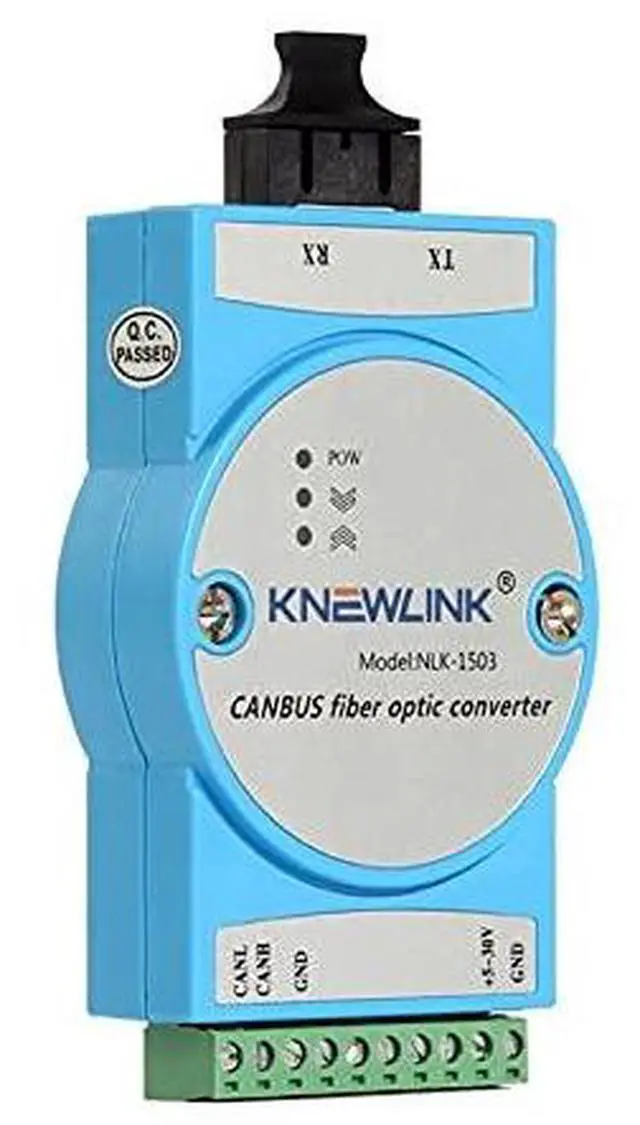

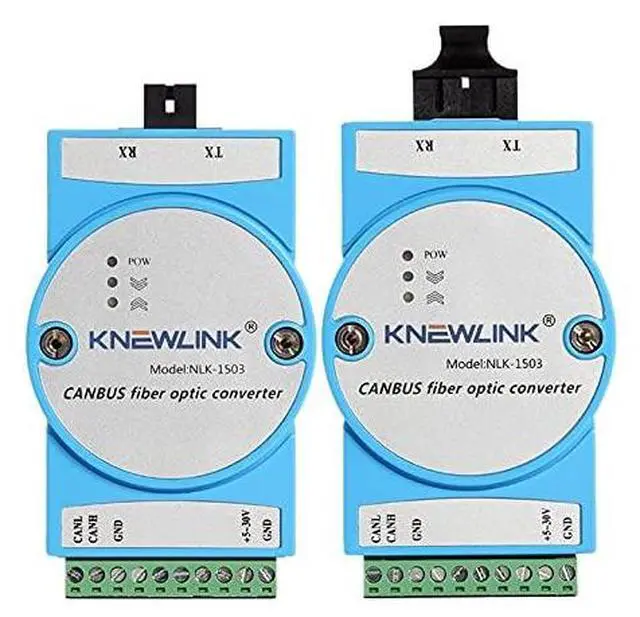

NLK-1503 optical fiber converter realizes the conversion of CAN-BUS bus signals into optical signals for transmission on optical fiber. This product has the function of extending the communication distance of CAN-BUS bus. At the same time, the use of optical fiber communication solves electromagnetic interference and ground loop interference The problem of lightning and lightning destruction has greatly improved the reliability, security and confidentiality of data communication, transparent communication without any settings, suppression of transient interference on CAN-BUS data lines, communication rate of 200KBPS, power and data flow indicators Instructions for troubleshooting, can be widely used in various industrial control, process control and traffic control, electricity and departments and systems with special requirements for electromagnetic interference environment.
Features
Automatically identify the signal flow direction, and automatically forward with zero delay.
Relay distance 0-10KM, communication baud rate adaptive from 0-200KBPS.
Built-in 600W / MS anti-lightning protection and 15KV anti-static protection.
Industrial design, optimized imported components, all surface mount technology
Rail-mounted, wall-mounted installation
D single-mode / multi-mode optional
Single core / double core optional
SC / ST / FC interface optional
Product information
Transmission distance: single-mode: 10KM, multi-mode: 2KM
CAN interface: industrial ten PIN terminal blocks
Optical fiber interface: SC / ST / FC optional single fiber / double fiber optional
Static protection: ESD 15KV electrostatic protection
Lightning protection: 600W / MS
Input voltage: DC5 ~ 30V / 350ma
Communication speed: 0-200Kbps
Working temperature: -40 ~ 85
Appearance size: 120 * 70 * 26MM
Installation: DIN card rail type, wall mount optional
Communication distance table:
