Outdoor Wireless Bridge, Point to Point WiFi Bridge, 2.4GHz 500M-1KM Distance, 2X 100Mbps Ethernet Port, 24V PoE Adapter, 2 Pack

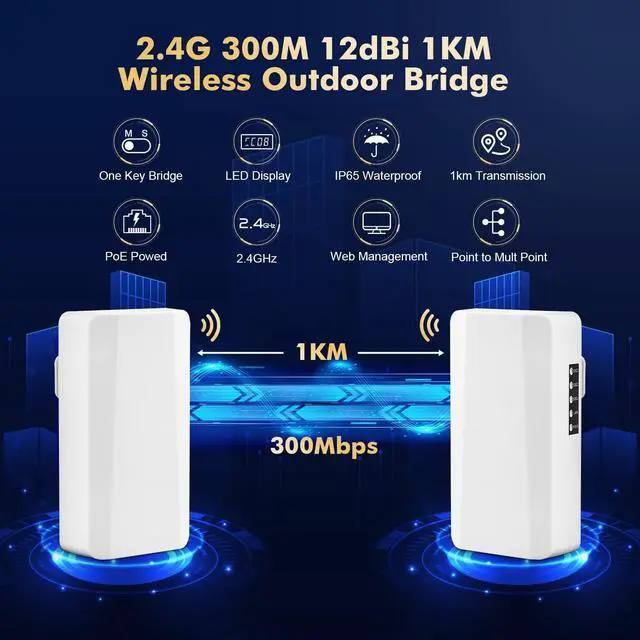

CPE300 is a long range high performance 802.11ac outdoor CPE with 300Mbps data rate. Comply with IEEE 802.11b/g/n/ac standard, 12dBi dual polarized high gain antenna,the PTP/PTMP distance is more than 3000 meters.
It support Wireless AP, Wireless Bridge operation mode for PTP/PTMP connections, with operation switch on device, easy to setup CPE300s operation mode, no need to access into GUI, avoid the complex setup program, then simple to view the signal strength by LED signal lights, save much human work and cost, make the long range wireless coverage, data transmit and wireless monitoring simple and professional.
CPE300 with ABS waterproof, dustproof and sunscreen shell, temperature adaptive also; Meantime, it support 24V PoE and DC input and surge protection, ideal for outdoor use.
Please note that it is not a wifi repeater directly, the main bridge needs to be connected to the upstream network through a network cable, the master and slave bridges are transmitted through wireless signals, and the slave bridge can be accessed through a network cable or wifi. It can also be set to AP mode and used alone for wifi access, which needs to be set in the web management interface

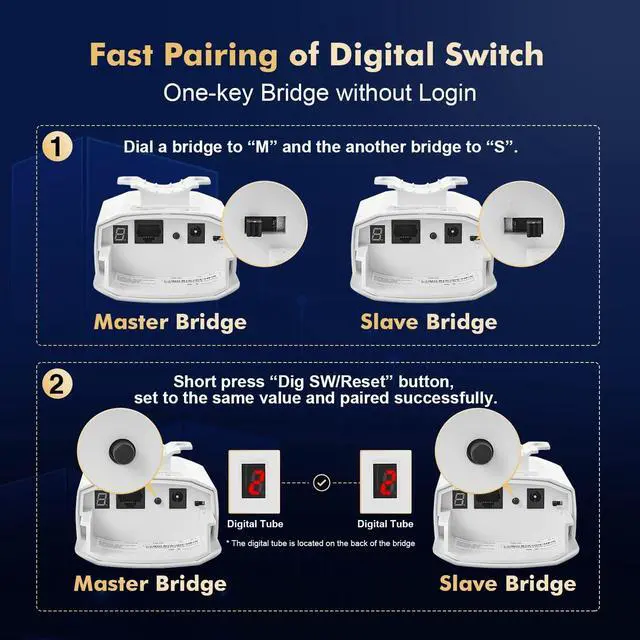

One to one pairing method
1. Dial a bridge to "M" and another bridge to "S".
2. Short press "Dig SW/ Reset" button, each digital tube value will add one (0-9-A-F cycle).
3. The paired bridge is set to the same value and can be paired successfully.
One to multiple pairing method
1. Dial a bridge to "M" and the other bridge to "S".
2. Short press "Dig SW/ Reset" button, each digital tube value will add one (0-9-A-F cycle).
3. The paired bridge is set to the same value and can be paired successfully.
CPE300 with full frequency of 2.300GHz ~ 2.4835GHz, more than 50 channels available, it avoid the frequency interference problem, the PTP/PTMP distance is more than 1000 meters, full meet with data transmission in fast speed, low delay, high stability requirement in wireless security or data transmission.

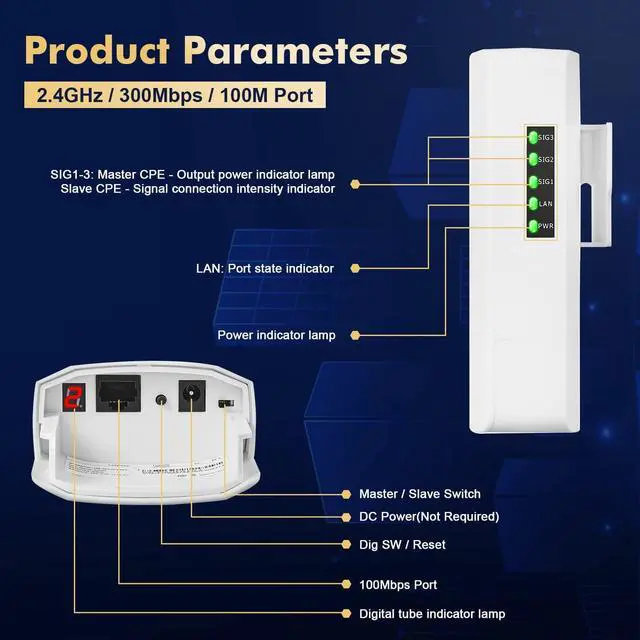

With visible LED display to show channels, then with M/ S button, press it to the same value for quickly point to point and point to multi-point wireless connection, simple to install and degu, cost saving.

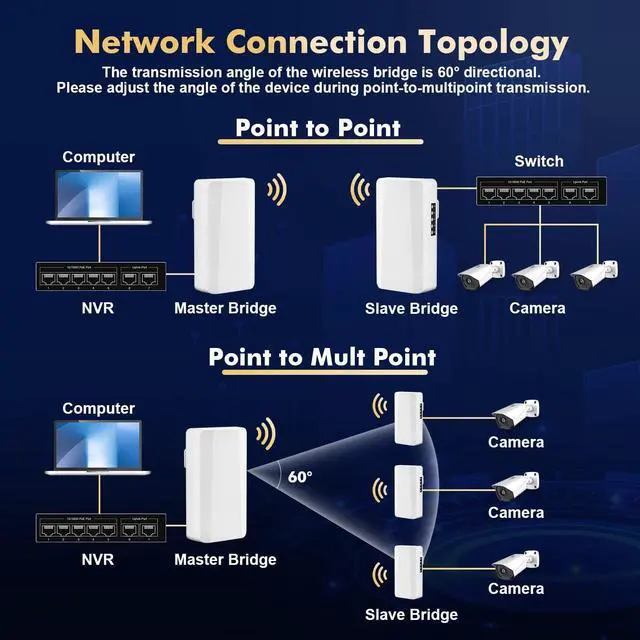

One to multiple point connection allows users to connect multiple wireless bridge together. As such, two or more locations are able to use multi bridge in order to share a single internet connection, which can allow them to share data across that shared network.

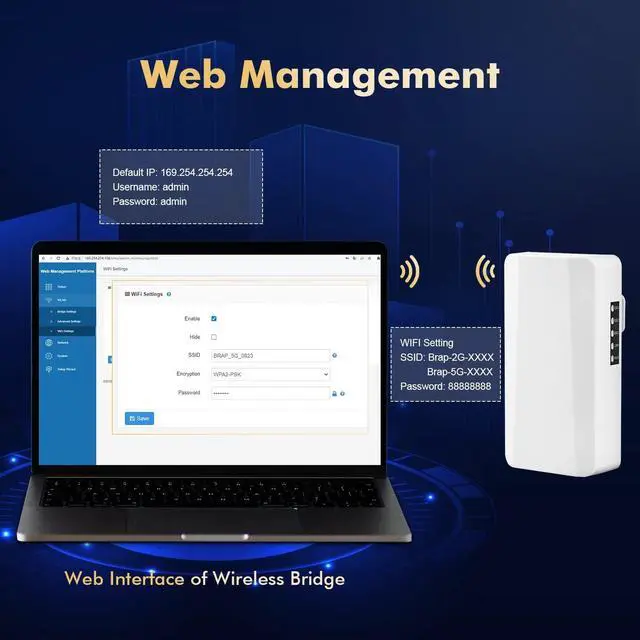

You can easily use the web interface to set up the network, wifi, to meet your personalized needs. The default IP is 169.254.254, the password is 88888888

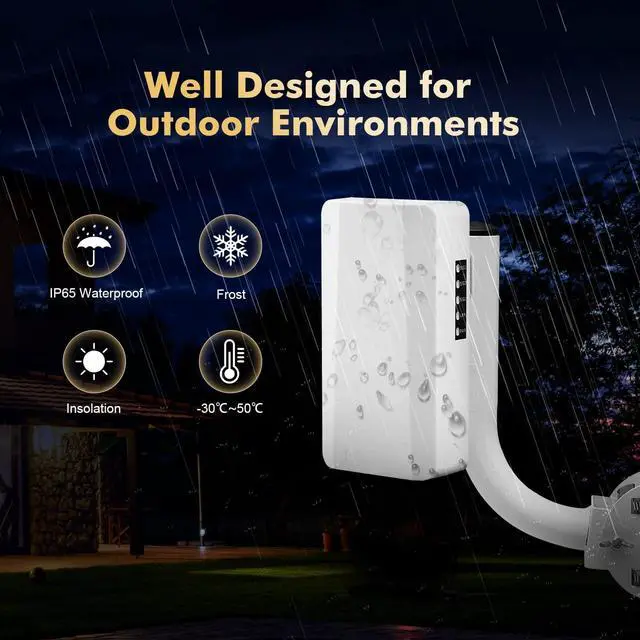

CPE300 with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40 to 55. Suit for any country.
CPE300 has integrated passive 24V PoE, for easy installation and lower cost. It can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Product ModelCPE300CPUMTK7628KN 300Mbps (580MHz DDR:550MHz Ref:40MHz)Flash1MBMemory8MB DDR RAMInterface2*10/100 Mbps RJ45 PortsButton1* Digital switch / reset button, Short press - each digital tube value will add one (0-9-A-F cycleIndicator LampSignal indicator, Port state indicator lamp, Power indicator lampPower Supply24V 1A passive PoE; DC 12V 1A, power consumption <10WWork EnvironmentNormal operating temperature: -30°C to 55°C;storage temperature: -40°C to 70°C;humidity: 10%~90% (no condensation)Built-in Antenna12dBi antenna(horizontal angle is 60°, vertical angle is 60°)ModemOFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCKOutput Power11a @54M:25±2DB, @6M:27±2DB 11n @MCS7:23±2DB,@MCS0:25±2DBFrequency2.300GHz ~ 2.4835GHzChannels2.4G12345678910111213 323337384243 Operating ModeMaster AP, Sla
