Gigabit 4-Port PoE Switch/Extender Outdoor IP65 Waterproof PoE Passthrough/PoE Amplifier/PoE Booster,60W 48V 10/100/1000Mbps. IEEE 802.3af/at/bt Compliant,by ThePoEstore

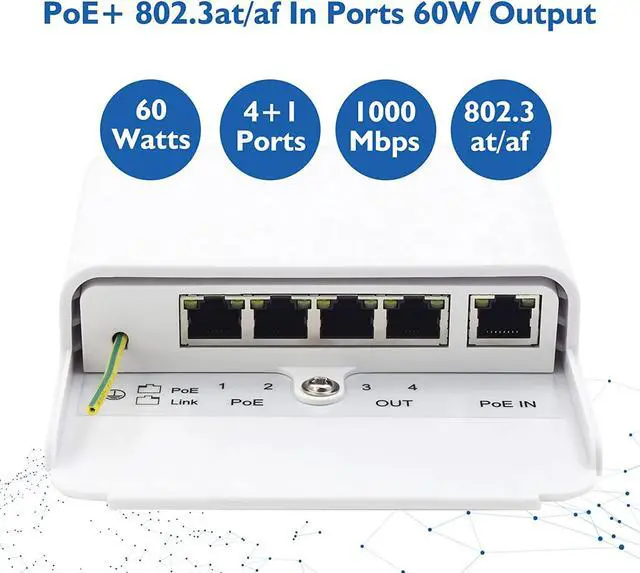

- Ports and SupportGigabit Outdoor Waterproof 5 Port PoE Switch Extender 4 Ports Gigabit PoE+1G Uplink+1SFP RJ45 port supports 10/100/1000 Ethernet connections and Comply with IEEE 802.3at/af Power over
- ApplicationEqupiment with 4 gigabit poe ports up to 30W per poe port for powering poe enabled devices, total power budget 60W. please note: not support passive 24V PoE

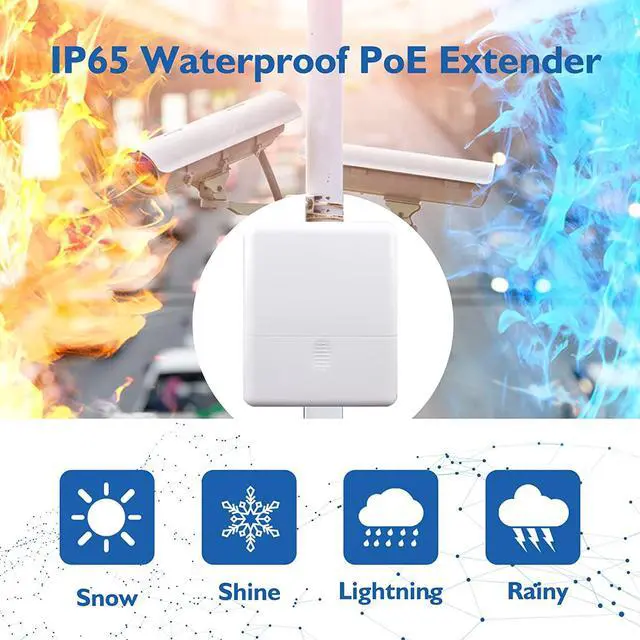

- IP65 Waterproof & Built-in Surge ProtectionSimple And Elegant White housing design, integrated top cover, PC/ABS high polymer material, extraordinary toughness, waterproof indoor and outdoor full-time, make sure the switch can be used in the bad weather. 6KV lightning protection, surge protection, short-circuit protection, over-temperature protection, over-current protection

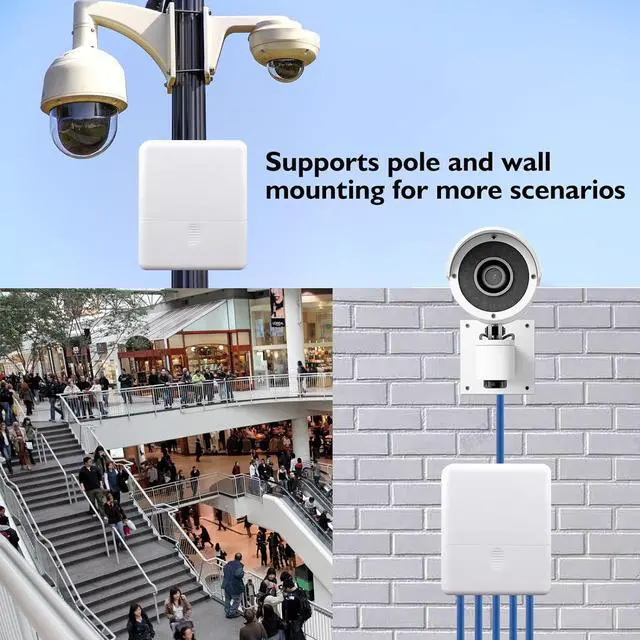

- Flexible and Durable: Plug-and-play & flexible deployment no software or configuration required and designed for wall-mounted or pole-mounted flexible deployment, unmanaged, fan-less, durable casing
- PoE extender:No additional power suppl
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Previous page

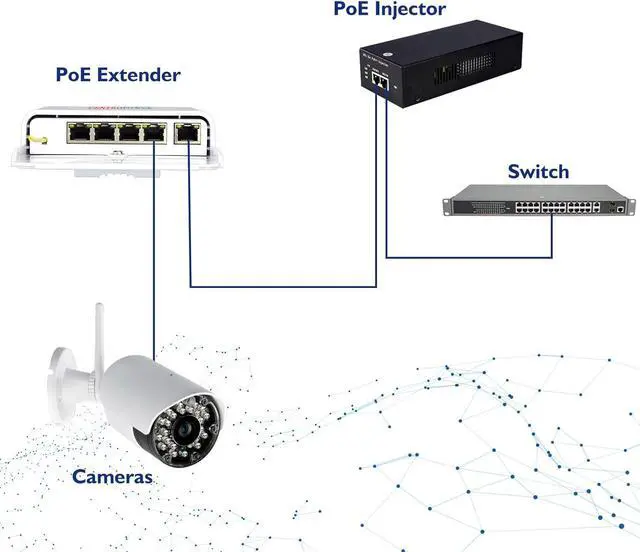

Next page Ethernet and PoE connections both restrict cable distances to 100 meters between network ports. To overcome this distance limit, network installers can simply connect an PoE Extender in-line with the Cat-5e or Cat-6 calbe.
By connecting PoE Extender for every extra 100 meters of cable, both Ethernet and PoE can be extended to 200 meters, depending on PDs power required and power source.
Networking Interfaces10/100/1000 Mbps Ethernet RJ45Network medium100 Meter (328ft)Ethernet StandardIEEE 802.at/IEEE 802.afDimensions125 x 150 x 36 mm (4.92 x 5.90 x 1.42")Number of Channels1 x PoE/PoE+/PoE++ Input, 4 x PoE/PoE+ OutputEthernet Cable RequirementOutdoor type Shielded category 5e (or higher)EnclosureWhite PolycarbonateOperating Temperature-30 to 70(-20 to 158)Operating Humidity5 to 95 Non condensingPoE pin assignmnentV+(Rj45 Pin 3,6) V-(Rj45 Pin 1,2) Plug and Play, no other settings required. No external power required.
EMI standards complies with FCC, CE class B
RJ45 port supports 10/100/1000 Ethernet connections and Comply with IEEE 802.3at/af Power over.Supports passive PoE to power the switch.We recommend supplying power with 30W/60W PoE adapters(not included).
RJ45 port supports 10/100/1000 Ethernet connections and Comply with IEEE 802.3at/af Power over.4-pair PoE passthrough for up to 60W PoE output.
PoE Extender & Injector PoE Extender Cat 6 Cable & PoE Splitter IP65 Waterproof PoE Pass-through Switch Extends Additional 100 Meters Distance Product Specifications Plug & Play PoE Port Gigabit PoE Out 1-4
Next page Ethernet and PoE connections both restrict cable distances to 100 meters between network ports. To overcome this distance limit, network installers can simply connect an PoE Extender in-line with the Cat-5e or Cat-6 calbe.
By connecting PoE Extender for every extra 100 meters of cable, both Ethernet and PoE can be extended to 200 meters, depending on PDs power required and power source.
Networking Interfaces10/100/1000 Mbps Ethernet RJ45Network medium100 Meter (328ft)Ethernet StandardIEEE 802.at/IEEE 802.afDimensions125 x 150 x 36 mm (4.92 x 5.90 x 1.42")Number of Channels1 x PoE/PoE+/PoE++ Input, 4 x PoE/PoE+ OutputEthernet Cable RequirementOutdoor type Shielded category 5e (or higher)EnclosureWhite PolycarbonateOperating Temperature-30 to 70(-20 to 158)Operating Humidity5 to 95 Non condensingPoE pin assignmnentV+(Rj45 Pin 3,6) V-(Rj45 Pin 1,2) Plug and Play, no other settings required. No external power required.
EMI standards complies with FCC, CE class B
RJ45 port supports 10/100/1000 Ethernet connections and Comply with IEEE 802.3at/af Power over.Supports passive PoE to power the switch.We recommend supplying power with 30W/60W PoE adapters(not included).
RJ45 port supports 10/100/1000 Ethernet connections and Comply with IEEE 802.3at/af Power over.4-pair PoE passthrough for up to 60W PoE output.
PoE Extender & Injector PoE Extender Cat 6 Cable & PoE Splitter IP65 Waterproof PoE Pass-through Switch Extends Additional 100 Meters Distance Product Specifications Plug & Play PoE Port Gigabit PoE Out 1-4
