MokerLink 16 Port Gigabit Industrial DIN-Rail Ethernet Switch, 2 Gigabit SFP Ports, Unmanaged IP40 Network Switch (-40 to 185°F), with Power Supply

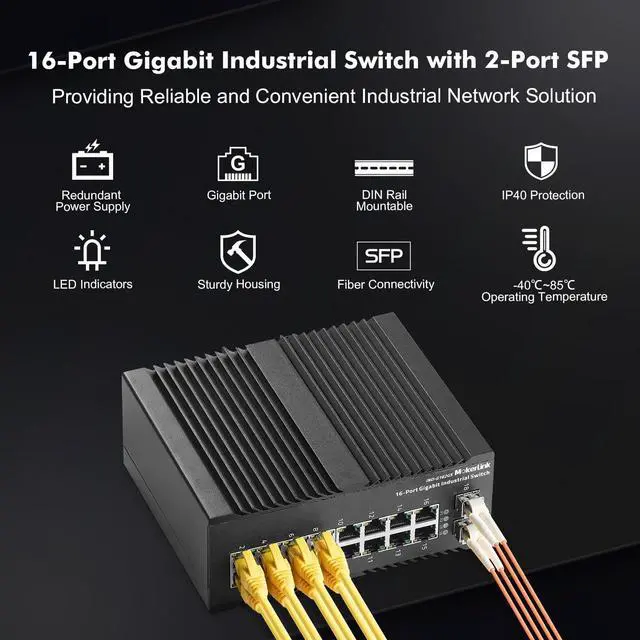

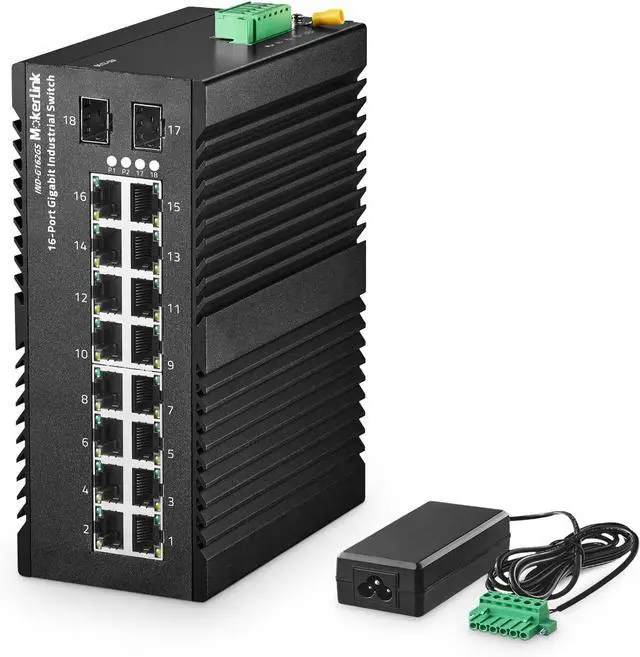

IND-G162GS is an unmanaged Industrial Switch. It provides 16x Gigabit port. support DIN-Rail mounting. LEDs provide visual monitoring of Ethernet-connected devices. The switchs rugged design is built to withstand extreme temperatures, vibrations. it ideal for deployment in industrial settings.
16*10/100/1000M ports and 2*100/1000M SFP ports, 36Gbps switching capacity.Have strong switching capability for sending data to the destination devices at ultra-high speed. Suitable for high-speed networks.
Specially designed for harsh industrial uses, hardened grade rugged IP40 aluminum housing. Fanless design with no moving parts inside to reduce downtime and maintenance call outs.

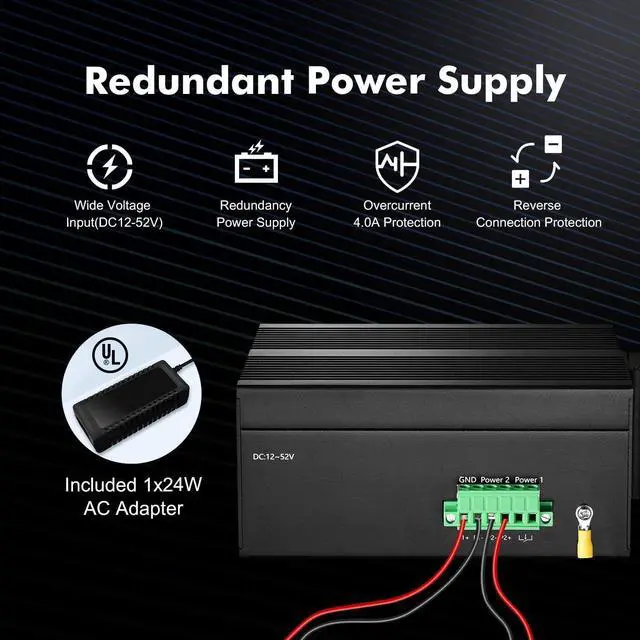

Adopts dual DC power inputs for redundancy and achieves high stability for system operation. The switch come with 1x 24W power adapter.
Supports working at ambient temperatures of -40 °C to +85 °C, improving system robustness, adapted to harsh environments.

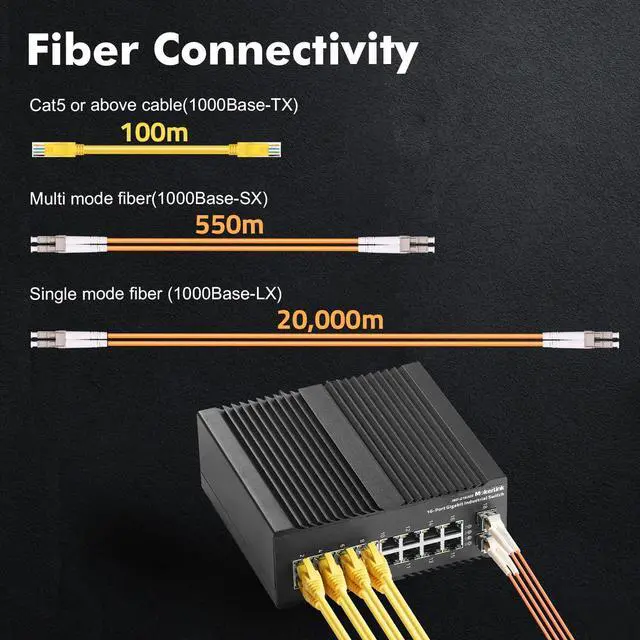

The switch features with 2× 1Gbps SFP slots enable high-bandwidth connectivity and non-blocking switching capacity.
Unmanaged switch employs plug and play installation, din rail mounting, gives high flexibility.
ModelIND-G162GSEthernet16*10/100/1000Mbps RJ45 ports + 2*1000Mbps SFP portsBandwidth36GbpsPack forward rate26.784MppsForwarding modeStore forwardMAC address16KPackage buffer2MNetwork ProtocolIEEE802.3 - CSMA/CD IEEE802.3i - 10Base-T IEEE802.3u - 100Base-TX/FX IEEE802.3x - Flow Control; IEEE802.3z - 1000Base-X IEEE802.3ab - 1000Base-TNetwork Medium10Base-T: Cat3, 4, 5 or above UTP/STP(100m),100Base-TX: Cat5 or higher UTP/STP(100m),1000Base-TX: Cat5 or higher UTP/STP(100 M)Optical fiber mediumMultimode optical fiber: 50/125, 62.5/125, 100/140um,Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125umWorking environmentWorking temperature: -40~85 (-40~185 ° F) Storage temperature: -40~85 (-40~185 ° F) Relative humidity: 5% to 95% (no condensation)LED IndicatorPower indicator light: P1-P2 (green); Data indicator light: 1-16 Link/ACT (green) Light port indicator light: 17-18 (green)Structure SizeShell: IP40 protection level, metal shell Installation: DIN rail type, wall mounted installation Heat dissipation method: natural cooling, fanless Weight: 0.90Kg Size: 174mm * 147mm * 68mmPower VoltageInput voltage: DC12-52V (non POE) Connection terminal: Phoenix terminal Support dual power redundancy Support built-in overcurrent 4.0A protection Support reverse protectionIndustry standardsEMI: FCC Part 15 Subpart B Class AEN 55022 Class AEMS : IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS):10V/m(801000MHz)IEC(EN)61000-4-4(EFT):PowerPort:±4kV;Data Port: ±2kV IEC(EN)61000-4-5(Surge):Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVIEC61000-4-6(CS): 10V(150kHz80MHz)/IEC(EN)61000-4-16(CM EMI) :30V cont. 300V,1sThis ItemMokerLink 16 Port Gigabit Industrial DIN-Rail Ethernet Switch, 2 Gigabit SFP Ports, Unmanaged IP40 Network Switch (-40 to 185°F), with Power SupplyRecommendationsENIANHUA Mini Industrial 5 Port Fiber Ethernet Switch 10/100/1000Mbps with 100/1000M Adaptive SFP Slot Unmanaged Network Switch 14Gbps Switching Capacity 85~250V AC Power Input Din Rail & Wall Mount 10-Port Gigabit Ethernet Switch - Industrial-Grade Unmanaged Network Hub with Din-Rail or Wall Mount, Full Duplex Desktop,Fast Connection,Plug and Play, Rugged Metal Case, Wide Temperature Range Atroodac 12 Ports Gigabit Mini Ethernet Switch Unmanaged Energy Efficient Network Switch Traffic Optimization Ethernet Splitter IP40 Sturdy Metal Wall-Mount 20Gbps Backplane Bandwidth WIWAV WDH-16GT-DC 10/100/1000Mbps Unmanaged 16-Port Gigabit Industrial Ethernet Switches with DIN Rail/Wall-Mount (UL Listed, Fanless, -30°C~75°C) Industrial 8-Port Full Gigabit POE+ Switch with Industrial DIN-Rail Power Supply, 2 Gigabit Uplink Port, Total 120W Budget, DIN-Rail POE Switch for IP Cameras, VoIP Phones, Wireless APs
