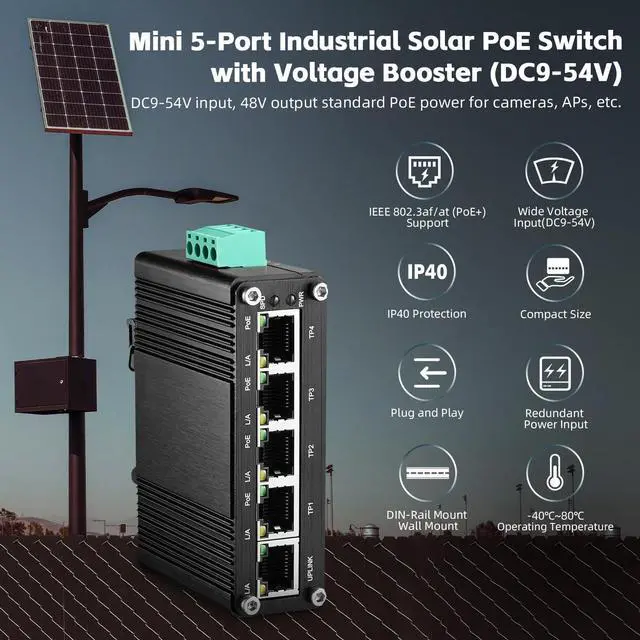

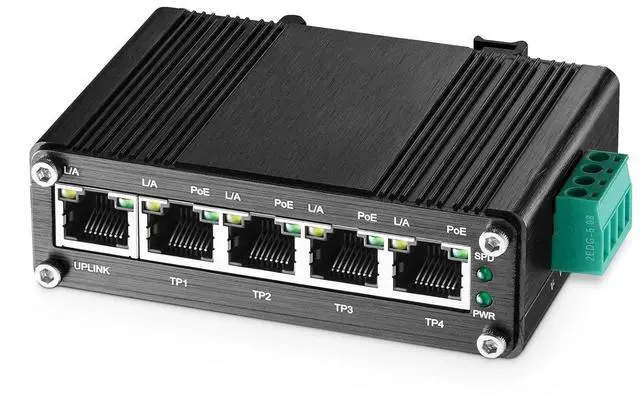

The ING05-041GPW is a 5 Ports Unmanaged Industrial Voltage Booster PoE Switch (DC 9-54V input). Port 1-4 support IEEE802.3af/at PoE standard. The switch adopts no fan, low power design, easy to use, small and simple installation. It can be widely used in various fields.
This switch has a built-in voltage booster chip, support 9-54V DC wide range power input and 48V PoE output. It will fulfilll the needs of industrial applications. It is good choice for an economical solution for industrial Ethernet connections.

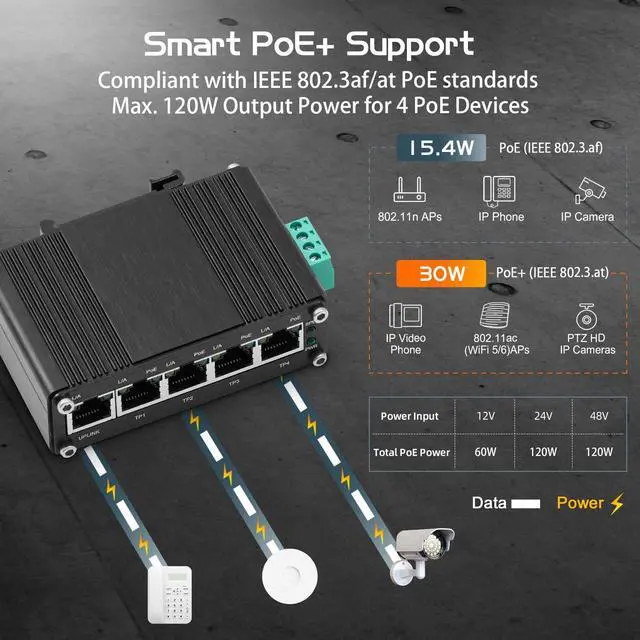

The PoE port 1-4 support IEEE 802.3af/at PoE standard, up to 30W per port (total power budget 120W at 48V input) for powering PoE-enableddevices. The Power Pin Assignment is 4/5(+), 7/8(-).

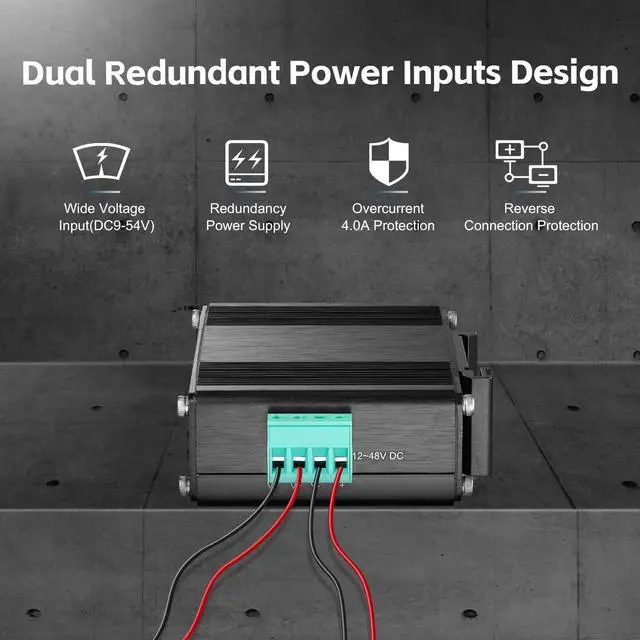

The industrial poe switch feature power redundancy designwith overload current protection for enhanced reliability. A dual powerinput allows for a redundant power supply to ensure the network keepsrunning in the event of a primary power supply failure.

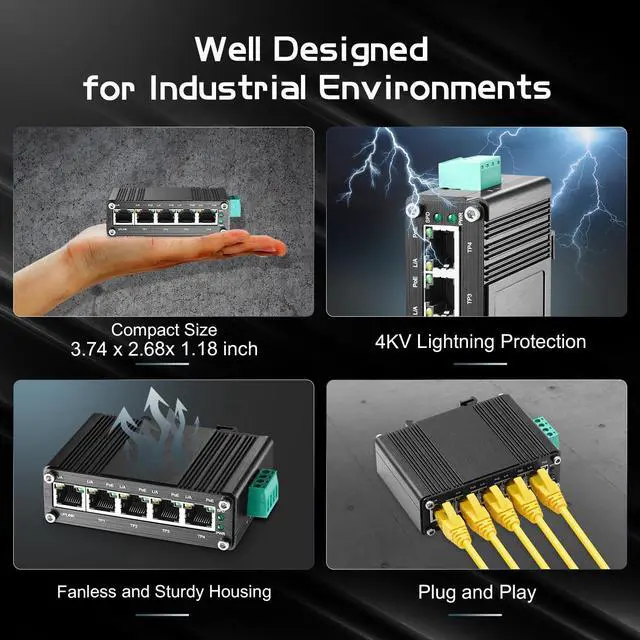

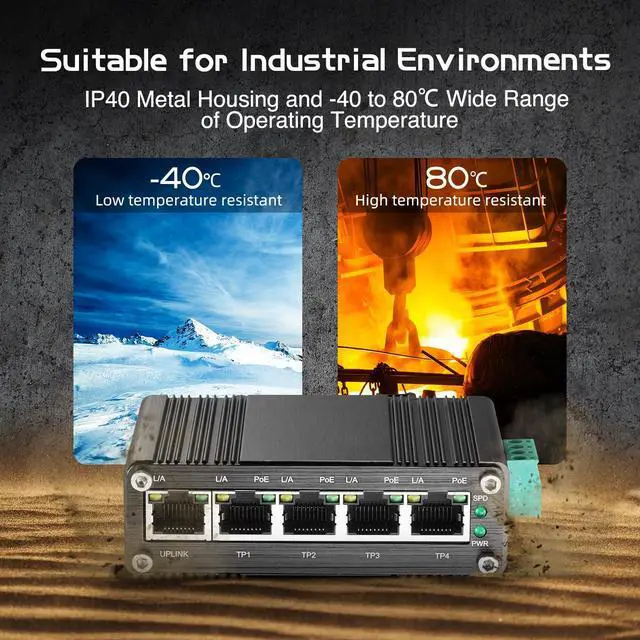

The industrial switch is developed for challengingenvironments, such as outdoor security surveillance, ITS, power,factory. It is designed to withstand temperatures from -40 °C to 80 °C(-40 °F to 185 °F), making it perfect for high demanding installations.
Compact dimension (95mm * 68mm * 30mm), This design makesthese sensors interesting for room critical applications.
It is a unmanaged industrial switch. You can plug and play immediately with your network. There's no need to set anything up, andit has unique LED indicator design, you canquickly check workingstatus
Flexible mount options for DIN-Rail mount and wall-mount, meet various network environment requirement.
ModelING05-041GPWEthernet Port4x 10/100/1000Mbps RJ45 PoE ports + 1x 10/100/1000Mbps Uplink PortStandardsIEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3x Full-Duplex Flow Control, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3at Power over Ethernet Plus PSE, IEEE 802.3af Power over Ethernet PlusSwitch PropertiesForward & Filtering Rate:14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps) Packet Buffer: 1Mbits, Packet Length: 10Kbytes, MAC Address Table: 8K, Switch Fabric: 10Gbps/non-blockingPoE (Power over Ethernet)Standard: IEEE802.3af/at, Power Pin Assignment: 4/5(+), 7/8(-), PoE Budget: Up to 120W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC)Environmental,Operating Temperature: -40°C to 80°C (-40°F to 176°F), Storage Temperature: -40°C to 85°C (-40°F to 185°F), Relative Humidity: 5% to 95% non-condensing, MTBF > 200,000 hrsElectrical and MechanicalInput Power: 9~54VDC (Terminal Block), Power Consumption: <125W (Non-PoE<6W), Power Input Overload: Automatic Resettable, Reverse Polarity: Present, Dimensions (WxDxH): 95 x 68 x 30mm, Weight: 0.25KG, Casing: Aluminum Case , Mounting Options: DIN-Rail / Wall-mountLED IndicatorsPWR Power, SPD Data rate, L/A Link/Activity, PoE PoE Status IEEE 802.3af/at PoE Compliant Dual DC Power Redundancy Rated for Extreme Environments Compact Size Easy to Use Mounting flexibility
