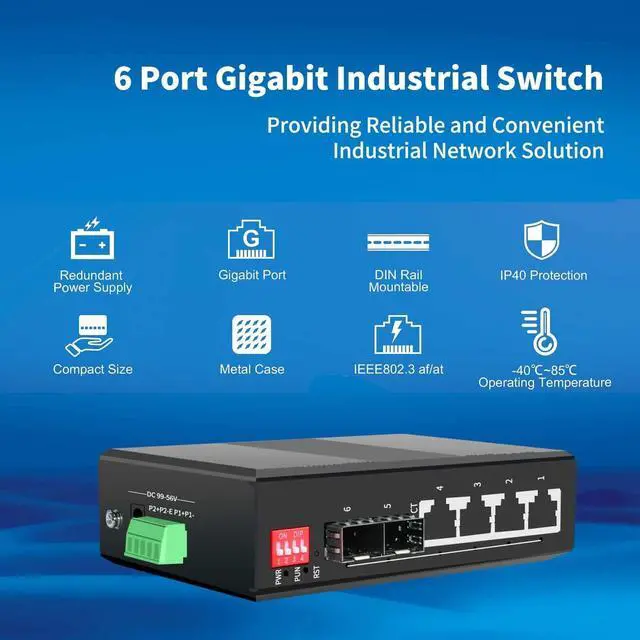

4-Port Hardened Industrial Gigabit 2+ Managed DIN-Rail Switch, 4x10/100/1000 Base-TX +2x1000Base-FX SFP 6X, Network Ethernet Gigabit Not with PoE+ Switch

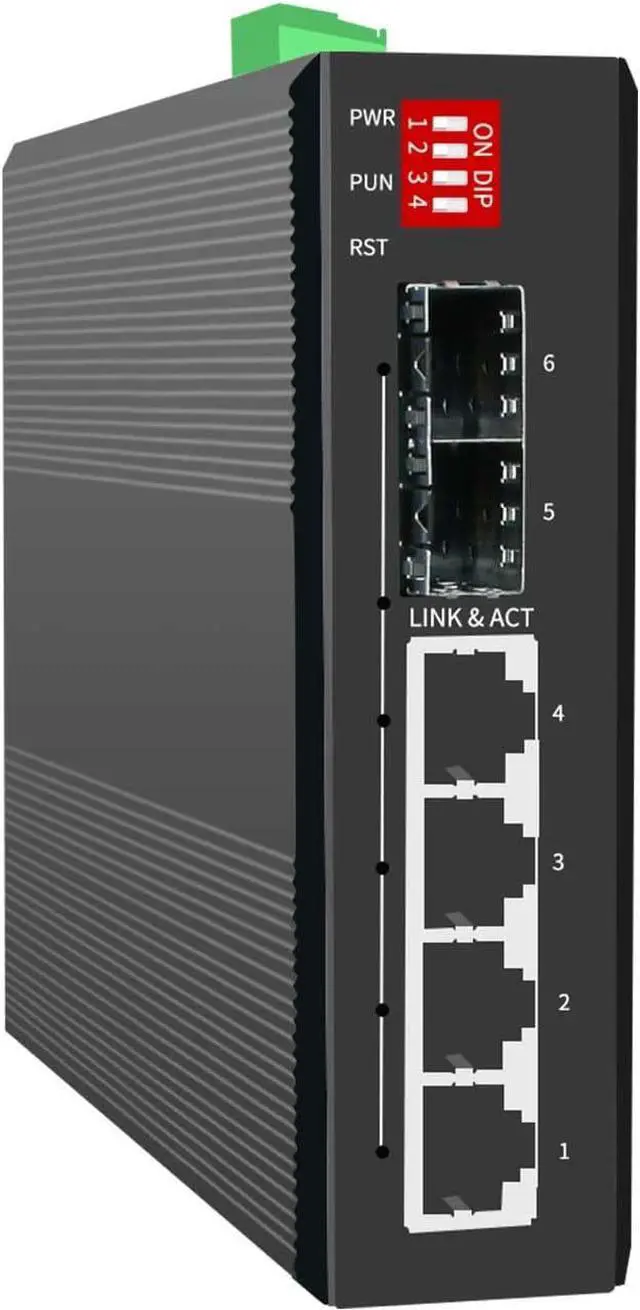

- 4x10/100/1000Base-TX RJ45 ports, 2x100/1000Base-FX Fast SFP ports
- Support 10K bytes giant frame, compatible with various extension protocol
- Provide SC/LC interface fiber port, support single/dual fiber transmission
- It can also operate either at standard operating temperature range -20 to 85°C
- Suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
STP/RSTP
Multicast: IGMP Snooping V1/V2/V3, GMRP
VLAN: IEEE 802.1Q 4K VLAN, QINQ
COS, DSCP, 8queues, WRR
Management Function: WEB
Diagnostic Maintenance: Port mirroring
VLAN mode can effectively suppress the network storm, improve the performance of a wireless network.
Default Mode: the device works as a general switch and all ports support 10/100/1000Mbps auto-negotiation.
VLAN Mode: VLAN isolation is enabled. Port 1-4 will be isolated respectively but can communicate with the Uplink port.

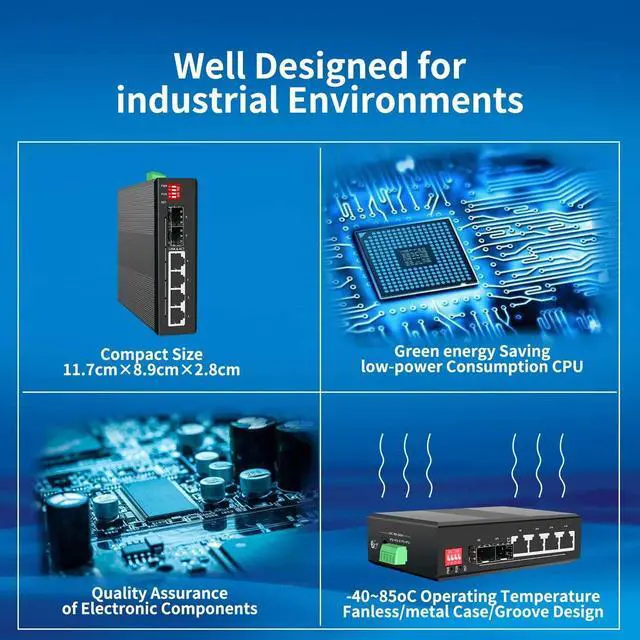

Sturdy metal casing makes the switch reliably in various environments. Powerful cooling feature and less noise to ensure stability.

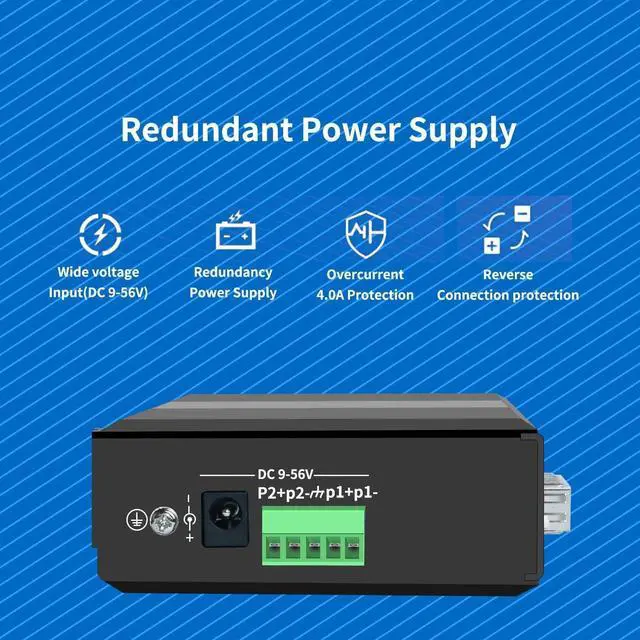

ModelKI-G2400 2sfp 4rj45Packet buffer1MbitsMaximum packet lengthUp to 10k BytesPowerPhoenix terminal, DC 9-56VMAC address table2KTransmission ModeStore and Forward (full/half duplex mode)Switching capacity4x10/100/1000Base-TX2x100/1000Base-FX SFPEthernet standardsIEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.3az IEEE802.3ah IEEE802.1X IEEE802.1QExchange propertyDelay time: < 7s Backplane bandwidth: 12Gbps Packet forwarding rate: 1488100 (64Byte)EMIFCC Part15 Subpart B Class A,EN 55022 Class AEMSEN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 Support Network Management One-Key VLAN Fanless Metal Housing Technical Details
Multicast: IGMP Snooping V1/V2/V3, GMRP
VLAN: IEEE 802.1Q 4K VLAN, QINQ
COS, DSCP, 8queues, WRR
Management Function: WEB
Diagnostic Maintenance: Port mirroring
VLAN mode can effectively suppress the network storm, improve the performance of a wireless network.
Default Mode: the device works as a general switch and all ports support 10/100/1000Mbps auto-negotiation.
VLAN Mode: VLAN isolation is enabled. Port 1-4 will be isolated respectively but can communicate with the Uplink port.
Sturdy metal casing makes the switch reliably in various environments. Powerful cooling feature and less noise to ensure stability.
ModelKI-G2400 2sfp 4rj45Packet buffer1MbitsMaximum packet lengthUp to 10k BytesPowerPhoenix terminal, DC 9-56VMAC address table2KTransmission ModeStore and Forward (full/half duplex mode)Switching capacity4x10/100/1000Base-TX2x100/1000Base-FX SFPEthernet standardsIEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.3az IEEE802.3ah IEEE802.1X IEEE802.1QExchange propertyDelay time: < 7s Backplane bandwidth: 12Gbps Packet forwarding rate: 1488100 (64Byte)EMIFCC Part15 Subpart B Class A,EN 55022 Class AEMSEN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 Support Network Management One-Key VLAN Fanless Metal Housing Technical Details
