youyeetoo Banana Pi OpenWrt One - WiFi 6 Official OpenWrt Router Mainline Support,MediaTek MT7981B SoC 1GB DDR4 RAM, RJ45 Port

High-Performance Dual-Band Wi-Fi 6 Development Board
OpenWrt One is a device based on the MediaTek Filogic 820 SoC that has WiFi 6, dual-band, 3×3/2×2, 1 x 2.5Gbit WAN, 1 x 1Gbit LAN, 1GB DDR4 RAM, 256 MiB NAND, 16 MiB NOR, M.2 SSD and USB 2.0.
OpenWrt One uses Mediateks MT7981B SoC with a dual-arm Cortex-a53 core at 1.3 GHz, 1 GB DDR4 RAM and 256 MiB SPI NAND storage. It also integrates 16 MiB of additional protected storage as a system backup, dual storage hardware to ensure that the onboard system is unbrickable, and finally integrated M.2. 2230/2242 NVMe PCIe 2 X1 ports can be used to add external storage. And with a battery holder for an internal clock, OpenWrt One offers a USB 2.0 Type-A and a mikroBUS expansion port to provide more interfaces to a host of technical possibilities
OpenWrt One is the first board design with OpenWrt opensource communtity.and designed in collaboration with Banana Pi that will also handle manufacturing and distribution of the router board. The OpenWrt One/AP-24.XY router should provide a source of income for the project, for example, to cover the cost of hosting and OpenWrt conferences, with Banana Pi selling the board through their distribution network, and for every device sold, donating to the Software Freedom Conservancy (SDC) with the funds earmarked for OpenWrt.

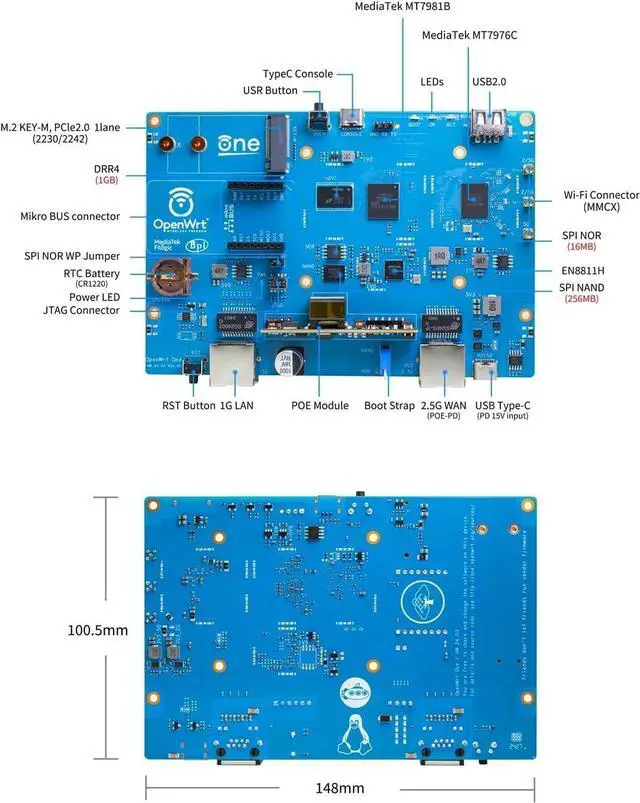

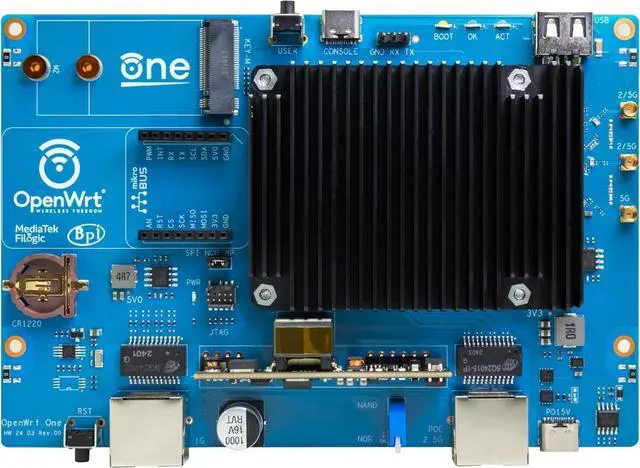

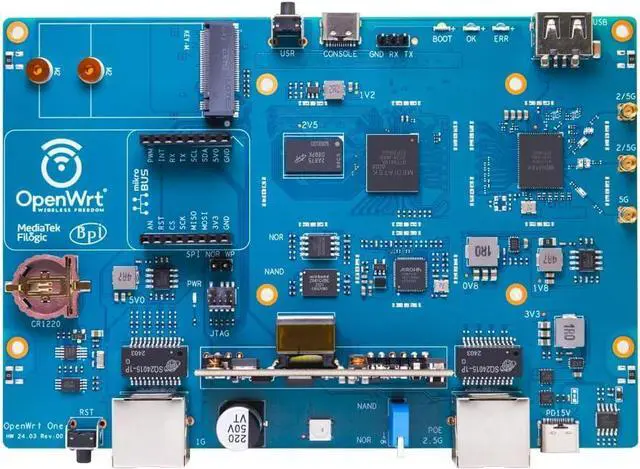

The OpenWrt One router board, highlighted in the image, features a MediaTek MT7981B SoC and MT7976C WiFi 6 chipset. It offers 1GB DDR4 RAM, M.2 SSD support, and a range of ports including USB 2.0, Type-C, and PoE. This board is designed for high-speed, reliable networking and expansion capabilities.
Experience the OpenWrt One/AP-24.XY, a compact 148x100.5mm router board with MediaTek MT7981B and WiFi 6. Perfect for high-speed, stable networks. Ideal for tech-savvy users and professionals. Upgrade your connectivity today.
Key Features OpenWrt official board and support
MediaTek MT7981B (Filogic 820) SoC, M.2 2242/2230 socket for NVMe SSD (PCIe gen 2 x1)
Dual-band WiFI 6 via MediaTek MT7976C (2×2 2.4 GHz + 3×3 5Ghz)
256 MiB SPI NAND and 16 MiB SPI NOR flash are used to make the board almost unbrickable
1 x 2.5GbE RJ45 port and |1 x Gigabit Ethernet RJ45 port

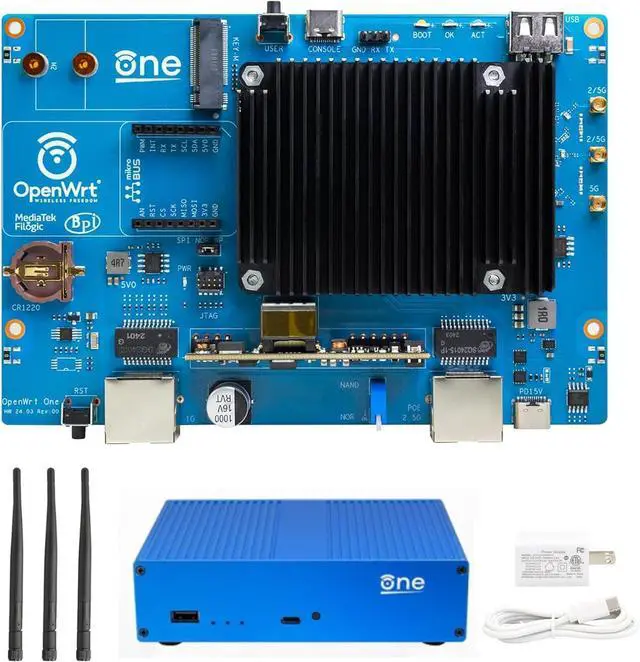

List of packages OpenWrt One Case x1
3DB Antenna x3
OpenWrt One + Heat Sink+RT5400 POE Module x1
Power Supply US x1

SoCMediaTek MT7981B (Filogic 820) dual-core Cortex-A53 processor @ 1.3 GHzSystem Memory1GB DDR4Storage256 MB SPI NAND flash for U-boot and Linux, 16 MB SPI NOR flash for write-protected (by default) recovery bootloader (reflashing can be enabled with a jumper),Two types of flash devices are used to make the board almost unbrickable, M.2 2242/2230 socket for NVMe SSD (PCIe gen 2 x1)Networking1 x 2.5GbE RJ45 port, 1 x Gigabit Ethernet RJ45 port, Dual-band WiFI 6 via MediaTek MT7976C (2×2 2.4 GHz + 3×3/2×2 + zero-wait DFS 5Ghz), 3x MMCX antenna connectorsUSB1x USB 2.0 Type-A host port, USB Type-C (device, console) port using Holtek HT42B534-2 UART to USB chipExpansionMikroBUS socket for expansion modulesDebuggingConsole via USB-C port or 3-pin header, 10-pin JTAG/SWD header for main SoCRTCsupport RTC onboardMiscReset and User buttons, Boot select switch: NAND (regular) or NOR (recovery), 2x PWM LEDs, 2x Ethernet LED (GPIO driven), EM6324 External hardware watchdog, NXP PCF8563TS (I2C) RTC with battery backup holder for CR1220 coin-cellPower Supply15V USB-PD on USB-C port, Optional 802.3at/af PoE via RT5040 moduleDimensions148 x 100.5 mm compatible with Banana Pi BPI-R4 case designCertificationsFCC/EC/RoHS compliance OpenWrt One
