USR-M300 High Performance Edge Computing Industrial IoT Gateway Protocol Conversion NodeRED Development Gateway Expander IO (Ethernet Version)

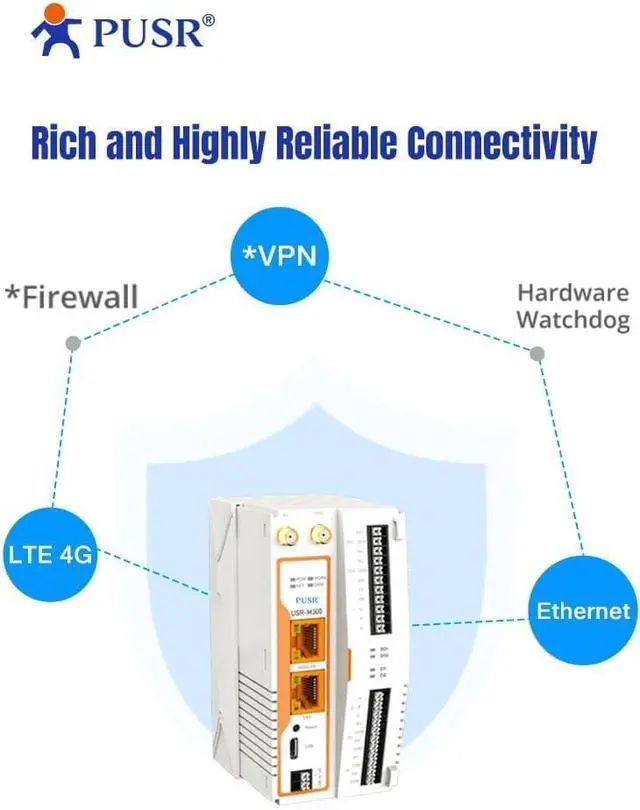

- Multiple Internet access methods is offered: Global frequency LTE 4G/3G & Ethernet port & ADSL.
- Router fucntion is supported: Routing, VPN and firewall.

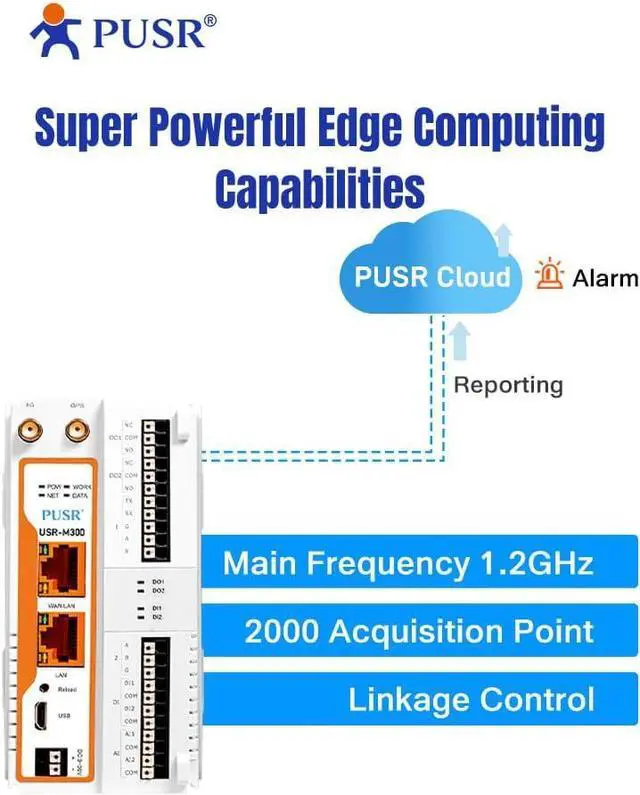

- Super Powerful Edge Computing Capabilities

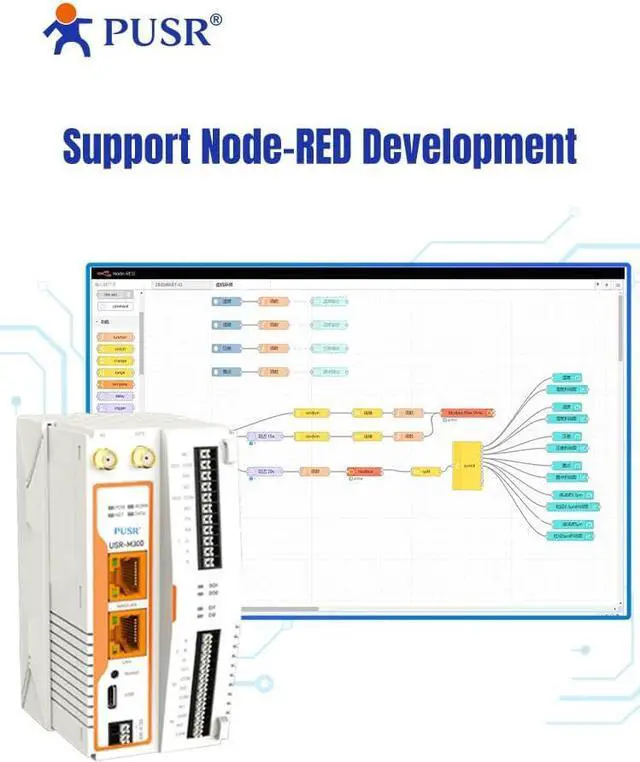

- Support graphical programming (Node-RED) to quickly develop edge computing functions to meet unique functional requirements.

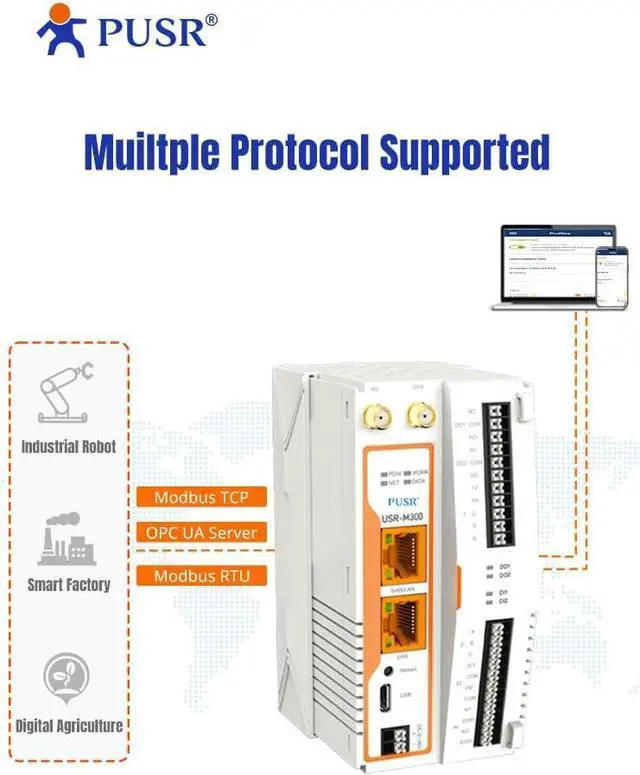

- Suitable for a variety of industrial IoT scenarios, supporting Modbus RTU/TCP protocol conversion and other popular PLC common protocols.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

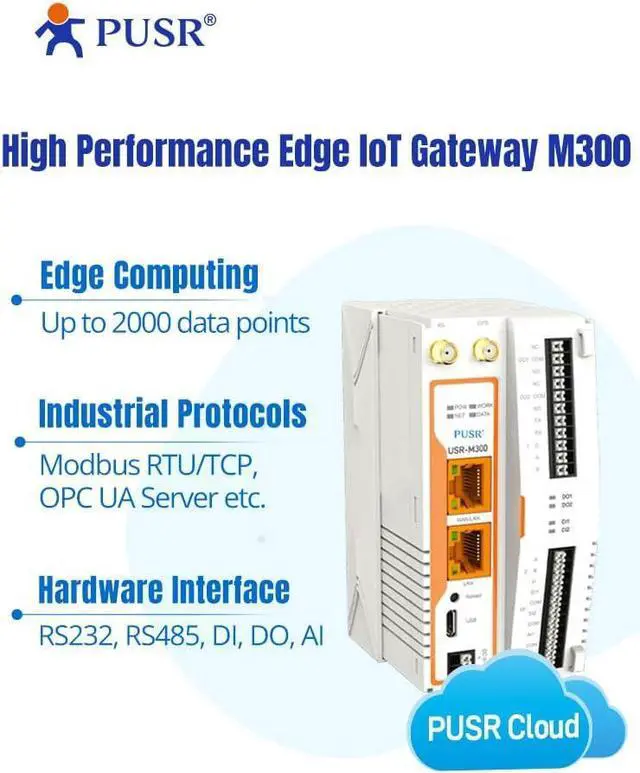

Powerful Edge Computing, Expandable IO Modules, User Self-Development,The USR-M300 is an industrial-grade edge computing IoT device with modular design, so users can expand IO as needed. This device comes with powerful edge computing capabilities, which can reduce cloud-end computing resources, and reoport data to Cloud platform actively. It can access the Internet via Ethernet port, ADSL and LTE cat4 cellular network to achieve easy network deployment.
·Level 3 EMC protteciton, IEC6000. ·Wide power input range: DC12~24V. ·Wide operating temperature: -25~75. ·Installation: Wall mounting & Din-rail mounting.
·Cloud Platform Services ·Supports quick access to PUSR Cloud, Alibaba Cloud and AWS. ·Supports standard MQTT and TCP protocols. ·It can also quickly connect to public cloud platforms such as ThingsBoard and Azure.
·Serial Ports: 1*RS232/485, 1*RS485. ·Ethernet Ports: 1*WAN/LAN, 1*LAN. ·IO: 2*DI, 2*DO, 2*AI(Current). ·Power Supply: DC 9~36V. ·Antenna: SMA-female. ·Reload: In the case of forgetting the parameters, long press to restore the factory settings.
High Performance Edge IoT Gateway Industrial Design, Easy Installaton Support Quick Access to Mainstream Dimentions and Interfaces
·Level 3 EMC protteciton, IEC6000. ·Wide power input range: DC12~24V. ·Wide operating temperature: -25~75. ·Installation: Wall mounting & Din-rail mounting.
·Cloud Platform Services ·Supports quick access to PUSR Cloud, Alibaba Cloud and AWS. ·Supports standard MQTT and TCP protocols. ·It can also quickly connect to public cloud platforms such as ThingsBoard and Azure.
·Serial Ports: 1*RS232/485, 1*RS485. ·Ethernet Ports: 1*WAN/LAN, 1*LAN. ·IO: 2*DI, 2*DO, 2*AI(Current). ·Power Supply: DC 9~36V. ·Antenna: SMA-female. ·Reload: In the case of forgetting the parameters, long press to restore the factory settings.
High Performance Edge IoT Gateway Industrial Design, Easy Installaton Support Quick Access to Mainstream Dimentions and Interfaces
