Heltec Wi-Fi HaLow Dongle 1KM Ultra-Long-Range USB Type-C Low Power Consumption Wireless Network Bridge IEEE 802.11ah 902-928MHz Supported Wi-Fi and Ethernet (AP Mode)

Wi-Fi HaLow Dongle is a plug-and-play network bridge designed to significantly extend the transmission range of traditional networks, offering lower power consumption. You can think of it as a type of ultra-long-range Wi-Fi or Ethernet cable, and maintaining high transmission speeds even at extended distances.
This long-range communicator based on Wi-Fi HaLow can replace Ethernet cables in certain scenarios. IEEE 802.11ah protocol, HT-HD01 operates in the unlicensed SUB-1G frequency band (902928 MHz). It offers four bandwidth modes (1/2/4/8 MHz), with a maximum transmit power of 21±1 dBm and data rates of up to 32.5 Mbps@8M.
Factory matching, plug and play.
You can connect your device to the Dongle through three methods: USB Type C, Ethernet, and 2.4GHz Wi Fi.
Long transmission range.
It can be seamlessly connected to traditional networks.
Large capacity allows access to a large number of devices simultaneously.
Low power consumption design.
High transmission rate, 32.5Mbps 8MHz.
Support Sub-1 GHz frequency bands, frequency range: 902~928 MHz.
It offers four bandwidth modes 1/2/4/8MHz.
Lightweight and easy to deploy.
Rich in features and strong in extensibility.

Connect the AP device to the upstream router and power it on.
Under default conditions, your device is already paired. You only need to power onthe STA device, and it will be able to
communicate with the AP device.
You can directly connect your device to the RJ45 or USB-C port, or you can use
the device's Wi-Fi to connect.
MCUMT7628Wi-Fi HaLow ModuleHT-HC01Wi-FiIEEE 802.11b/g/nWi-Fi HaLowIEEE 802.11ah; Frequency: 902-928MHz; Max. TX power: 21±1 dBm; Bandwidth: 1/2/4/8 MHz; Max Data Rate: 32.5 Mbps @ 8 MHzANT InterfaceSMA female socketEthernetRJ45(10/100M), USB-COperating ConditionTemperature: -20 ~ +70 Humidity: 10%90%( no-condensing)PowerUSB-C, 5VConsumption300mA(Typical)Ingress ProtectionWithout waterproof treatmentShell materialAluminum Alloy, PlasticWeight53.5g (Antenna included), 40g (Antenna excluded)Dimensions87.5*32.5*20mm(Antenna excluded) Info: At least TWO HT-HD01 can be paired for use, or cooperate with a HaLow router.
The default packing list without selecting any accessories is as follows:
Wi-Fi HaLow Dongle AP (Only valid when selecting AP configuration) x 1
Wi-Fi HaLow Dongle STA (Only valid when selecting STA configuration) x 1
Wi-Fi HaLow Dongle AP+STA (Only valid when selecting AP+STA configuration) x 1

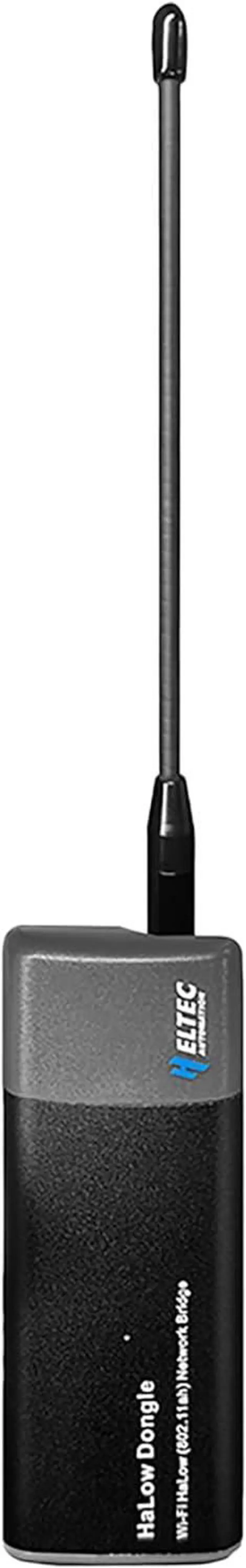

Atenna x 1
USB-C cable x 1
Reset button trigger pin x 1
Paper user guide x 1
Ethernet jumper x 1

Summary Main Features Steps to Use Step 1: Step 2: Step 3: Specifications It has two typical usage scenarios: Cooperate with HT-H7608 HaLow router to achieve star networking. Pairing two HT-HD01 devices for point-to-point communication. Packing list
