youyeetoo NanoPi R6S Mini Router con custodia in Metallo, 8GB LPDDR4X 32GB EMMC, RK3588S Scheda di sviluppo, 6TOPS NPU, supporto Docker, TRE Porte Ethernet, USB3.0 HDMI,M.2 NVMe Storage, PD Power

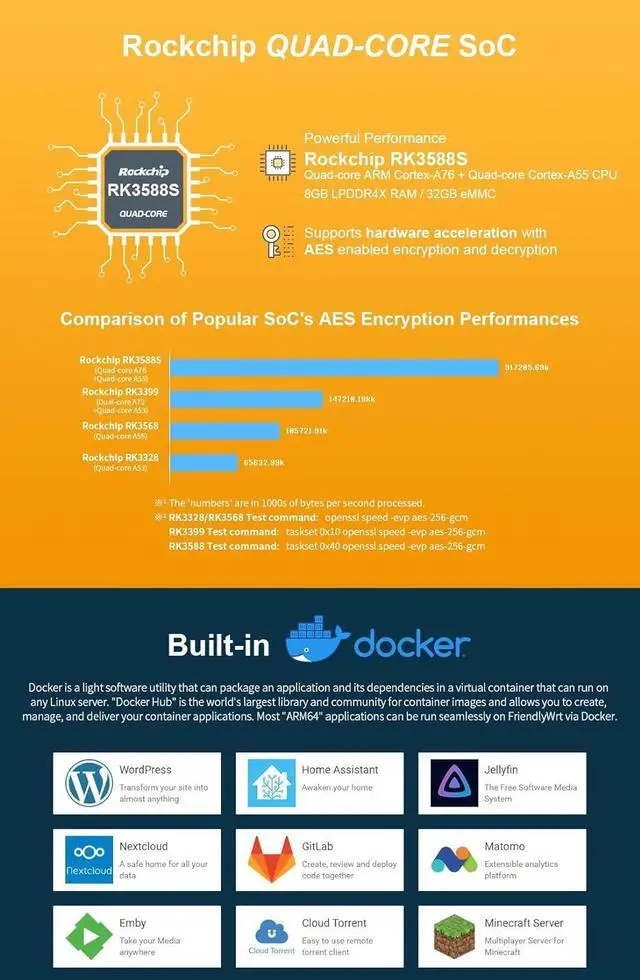

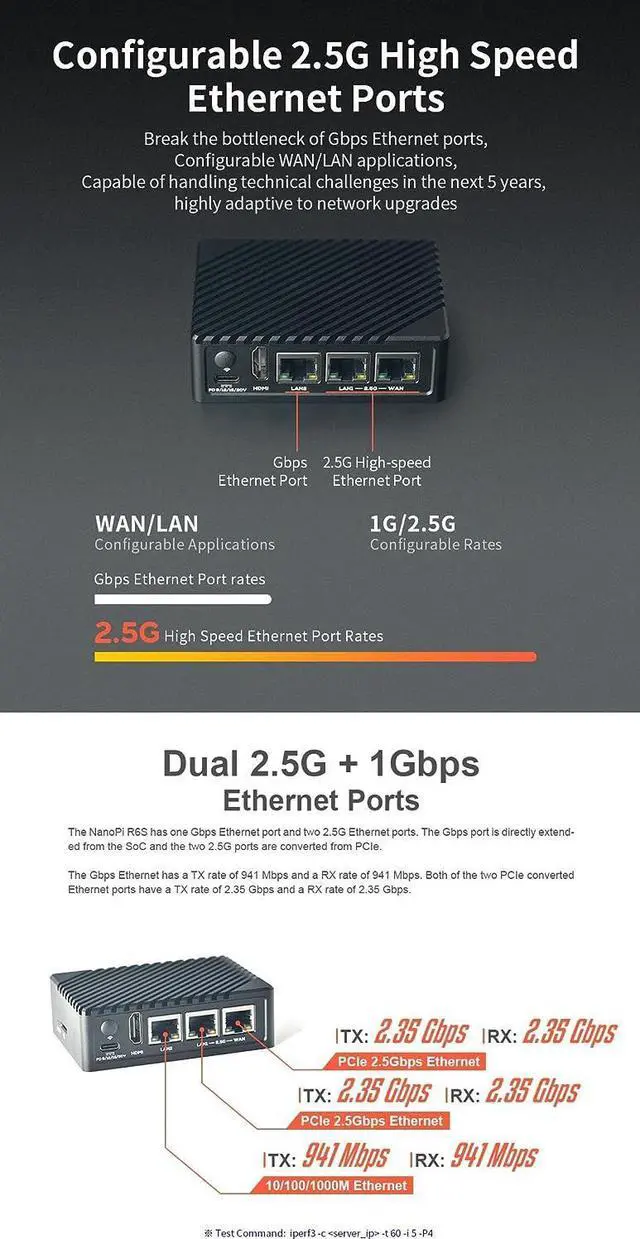

- FeatureThe NanoPi R6S has a dual-2.5G and a Gbps Ethernet ports.It is integrated with a Rockchip RK3588S CPU and 32GB eMMc flash and 8GB LPDDR4X RAM.It supports multiple OS systems including FriendlyWrt, Android, Debian, Ubuntu and more. In addition it supports GPU and VPU acceleration.

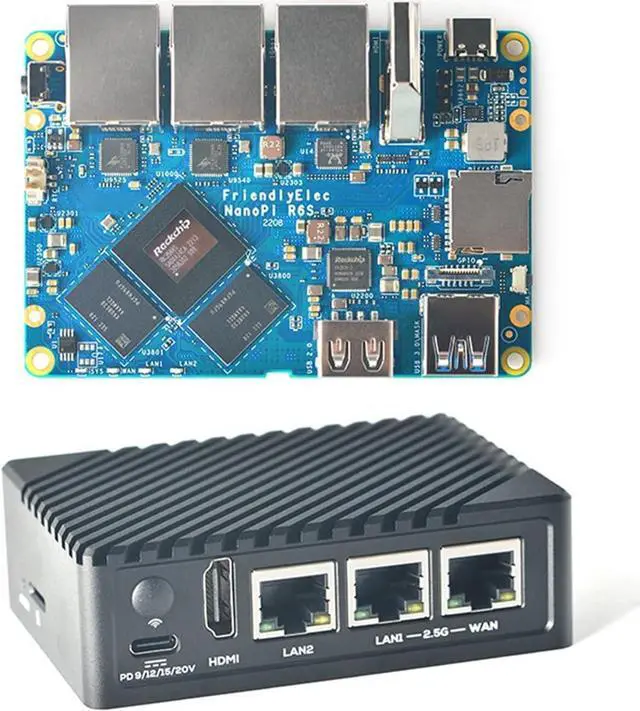

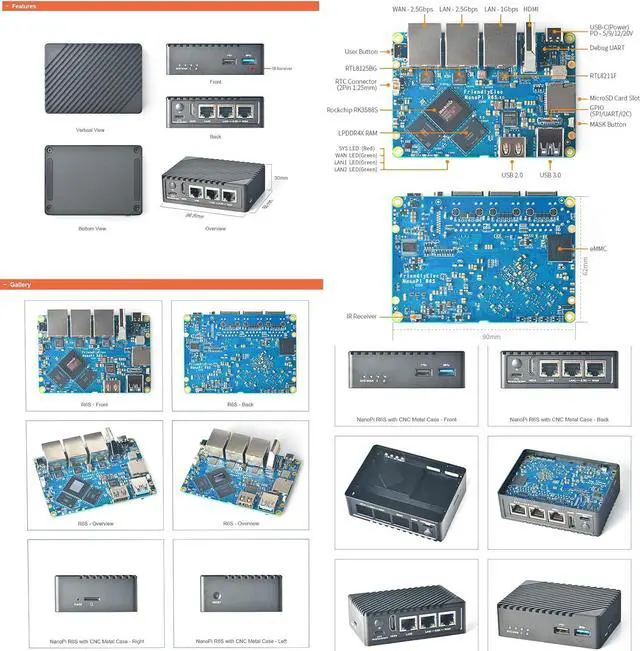

- The R6S has rich interfaces and compact layout. The size of the main board is only 90x62mm, and an integrated CNC aluminum oxide casing can be purchased. It has an HDMI output interface, which can decode and play up to 8K@60fps H.265/VP9, and 8K@30fps H.264 and other formats.
- The R6S has 2 USB ports and supports PD fast charging power supply, so there is no need to worry about insufficient power supply when connecting a mobile hard disk.
- Not Only RouterR6S is very suitable for enterprise customers to customize the development of mini machine vision systems with multiple network ports, and is suitable for embedded enthusiasts to discover, explore and create their own unique gameplay.
- Remindwik
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Tips: If you have any other questions, please click youyeetoo to feedback. Thanks.
The delivery timeliness of Amazon logistics depends on Amazon. The basic logistics time for self-shipping is 7-14 days, and express logistics is 3-7 days.
Due to the passive heat dissipation design adopted, heat generation from the casing is a normal phenomenon and will not affect actual use.
FriendlyWrt comes pre-installed, if you want to use another system, you can reinstall it according to the wiki instructions
SoC:Rockchip RK3588SRAM:64-bit 8GB LPDDR4X at 2133MHzFlash:32GB eMMC, at HS400 modeEthernet:one Native Gigabit Ethernet, and two PCIe 2.5G EthernetUSB:one USB 3.0 Type-A and one USB 2.0 Type-AHDMI:compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation; support up to 7680x4320@60Hz; Support RGB/YUV(up to 10bit) formatmicroSD:support up to SDR104 modeGPIO:12-pin 0.5mm FPC connector; with up to 1x SPI, up to 3x UARTs, up to 1x I2Cs, up to 2x SPDIF, up to 8x GPIOsDebug:one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bpsLEDs:4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)others:2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS; one IR receiver and the carrier frequency is 38Khz; MASK button for eMMC update; one user button; one 5V Fan connectorPower supply:USB-C, support PD, 5V/9V/12V/20V inputPCB:8 Layer, 62x90x1.6mm OS Support:FriendlyWrt 21.02; FriendlyWrt 22.03; Android 12 Tablet; Android 12 TV; FriendlyCore Lite 20.04; Debian 10 Desktop; Debian 11 Desktop; Ubuntu 22.04 DesktopKernel version:Linux-5.10-LTS; U-boot-2017.09DimensionPCB 8 Layer ; Weight 55.1gwithout Case) / 262gwith Case) ; 62x90x1.6mm (without Case) / 68x94.5x30mm (with Case) Nanopi R6S
The delivery timeliness of Amazon logistics depends on Amazon. The basic logistics time for self-shipping is 7-14 days, and express logistics is 3-7 days.
Due to the passive heat dissipation design adopted, heat generation from the casing is a normal phenomenon and will not affect actual use.
FriendlyWrt comes pre-installed, if you want to use another system, you can reinstall it according to the wiki instructions
SoC:Rockchip RK3588SRAM:64-bit 8GB LPDDR4X at 2133MHzFlash:32GB eMMC, at HS400 modeEthernet:one Native Gigabit Ethernet, and two PCIe 2.5G EthernetUSB:one USB 3.0 Type-A and one USB 2.0 Type-AHDMI:compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation; support up to 7680x4320@60Hz; Support RGB/YUV(up to 10bit) formatmicroSD:support up to SDR104 modeGPIO:12-pin 0.5mm FPC connector; with up to 1x SPI, up to 3x UARTs, up to 1x I2Cs, up to 2x SPDIF, up to 8x GPIOsDebug:one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bpsLEDs:4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)others:2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS; one IR receiver and the carrier frequency is 38Khz; MASK button for eMMC update; one user button; one 5V Fan connectorPower supply:USB-C, support PD, 5V/9V/12V/20V inputPCB:8 Layer, 62x90x1.6mm OS Support:FriendlyWrt 21.02; FriendlyWrt 22.03; Android 12 Tablet; Android 12 TV; FriendlyCore Lite 20.04; Debian 10 Desktop; Debian 11 Desktop; Ubuntu 22.04 DesktopKernel version:Linux-5.10-LTS; U-boot-2017.09DimensionPCB 8 Layer ; Weight 55.1gwithout Case) / 262gwith Case) ; 62x90x1.6mm (without Case) / 68x94.5x30mm (with Case) Nanopi R6S
