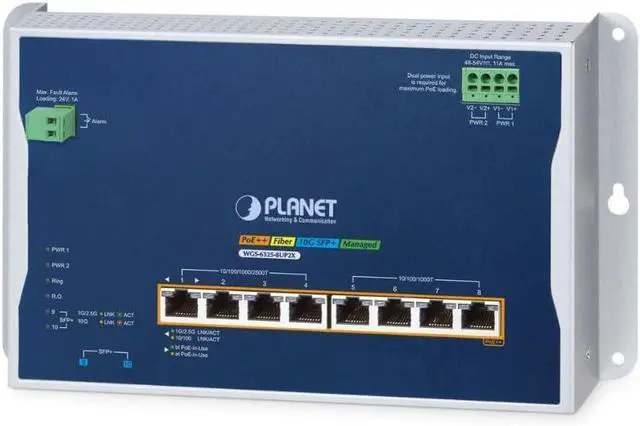

Planet WGS-6325-8UP2X Industrial Flat Wall Mount L3 Managed 8 Ports 802.3bt PoE++ Switch, 4× 2.5G + 4× Gigabit 95W PoE++, 2× 10G SFP+, 480W PoE Budget, ERPS, 1588 PTP, Modbus TCP, MQTT

INDUSTRIAL L3 MANAGED POE SWITCH - Equipped with Layer3 RIPv1/v2, OSPFv2/v3 routing, ERPS Ring, and 1588 PTP TC, Modbus TCP, ONVIF, Cybersecurity features, supports CloudViewer app and MQTT.
8 BT95W PoE++ - Supports 8× 802.3bt PoE ports (4× 2.5G + 4× 10/100/1000T) delivering up to 95W per port and 480W total PoE budget, ideal for high-power devices like IP cameras, WiFi 6 APs, and industrial IoT.

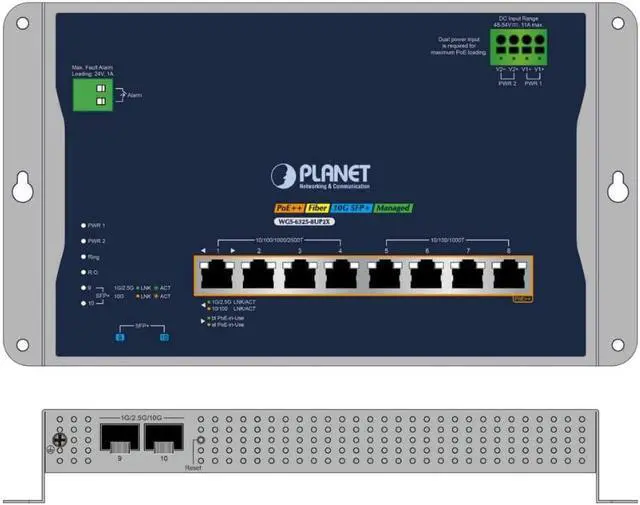

2.5G PoE++ & 10G SFP+ Ports - Equipped with 4× 2.5G 802.3bt PoE++ output ports and 2× 10G SFP+ uplink slots, supporting 1000X, 2.5G, and 10G fiber modules for ultra-fast, long-distance connections and network redundancy in industrial and surveillance applications.
IEEE 1588 PTP Precision Timing Supports PTPv2 (Precision Time Protocol) with transparent clock mode for nanosecond-level synchronization, critical for industrial automation, telecom, and power substation applications.
SMART PoE & REMOTE CONTROL - Includes PD alive check, PoE scheduling, ERPS ring (<50ms recovery), and 1588 PTP synchronization. Manage via Web, CLI, SNMP, or PLANET CloudViewer app with MQTT support.

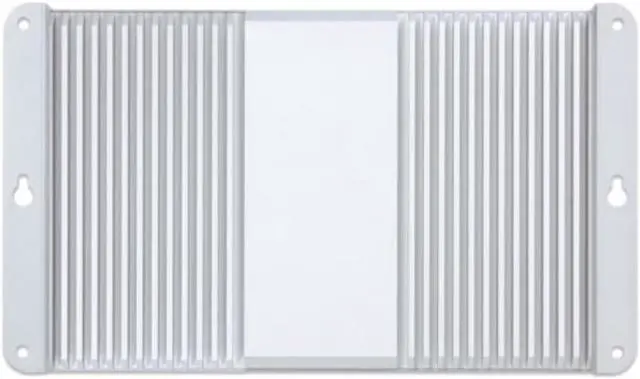

Flat Wall Mount Design for Compact Spaces - Space-saving, flat-type switch specifically designed for wall mounting in compact and harsh industrial environments where cabinet or DIN-rail installation isnt possible.

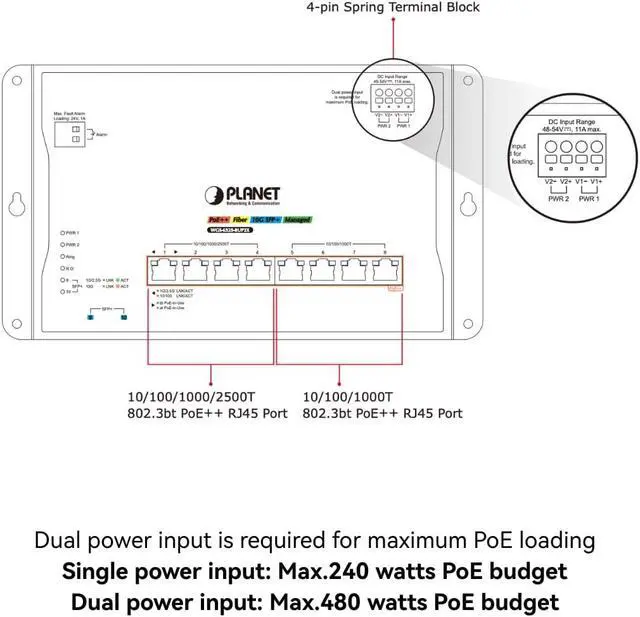

INDUSTRIAL DESIGN- IP30 metal housing, wide operating temperature -40°F to 167°F( -40°C to 75°C), 6KV surge protection, and dual 48-54V DC inputs ensure reliability in harsh environments like factories, warehouses, and outdoor deployments.
