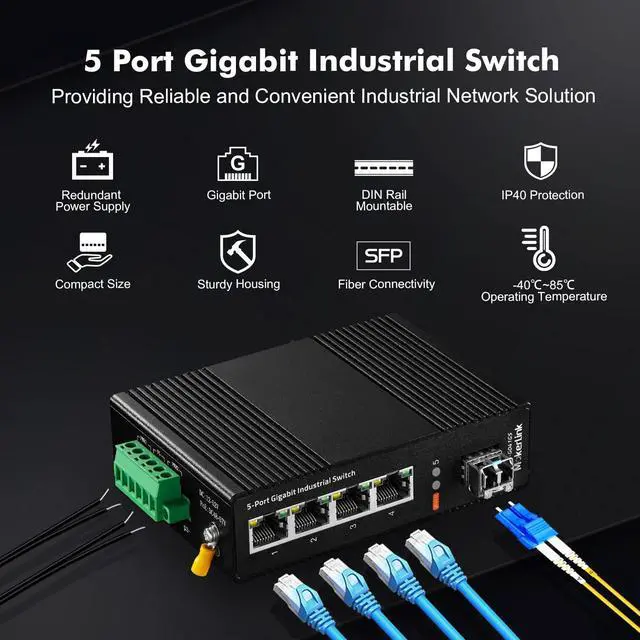

MokerLink 5 Port Industrial DIN-Rail Network Switch, 4 Gigabit Ethernet, 1 SFP, 14Gbps Switching Capacity, IP40 Rated (-40 to 185F), With UL Power Supply

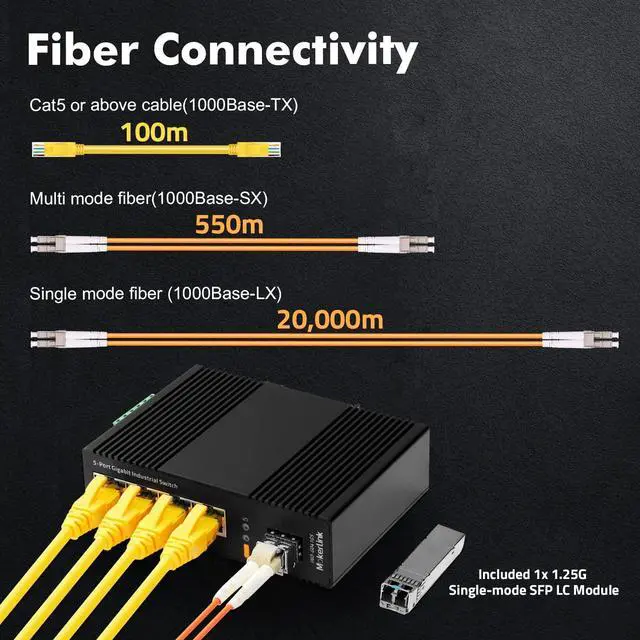

- This network switch include 4 gigabit ethernet ports, 1 gigabit SFP uplink with 1310nm 20km LC single module, Switching capacity up to 14Gbps, with better data performance

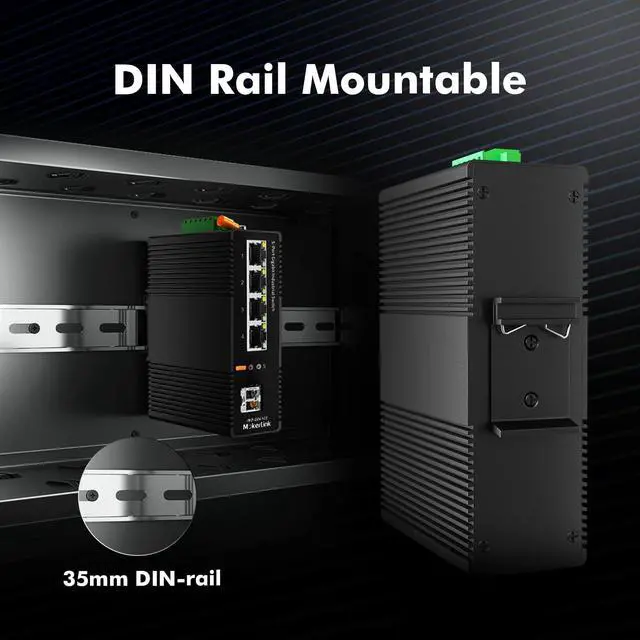

- The shell is made of industrial-grade aluminum alloy, which is more sturdy, surface groove design, better heat dissipation, integrated DIN-rail mount kit, installation and disassembly are very simple
- IP40 protection grade, working temperature -40~75°C(-40~185°F), super robustness, anti-lightning, anti-static and anti-overload protection, adapt to various harsh environments

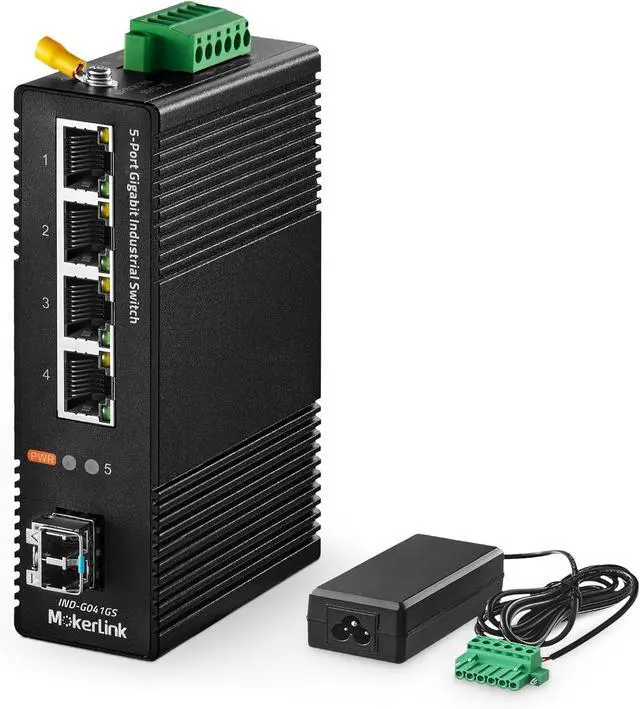

- Dual power supply, automatic fault switching, anti-reverse connection does not damage the equipment, higher reliability, equipped with one UL-certified power adapter, can be used without additional purchase
- Support auto-negotiation, plug and play, no configuration needed, low-power consumption CPU, no fan quiet operation, green energy saving, suitable for various networks, such as home office, computer room, warehouse, factory, compact
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Rugged IP40 rated enclosure designed to withstand a high degree of vibration, shock, It can be used in such demanding applications as railways, water treatment, substation automation, roads and tunnels, as well as factory automation, IP surveillance and building automation systems (BMS).

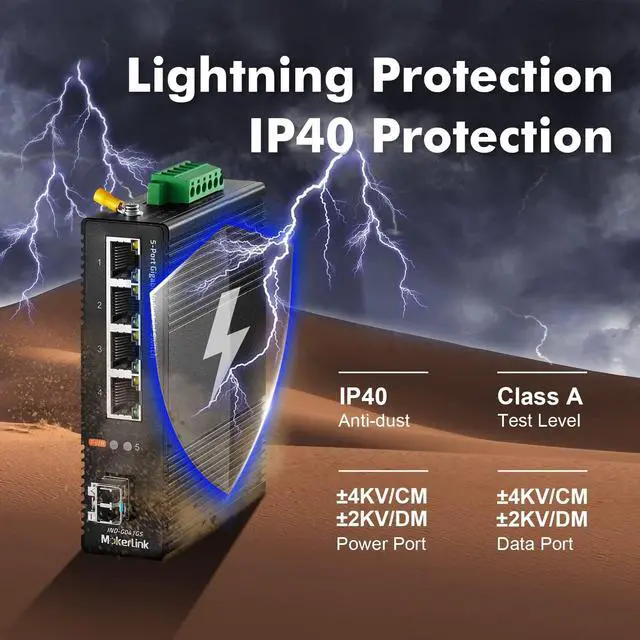

The industrial switch's 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.

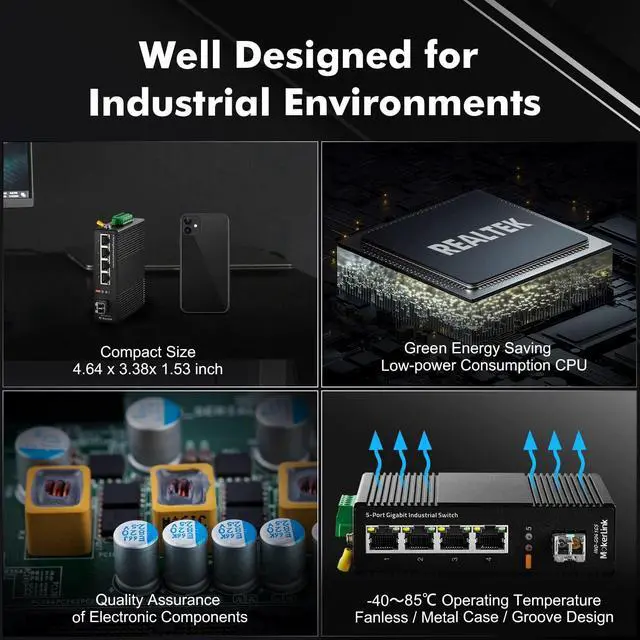

Compact and lightweight(118 x 86 x 39mm/0.36kg). It is designed for desktops, cabinet and quiet environments
Product Name5-port10/100/1000Mbps industrial ethernet switchProduct ModelIND-G041GSPort4x10/100Base-T RJ45port + 1x1000Mbps SFP portNetwork protocolIEEE802.3-CSMA/CD;IEEE802.3i-10Base-T;IEEE802.3u-100Base-TX/FX;IEEE802.3x-flow control; - 1000Base-X;IEEE802.3ab - 1000Base-T;Operating temperature-4085-40185°F Input voltageDC12-52V (redundant backup of dual power supply )Access terminalPhoenix terminalShellIP40 protection grade, metal shellInstallationDIN-rail mount and wall mountRadiating methodNatural cooling, No-fanWeight0.38Kg(0.8 lb)Size143 x 101 x 44mm(L x W x H)IEC(EN)61000-4-5(Surge)Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kVExchange capacity14GbpsProtection GradeIP40Work EnvironmentOperating temperature: -4085(-40185°F), Storage temperature: -4085(-40185 °F), Relative humidity: 5%95%( (no condensation) IP40 Aluminum Metal Housing Lightning Protection Compact Size Product Specifications
