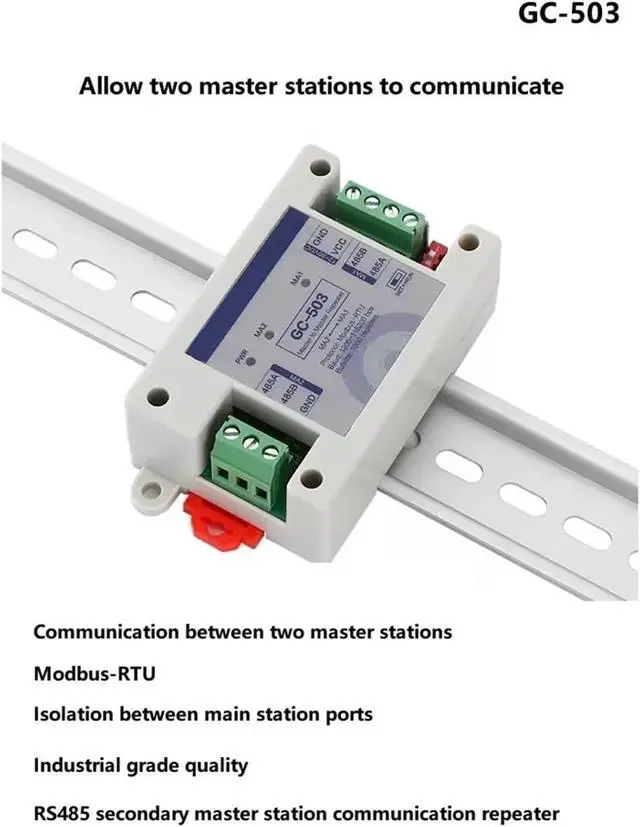

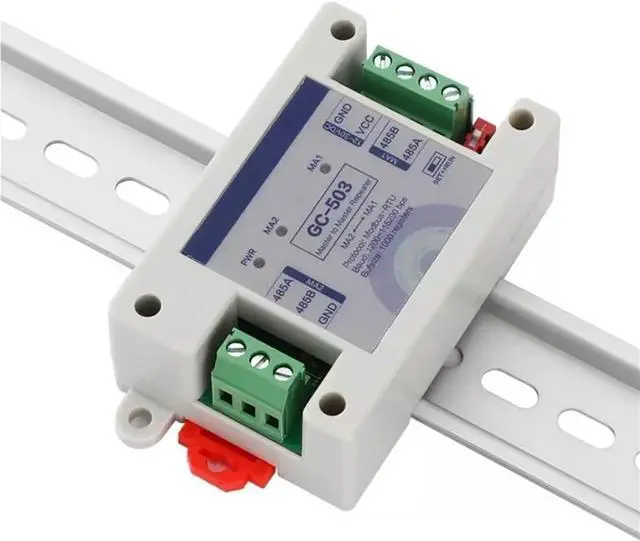

RS485 2 Master Station Communication Repeater, Inter-Master Station Communication Modbus Protocol Data Sharer

Thermostats & Accessories
Module parameters

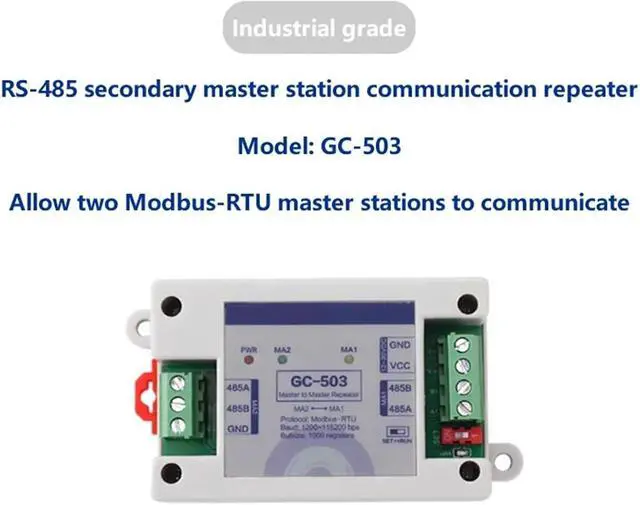

Model: GC-503 (RS485 two-master communication repeater)
Working voltage: DC9~30V
Working current: 100mA

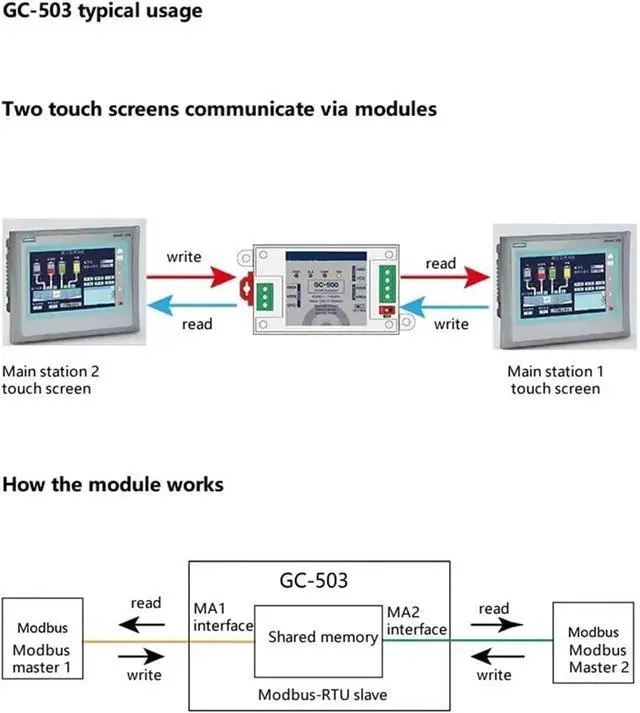

Function overview: realize data interaction between two Modbus master stations
Applicable protocol: Modbus-RTU
Cache size: 500 register data can be cached*2
Interface: 2 RS485 interfaces (both connected to the master station)
Indicator lights: 3 indicator lights (one power light + two communication indicator lights)

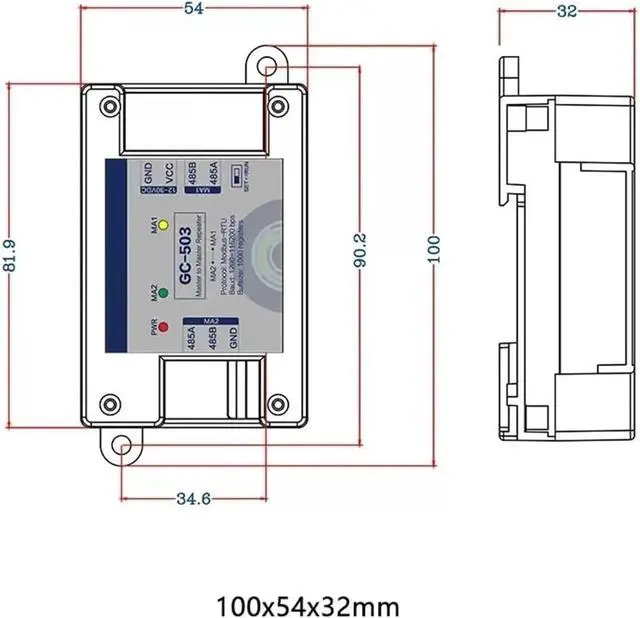

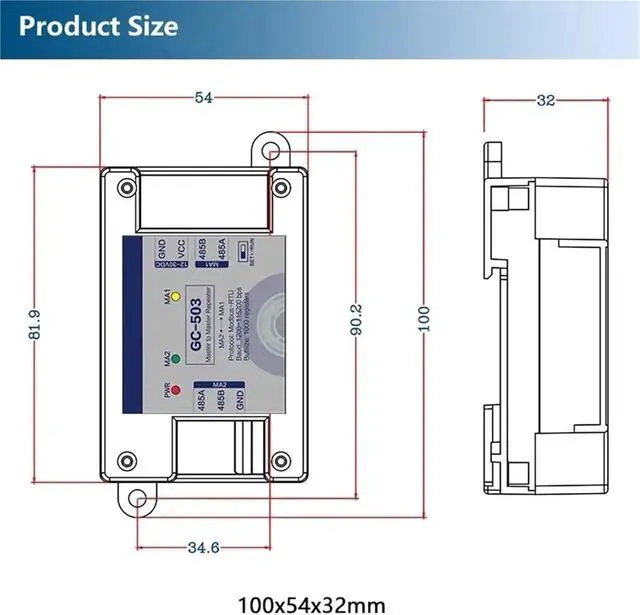

Product size: length, width and height 100x54x32mm (including both ends)
Product weight: 80g (net weight) 100g (gross weight, including accessories and box)
Operating environment: -40~85, relative humidity 5%-95%
Communication parameters
Communication type: Isolated RS-485 (isolation voltage 2500V)
Communication protocol: Modbus RTU (master + slave)
Communication distance: 1200 meters
Baud rate: 1200 -115200bps, default 9600 (8,n,1)
Others: Stop bit can be set, check bit can be set
Protection level: RS-485 interface 600W surge protection per line, ±15KV ESD protection
Interface definition
Main station 2 end
Terminal/Mark/Definition
The 1/485A/MA2 port needs to be connected to the master station, and GND generally does not need to be connected.
The 2/485B/MA2 port needs to be connected to the master station, and GND generally does not need to be connected.
3/GND/MA2 port needs to be connected to the master station, GND generally does not need to be connected
Main station 1 end
Terminal/Mark/Definition
1/GND/power 0V
2/VCC/Power supply 12~30V
3/485B/MA1 interface needs to be connected to the master station
The 4/485A/MA1 interface needs to be connected to the master station
Turn the DIP switch /ON/ to ON, and the module enters configuration mode.
Turn the DIP switch /OFF/ to OFF and the module starts running.
Indicator light description
PWR: power indicator light. Always on means the module is powered
MA1, MA2 interface indicator lights. Flashing indicates that the MA1 and MA2 interfaces are communicating.
==========
