FriendlyElec NanoPi R4S(with MAC chip)
- Hexa-Core RK3399 Dual GbE Open-Source Router · 4GB LPDDR4 RAM MicroSD 2x USB 3.0 · IoT NAS Gateway Container Ready
- Hexa-Core Open-Source Mini Router The FriendlyElec NanoPi R4S is a compact single board computer and wired router powered by the Rockchip RK3399 hexa-core SoC, delivering dual Gigabit Ethernet performance in a tiny 66x66mm footprint with silent passive cooling, purpose-built for IoT, NAS, and smart home applications.
- Powerful RK3399 Hexa-Core SoC Features a 6-core 64-bit processor with dual Cortex-A72 cores at 2.0GHz and quad Cortex-A53 cores at 1.5GHz, paired with 4GB LPDDR4 RAM, Mali-T864 GPU with 4K video decode, MicroSD storage up to 128GB, and RK808-D PMIC for dynamic power management.
- Full-Speed Dual Gigabit Ethernet Equipped with one native Gigabit port and one PCIe Gigabit port, delivering up to 941 Mbps throughput per interface, ideal for high-speed VPN, firewall, and routing workloads without bottlenecks. Passive heatsink design with optional CNC me
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Overview

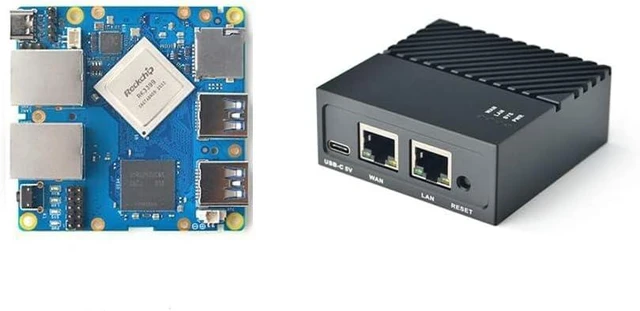

FriendlyElec NanoPi R4S is a compact open-source mini router and single board computer powered by the Rockchip RK3399 hexa-core SoC, built for IoT gateways, NAS applications, and smart home hubs. Its dual Gigabit Ethernet ports, 4GB LPDDR4 RAM, and native OpenWrt support deliver enterprise-grade wired networking in a palm-sized 66x66mm form factor with silent passive cooling.

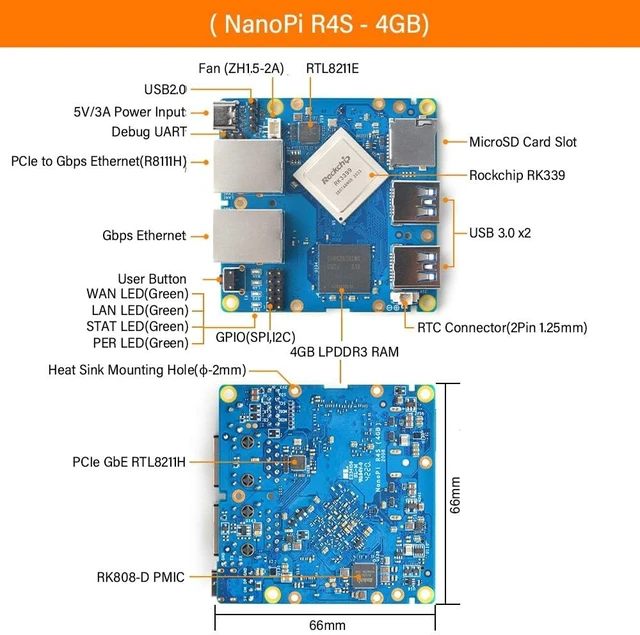

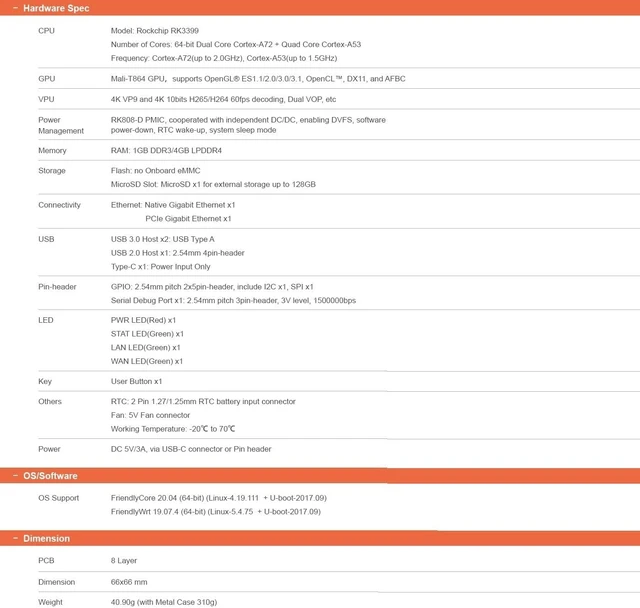

Key Specifications
SoC: Rockchip RK3399, 6-Core (2x Cortex-A72 up to 2.0GHz + 4x Cortex-A53 up to 1.5GHz)
GPU: Mali-T864 with OpenGL ES 3.1, OpenCL, DX11, 4K VP9/H.265/H.264 60fps decode
RAM: 4GB LPDDR4
Storage: MicroSD slot (up to 128GB), no onboard eMMC

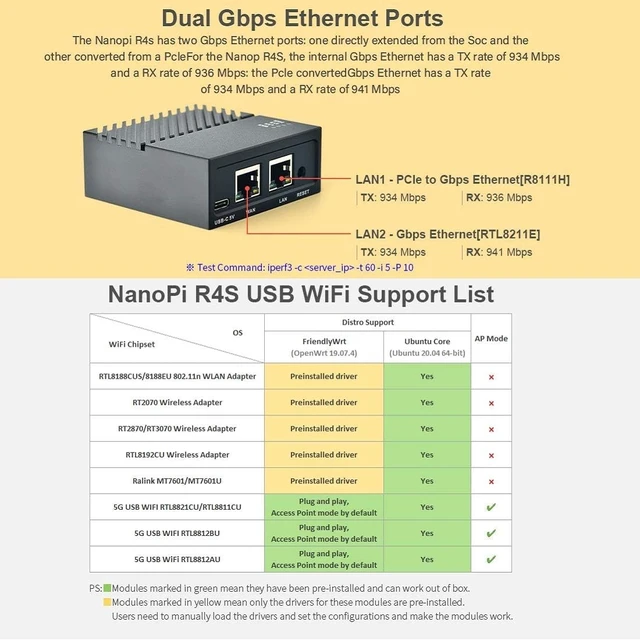

Ethernet: 1x Native Gigabit + 1x PCIe Gigabit, up to 941 Mbps throughput per port
USB: 2x USB 3.0 Type-A, 1x USB 2.0 (4-pin header), 1x USB-C (power input only)
Expansion: 10-pin GPIO header (SPI, I2C), Debug UART (3-pin, 3V, 1500000bps)
Other: RTC battery connector, 5V fan header, user button, 4x status LEDs

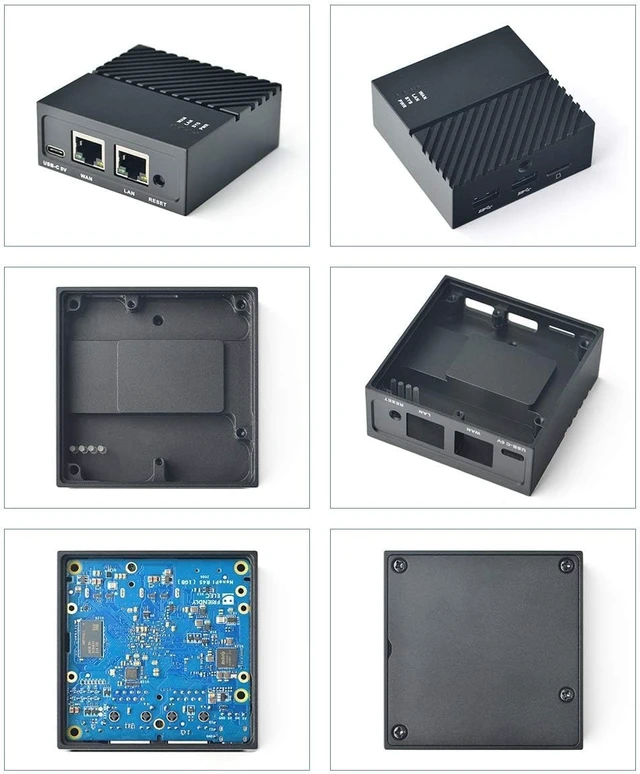

Cooling: Passive heatsink design, optional CNC aluminum case for enhanced dissipation
Power: 5V/3A via USB-C (USB PD not supported), RK808-D PMIC with DVFS
Board Size: 66 x 66mm, 40.9g (310g with metal case, 72x72x29mm with case)
Operating Temp: -20C to 70C
Applications & Use Cases
Deploy as an OpenWrt-powered secure VPN gateway, Pi-hole network-wide ad blocker, lightweight NAS with USB 3.0 storage expansion, container host for home automation services, or edge computing node for IoT sensor aggregation. Ideal for networking enthusiasts, IT professionals, and developers who need a versatile, energy-efficient wired routing platform that stays cool under sustained load.
