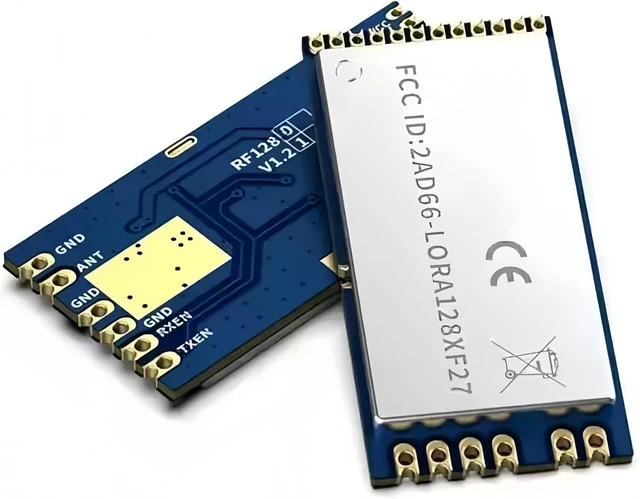

SX1280/SX1281 500mW 2.4GHz LoRa Module (LoRa1280F27-TCXO X 2 PCS)
- There are three types of modules in LoRa128XF27 seriesLoRa1280F27-TCXO, LoRa1280F27 and LoRa1281F27
- This series of modules are designed based on the original sx1280/sx1281 RF chip, the matching of the PA circuit makes the output power of the module up to 500mW(+27dBm).
- In addition, the LoRa1280F27-TCXO module is also equipped with an industrial-grade high-precision TCXO temperature-compensated crystal oscillator, hich guarantees stable frequency output under harsh environments such as high and low temperature.
- The high penetration performance of the2.4GHzfrequency band combined with the LoRa modulation enables the module to have high receiving sensitivity and environmental anti-interference ability
- The whole series of modules are widely used in applications requiring long-distance 2.4GHz transmission
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Features: . Operating frequency range2400-2500MHz
. Maximum output power500mW (27.0dBm)
. Sensitivity : 132dBm@LoRa
. Data transfer rate0.476-202Kbps@LoRa
. LoRa modulation
. Built-in LNA
. High precision crystal oscillator
0.5ppm TCXO/10ppm
Packet communication mode
(receiving FiFo 256 bytes)
Operating voltage range2.0-5.5V
Operating temperature range-40~+85°C
Applications
. Wireless remote
. Smart home
. Tag reader
. Toy control
. Tire pressure monitoring
. Health monitoring
. Maximum output power500mW (27.0dBm)
. Sensitivity : 132dBm@LoRa
. Data transfer rate0.476-202Kbps@LoRa
. LoRa modulation
. Built-in LNA
. High precision crystal oscillator
0.5ppm TCXO/10ppm
Packet communication mode
(receiving FiFo 256 bytes)
Operating voltage range2.0-5.5V
Operating temperature range-40~+85°C
Applications
. Wireless remote
. Smart home
. Tag reader
. Toy control
. Tire pressure monitoring
. Health monitoring
