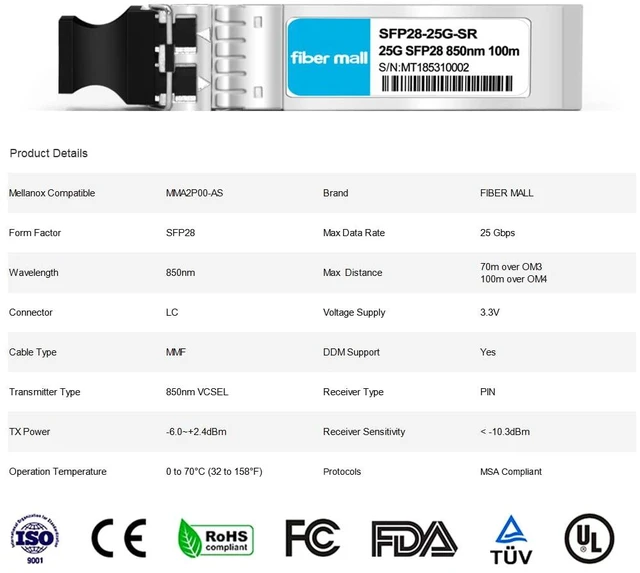

25G SFP28 SR for Mellanox MMA2P00-AS 25GBASE-SR SFP28 850nm 100m DOM LC MMF Optical Transceiver Module

The SFP28 SR transceiver is a single-channel, pluggable fiber SFP28 optical module for 25 Gigabit Ethernet and Infiniband EDR. It is a high-performance short-range data communications module that transmits 70 meters over OM3 multimode fiber and 10 meters over OM4 multimode fiber. The module is designed to use a multimode fiber system with a wavelength of 850nm and an electrical interface using 20 pieces of contact edge type connectors. the SFP 25G SR S optical transceiver complies with multiple standards and specifications such as IEEE 802.3, SFF-8472, SFF-8402, SFF-8432 and SFF-8431 with a center wavelength of 850nm.

Because the transmitter inside the SFP 25G SR optical module is a vertical-cavity surface-emitting laser (VCSEL), it needs to be used with OM3/OM4 multimode fiber with a fiber diameter of 50/125µm, which is a short-range transmission optical module. In addition, SFP28 SR optical module has digital optical monitoring (DOM) function, which can help network management to monitor all aspects of optical module information in real-time, and is mainly used in 25G Ethernet switches, routers, network interface cards and storage network equipment.



1*25G dust cover
1*25Gbps fiber transceiver module
1* package box
Product Size
2.3*0.6*0.4in
Product Dimensions
4*0.78*1.78in

A wide variety usage of ethernet switches adapters routers and any other network device.
for data center server ceterprise service and any other communication links.
Used in the internal network system and video surveillance system of the university research institute.
Data Center
Base Station
Network Storage Device
Fiber Media Converter
Network Switches Router Server
Network Adapter Firewall

Fiber Mall supports regular custom service for your options. such as different compatibility, different SFP connectors and label detailsshipped from China

Fiber Mall is committed to providing integrated cost-effective optical communication products, one-stop solutions and service support for global data centers, cloud computing, enterprise networks, access networks and wireless networks.
We have 10 Years' experience in the global optical communication industry. Save precious time
Description Wide Application
