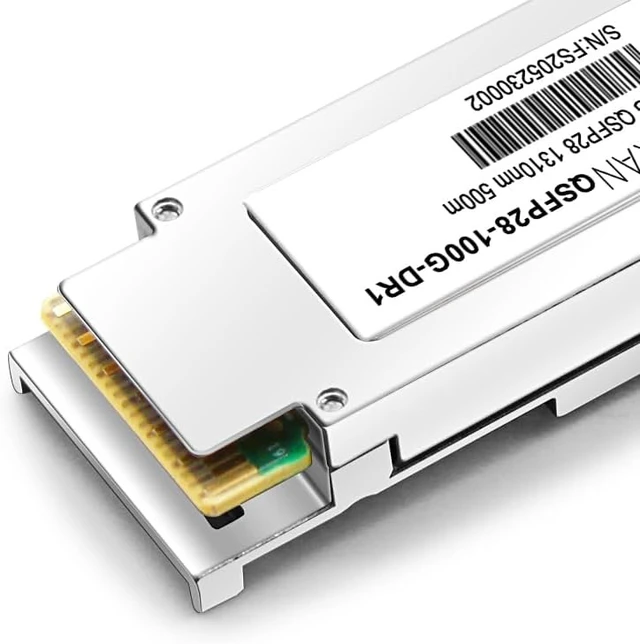

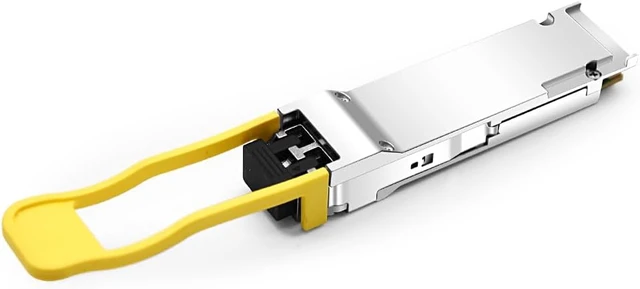

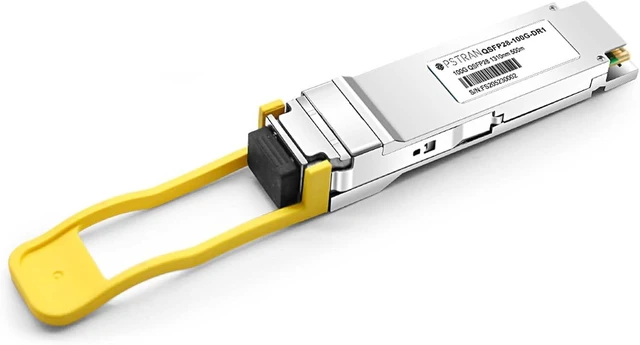

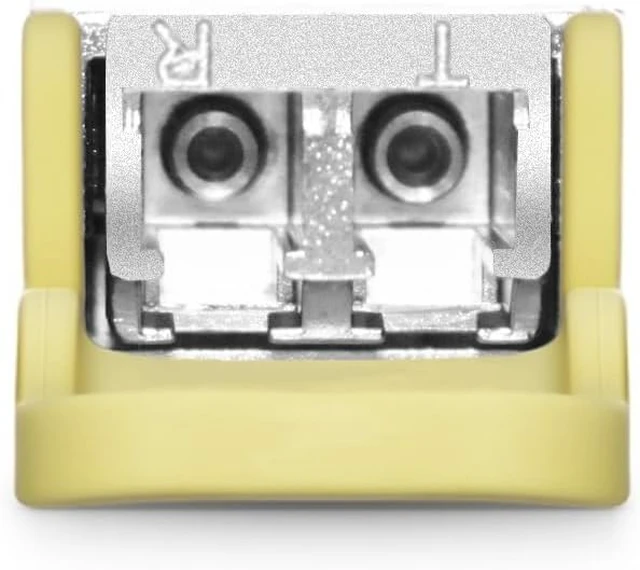

100GBASE-DR QSFP28 Single Lambda Optical Transceiver Module Compatible with EdgeCore ET7402-DR1 1310nm 500m DDM Duplex LC SMF
- QSFP28 100GBASE-DR Single Lambda Optical Transceiver Module, Built-in high performance Chip, Max. Power Consumption 4W enable Prolonged Service Life, Commercial Temperature Range 0 to 70°C (32 to 158°F)
- Tested in Targeted Switches for Superior Performance, Quality, and Reliability. We owns compatibility LAB facilities to meet the EEPROM coding and writing requirements with various brands of the latest and advanced networking equipments to ensure the reliability.
- Built-in Real Time Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
- Interoperate with QSFP-DD-400G-DR4 in 4x100G Breakout, Single Lane Data Path Aligned with Future SFP112 Ports, 100G Single Lambda MSA and RoHS Compliant
- High-speed 4x25G electrical interface (OIF CEI-28G- VSR) Compliant to IEEE 802.3cd, QSFP28 MSA 100GBASE-DR Specification compliant
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
The OPSTRAN 100GBASE-DR Single Lambda QSFP optical transceiver module is designed for use in 100GBASE Ethernet throughput up to 500m over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. The 100 Gigabit Ethernet signal is carried over a single wavelength using onboard PAM4 modulation and FEC. The transceiver includes a high performance chip to convert the 4x25G NRZ electrical signals to a 1x100G PAM-4 optical signal. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as Data Center, 100G Ethernet.
