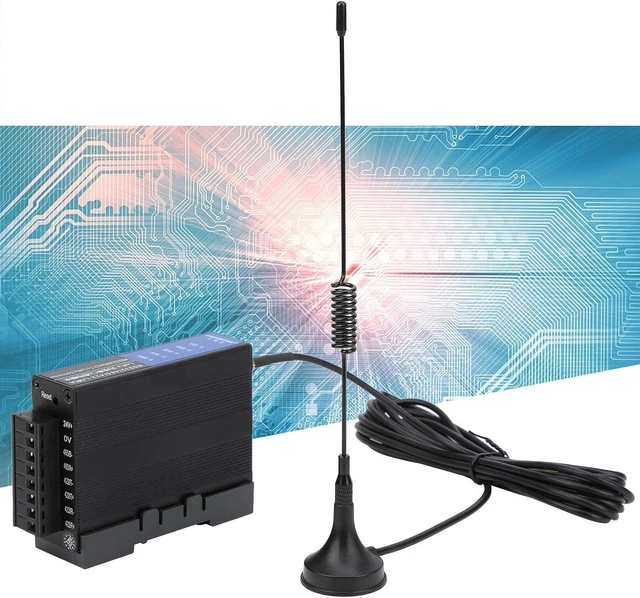

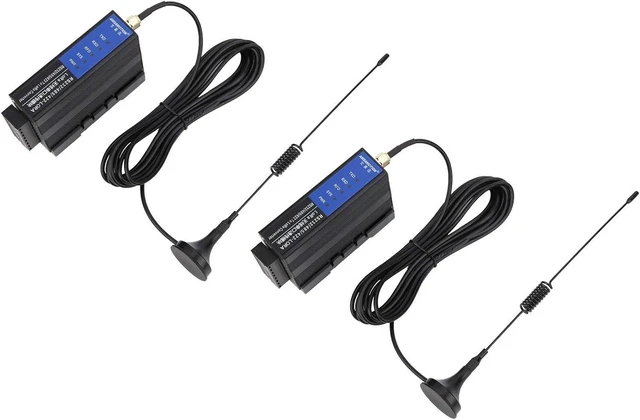

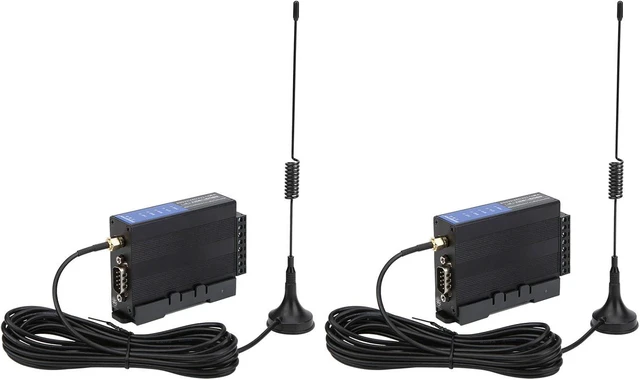

Wireless RF Transceiver Module, Long Range RS232 RS485 RS422 Data Transmission Radio 410MHz to 525MHz DC12 to 36V Aluminum Alloy 2 Pack for Industrial Control
- [410MHZ TO 525MHZ] Supports a 410MHz to 525MHz working frequency range with strong penetration and stable wireless transmission, making it suitable for industrial control and remote monitoring tasks.
- [RS232 RS485 RS422] Built with RS232 RS485 and RS422 communication interfaces, this module fits multiple serial communication systems and supports flexible integration in control equipment.
- [LONG RANGE SIGNAL] Features high receiving sensitivity up to minus 136dBm, strong anti interference performance, and reliable signal transmission for complex environments and open area use.
- [DATA RATE OPTIONS] Supports stream mode and packet mode with default 9600 baud rate and up to 115200 setting through host computer, helping match different data transmission requirements.

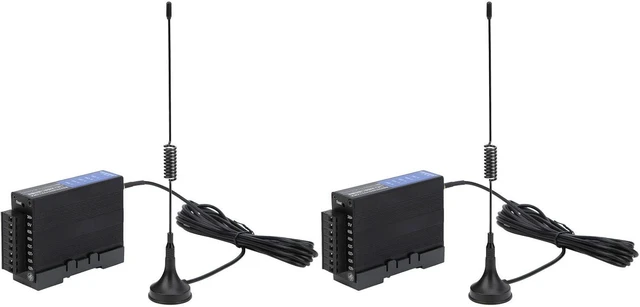

- [DURABLE 2 PACK] Made of aluminum alloy for stable long term use, this set includes 2 wireless transceiver modules and 2 antennas, ideal for point to point two way communication deployment.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Specification:
Item Type: Transceiver Module
Material: Aluminum alloy
Model: RS232/485/422-LORA
Working Voltage: DC12-36V
Communication Interface: RS232/RS485/RS422 (3 kinds of communication interfaces are not independent of each other and cannot be sent and received at the same time)
Baud Rate: Default 9600; check bit and stop bit can be set (up to 115200 can be passed through the host computer)
Communication Distance: (open)
Modulation Method: Lora (with FSK, OOK, GFSK)
Transmission Rate: Lora mode; 0.2-37.5kbps
Working Frequency: 410Mhz-525Mhz
Data Transmission Mode: Support stream mode and packet mode
Streaming Mode: 1 serial port can not send 1
Packet Mode: Wait for the serial port to receive once and then send it wirelessly
Maximum Transmit Power: Maximum 20dbm
Receiving Sensitivity: -136dbm
Working Temperature: -40-+85
Package List:
2 x Antenna
Size: Approx. 60mm / 2.4in
41mm / 1.6in
10mm / 0.4in
5mm / 0.2in
83mm / 3.3in
18mm / 0.7in
4mm / 0.2in
16mm / 0.6in
3mm / 0.1in
7mm / 0.3in
6mm / 0.2in
14mm / 0.6in
25mm / 1in
36mm / 1.4in
1mm / 0.04in
9mm / 0.4in
