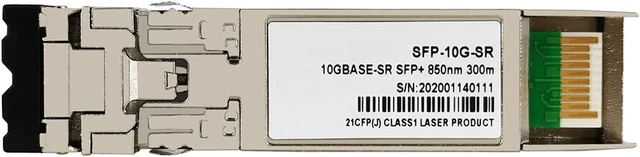

SFP+ 10G Base SR Transceiver, SFP+ to LC Multimode Module 850nm MMF, up to 300 Meters10Pack

High Performance Low power consumption <1W,
saving power 2ns typical latency,
MTBF over 1 million hours -5~70 operating temperature
Stainless steel material, anti-corrosion and salt spray resistance
The optical power is launched into MMF.
PECL input, internally AC-coupled and terminated.
Measured with a PRBS 231-1 test pattern @10312Mbps, BER 1×10-12. Internally AC-coupled.
Compliant with ITUT and IEEE recommendation MASK
Notes:
Plug Seq.: Pin engagement sequence during hot plugging.
1) TX Fault is an open collector output, which should be pulled up with a 4.7k~10k resistor on the host board to a voltage between 2.0V and Vcc+0.3V. Logic 0 indicates normal operation; Logic 1 indicates a laser fault of some kind. In the low state, the output will be pulled to less than 0.8V.
2) Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V. 3) LOS is open collector output. Should be pulled up with 4.7k~10k on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.
4) RD-/+: These are the differential receiver outputs. They are internally AC-coupled 100 differential lines which should be terminated with 100 (differential) at the user SERDES.
5) TD-/+: These are the differential transmitter inputs. They are internally AC-coupled, differential lines with 100 differential termination inside the module.
Applications 10GBASE-SR at 10.3125Gbps 10GBASE-SR at 10.3125Gbps CPRI at 10.137Gbps Other Optical links
Operating case temperature: Standard: 0 to +70°C Industrial: -40 to +85°C
