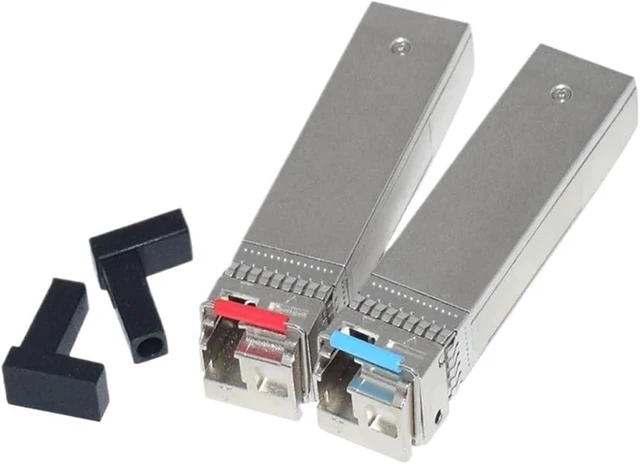

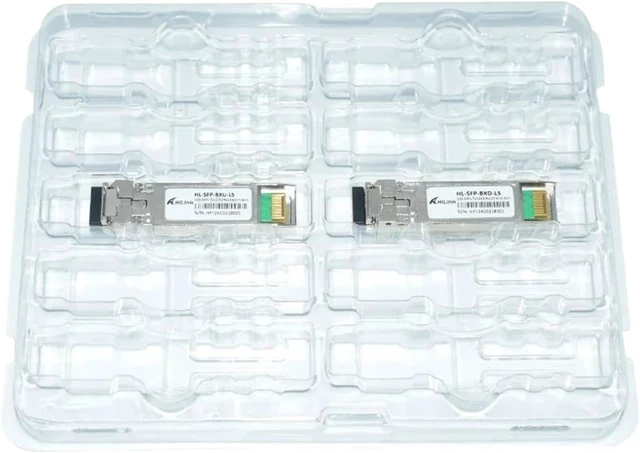

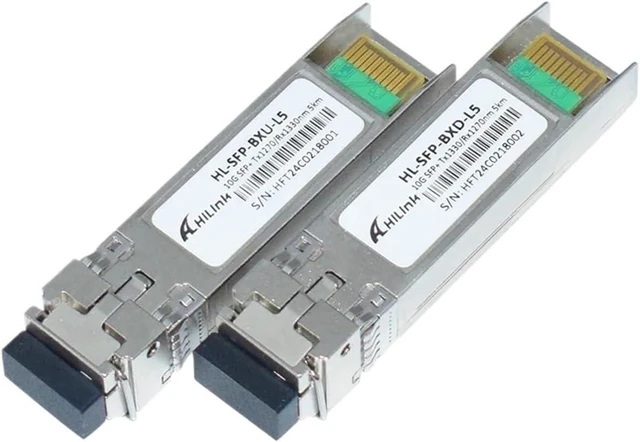

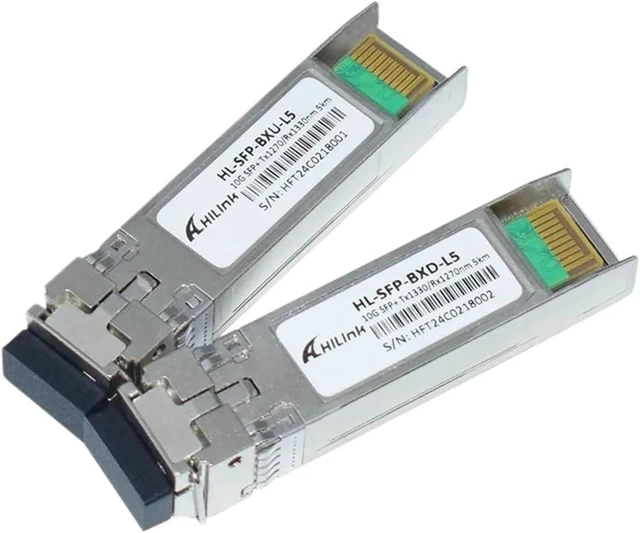

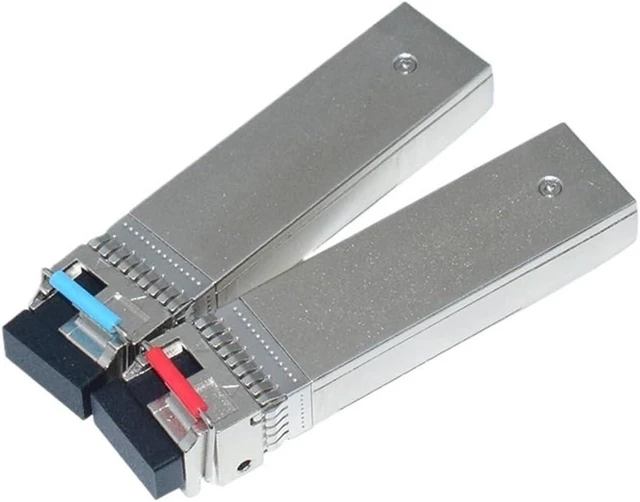

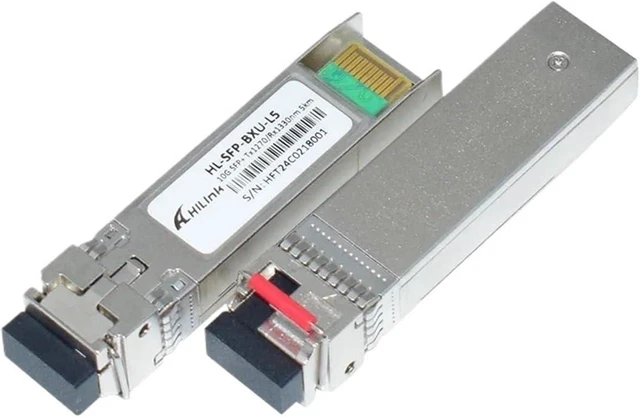

10Gb/s 5KM 10G SFP+ BIDI 1270/1330nm LC SFP Transceivers (Color : 1 Pair)

10Gb/s 5KM 10G SFP+ BIDI 1270/1330nm LC SFP Transceivers
10G BIDI 1270/1330nm SFP+ 5KM
General
The HL-SFP-BXU-L5/HL-SFP-BXD-L5Transceiver is intended for5kmreach service from 0.6Gb/s to 10.3125Gb/s BI-direction single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.
The low jitter and low bit error rate optical assembly features a DML laser transmitter and PIN/TIA receiver. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.
Product Feature
Operating data rate up to 10.3125Gbps
Up to5kmtransmission distance
High sensitivityPINphotodiode and TIA
12dB Power Budget at Least
LC singleconnector
pluggable 20pin connector
<;1.2W
Single +3.3V±5% power supply
Compliant with SFF-8472&SFF8431
Fully Compliant
Compliant with IEEE8023ae 10GBASE-LR/LW
Operating temperature range:
Commercial: 0°C to +70°C
Industrial: -40°C to +85°C
Application
10GBASE-LRat10.31Gbps
10GBASE-LWat9.95Gbps
OtherOpticalLinks
Order information:

Part Number
Product Description
HL-SFP-BXU-L5
10G SFP+5km BIDItransceiver 1270 Tx/ 1330 Rx,C-TEMP
HL-SFP-BXD-L5
10G SFP+5kmBIDItransceiver 1330 Tx/ 1270 Rx,C-TEMP
HL-SFP-BXU-L5
10G SFP+5km BIDItransceiver 1270 Tx/ 1330 Rx,I-TEMP
HL-SFP-BXD-L5
10G SFP+5kmBIDItransceiver 1330 Tx/ 1270 Rx,I-TEMP
