Gigabit Internet 1550nm 1.25G 40KM SMF SingleMode 1550nm Dual LC SFP Transceiver(2 pcs)

Fiber Optic Receivers
Gigabit Internet 1550nm 1.25G 40KM SMF SingleMode 1550nm Dual LC SFP
General
The SFP transceiversarehigh performance, cost effective modulessupporting data-rate of 1.25Gbps and40km transmission distance with SMF.
The transceiver consists ofthreesections: a DFBlaser transmitter,aPIN photodiode integrated with a trans-impedance preamplifier(TIA)and MCU control unit. Allmodules satisfy class I laser safety requirements.
Thetransceivers are compatible with SFP Multi-Source Agreement() and SFF-8472.For further information, please refer to SFP .
1000BASE-40KMSFP:
1.25G 1310nm SFP Transceiver
1.25G 1550nm SFP Transceiver
Features
Data-rate of 1.25Gbps operation
1550nmDFBlaser and PIN photodetector for40km transmission
Compliant with SFP and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibrationor External Calibration
Compatible with SONET OC-24-LR-1
Compatible withRoHS
+3.3V single power supply
Operating case temperature:
Standard :0 to +70°C
Industrial : -40 to +85°C
Applications
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
When bidding the product, please leave message for your switch .
1.25G SFP Transceivers
GLC-SX
100BASE-SX SFP 850nm LC 550M
GLC-LX/LH
100BASE-LH SFP 1310nmLC 10KM
GLC-EX-1310
100BASE-EX SFP 1310nm LC 40KM
GLC-EX-1550
100BASE-EX SFP 1510nm LC 40KM
GLC-ZX
100BASE-ZXSFP 1550nm LC 80KM
GLC-ZX-120
100BASE-ZX SFP 1510nm LC 120KM
GLC-ZX-160
100BASE-ZX SFP 1550nm LC 160KM
GLC-ZX-200
100BASE-ZX SFP 1550nm LC 200KM

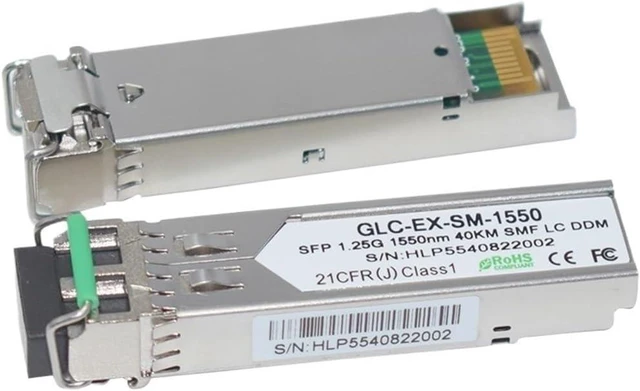

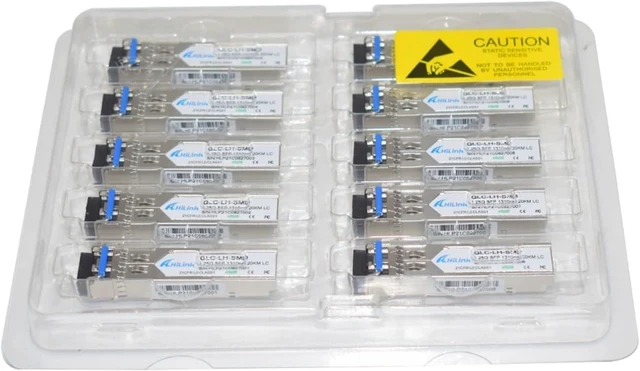

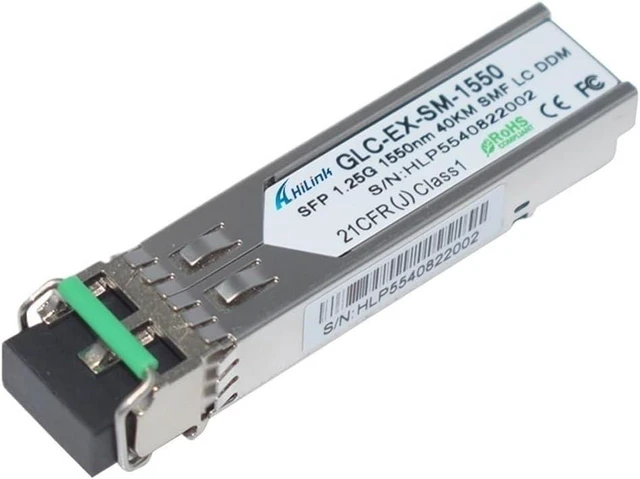

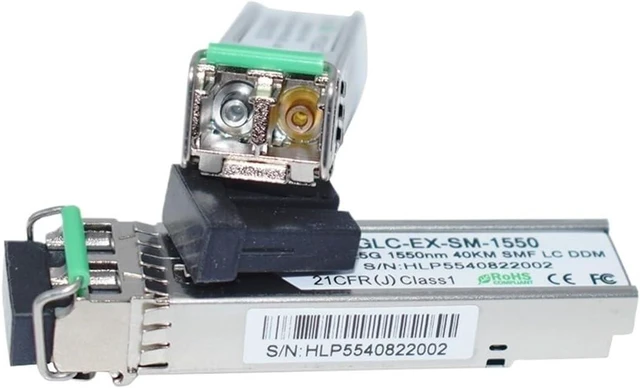

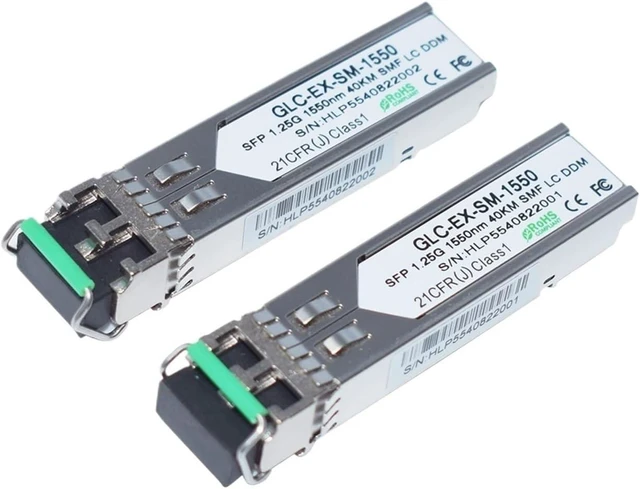

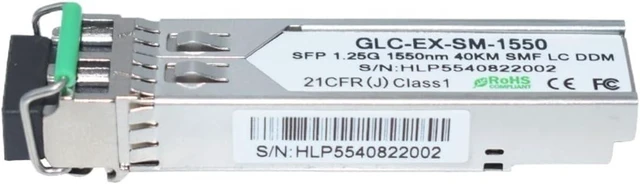

Product Show
Mechanical Specifications:
