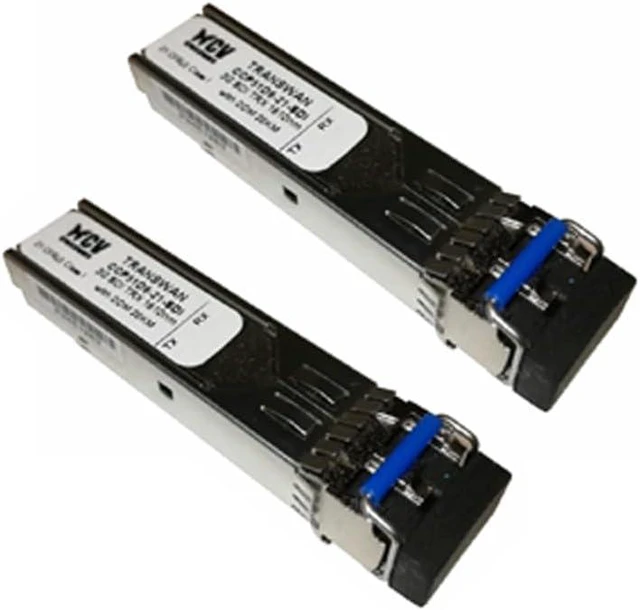

3G SDI SFP Transceiver with 2 x LC, CWDM 1510nm SDI Video SFP Optical Module 20 Km (12.4 Miles) for SD/HD/3G-SDI 1080P with MSA Pin Assignment and DDM, Supports All Pathological Patterns
- SMPTE 424M/297M/259M/292M compliant.
- Robust error free transmission of uncompressed signals, under worst-case conditions and 3Gbps video pathological signals
- Supports video pathological patterns for SD-SDI,HD-SDI and 3G-SDI
- SFP Package.Hot-pluggable
- Digital diagnostics (DDM) and control via I2C interface, Laser disable pin
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
CCP51D6-21-SDI is a optical CWDM 1510nm wavelength transceiver module designed to transmit and receive optical serial digital signals as defined in SMPTE 297- 2006. The CCP51D6-21-SDI is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.
Key parameters:
Bit Rate: 50 Mbps~3.0Gbps
Transmitter wavelength: CWDM 1510
Receive wavelength: 1260~1620nm
Output power: -5~0db
Saturation:>-6db
DDM: Yes
Connector: Dual LC
Distance: 20 Km
Working temperature: 0~70'C
PIN assignment: MSA standard
Package:
2 pieces x CCP51D6-21-SDI
Key parameters:
Bit Rate: 50 Mbps~3.0Gbps
Transmitter wavelength: CWDM 1510
Receive wavelength: 1260~1620nm
Output power: -5~0db
Saturation:>-6db
DDM: Yes
Connector: Dual LC
Distance: 20 Km
Working temperature: 0~70'C
PIN assignment: MSA standard
Package:
2 pieces x CCP51D6-21-SDI
