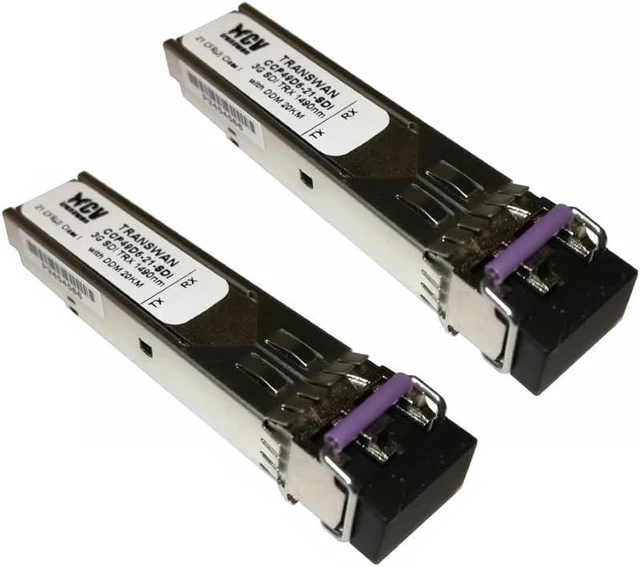

3G SDI Video SFP Transceiver with Dual LC, CWDM 1490nm SDI SFP Optical Module 20Km (12.4 Miles) for SD/HD/3G-SDI Video with MSA pin Assignment and DDM, Supports All pathological Patterns
- Supports video pathological patterns for SD-SDI,HD-SDI and 3G-SDI
- SMPTE 424M/297M/259M/292M compliant.
- Robust error free transmission of uncompressed signals, under worst-case conditions and 3Gbps video pathological signals
- Digital diagnostics (DDM) and control via I2C interface, Laser disable pin. SFP Package.Hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
CCP49D6-21-SDI is a optical CWDM 1490nm wavelength transceiver module designed to transmit and receive optical serial digital signals as defined in SMPTE 297-2006. The CCP49D6-21-SDI is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.
Key parameters:
Bit Rate: 50 Mbps~3.0 Gbps
Transmitter wavelength: CWDM 1490
Receive wavelength: 1260~1620nm
Output power: -5~0db
Saturation:>-6db
DDM: Yes
Connector: Dual LC
Distance: 20 Km
Working temperature: 0~70'C
PIN assignment: MSA standard
Package:
Package contains: 2 pieces x CCP49D6-21-SDI
Key parameters:
Bit Rate: 50 Mbps~3.0 Gbps
Transmitter wavelength: CWDM 1490
Receive wavelength: 1260~1620nm
Output power: -5~0db
Saturation:>-6db
DDM: Yes
Connector: Dual LC
Distance: 20 Km
Working temperature: 0~70'C
PIN assignment: MSA standard
Package:
Package contains: 2 pieces x CCP49D6-21-SDI
