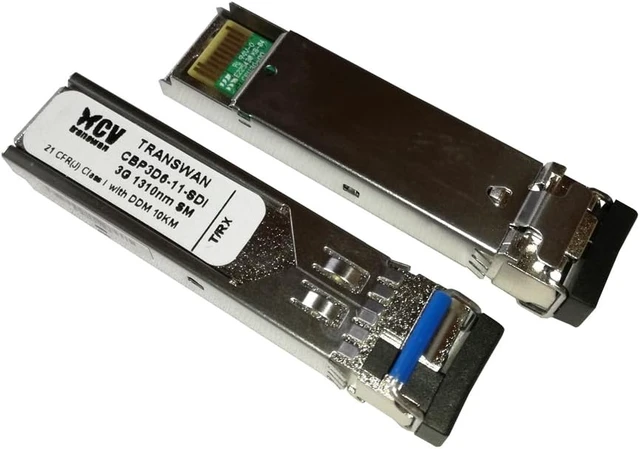

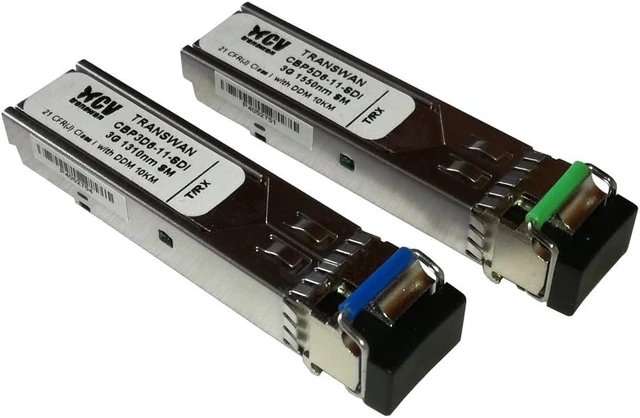

3G-SDI SFP Transceiver, Bi-directional 1310nm/1550nm 3G/HD/SD-SDI SFP Module 10Km (6.2 Miles) for SD/HD/3G-SDI 1080P with MSA Pin Assignment and DDM, Supports SMPTE Pathological Patterns
- Supports video pathological patterns for SD-SDI,HD-SDI and 3G-SDI
- Robust error free transmission of uncompressed signals
- Under worst-case conditions and 3Gbps video pathological signals
- Digital diagnostics (DDM) and control via I²C interface
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
The CBP3D6-11-SDI and CBP5D6-11-SDI are the optical transceiver module designed to transmit and receive optical serial digital signals as defined in SMPTE 297-2006. They are specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.
Key parameters:
Bit Rate: 50~3000Mbps
Transmitter wavelength:
1310nm Tx/1550nm Rx, 1550nm Tx/1310nm Rx
Receive wavelength: 1260~1620nm
Output power: -8~-2db
DDM: Yes
Connector: 1 x LC
Distance: 10 Km
Working temperature: 0~70'C
PIN assignment: MSA standard
Package
The price in pair includes 1 x CBP3D6-11-SDI and 1 x CBP5D6-11-SDI
Gross weight: 50g for one pair
Key parameters:
Bit Rate: 50~3000Mbps
Transmitter wavelength:
1310nm Tx/1550nm Rx, 1550nm Tx/1310nm Rx
Receive wavelength: 1260~1620nm
Output power: -8~-2db
DDM: Yes
Connector: 1 x LC
Distance: 10 Km
Working temperature: 0~70'C
PIN assignment: MSA standard
Package
The price in pair includes 1 x CBP3D6-11-SDI and 1 x CBP5D6-11-SDI
Gross weight: 50g for one pair
