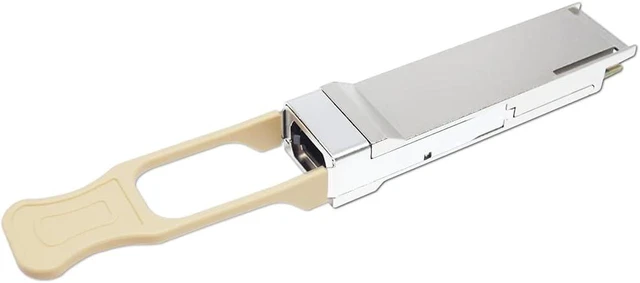

40G QSFP+ eSR4 Fiber Optic Transceiver, 850nm MMF, OM3 300M/OM4 400M, Compatible QSFP+ Module, Made in Taiwan, 1pc
- Data Rate: 40Gb/s; Wavelength: 850nm; Connector: MTP/MPO
- Link distance 300m over MM OM3 fiber, 400m over MM OM4 fiber
- Compliant with SFF-8436 QSFP+ MSA; Hot Pluggable
- Wide Compatibility for Cisco, Juniper, and other open switches
- TAA compliant; Accept customized orders. Please tell us what brand and model name of host equipment you will apply. We need to know what coding to be input for you
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
40G QSFP+ eSR4 Transceiver
Hot Pluggable, MPO / MTP, 850nm VCSEL, MMF 300M
Features
Compliant with IEEE802.3ba 40GBASE-SR4
Compliant with SFF-8436 QSFP+ MSA
Support InfiniBand QDR
4 independent full-duplex channels
Up to 11.2Gbps data rate per channel
Hot Pluggable
850nm VCSEL array transmitter
MPO-12 receptacle connector
2-wire interface for management and diagnostic monitor compliant with SFF-8436, SFF-8636
Single 3.3V power supply
Link distance 300m over MM OM3 fiber, 400m over MM OM4 fiber
RoHS Compliant
Applications
40Gb Ethernet
OTN OTU3 @43.01G, OTU3e2 @44.58G
Breakout to 4 x 10GBASE-SR Ethernet
InfiniBand QDR interconnects
Data Center & Storage
Datacom / Telecom Switch & Router
