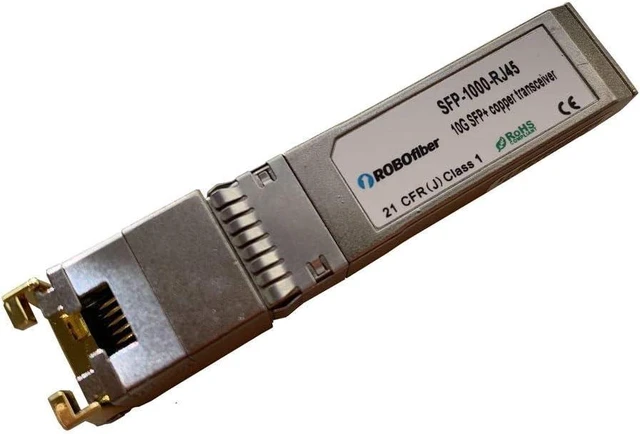

SFP-1000-RJ45 - 10GBase-T Copper SFP+ Transceiver Module
- Supports Links up to 30m using Cat 6A Cable, SFF-8431 and SFF-8432 MSA Compliant, IEEE 802.3az and 802.3an Compliant, IEEE 802.3bz for 5G&2.5G BASE-T
- Hot-pluggable SFP+ footprint, TX Disable and RX Los function, Fully metallic enclosure for Low EMI Emissions, +3.3V single power supply
- Low Power Consumption (2.5W MAX @ 30m), Compact RJ-45 connector assembly, Access to physical layer IC via 2-wire serial bus, XFI/5GBASE-R/2500BASE-X/SGMII, SGMII Auto-Negotiation On
- Auto-negotiates with other 10GBase-T PHYs, Supports 100/1000Base-T using Cat 5e cable or better, MDI/MDIX Crossover, Multiple Loopback Modes for Testing and Troubleshooting
- Built-in Cable Monitoring and Link Diagnostic, Unshielded and Shielded cable support, Operating case temperature range of 0°C to +70°C
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
The SFP-1000-RJ45 module is a copper SFP+ supporting 10GBase-T copper Ethernet standard, but also supporting 5GBase-T, 2.5GBase-T and even 100/1000Base-Tx Gigabit Ethernet standard. Module is compatible with 10G Ethernet SFP+ ports available on various networking devices. The copper SFP+ can operate up to 30m over Cat6a copper cable. The copper transceiver supports IEEE 802.3bz for 5G&2.5G BASE-T connections and if host supports SGMII interface it can also connect 100/1000Base-T. SFP modules are extremely versatile, working with any active equipment that support the SFP type of interface: Ethernet switches, routers and any other networking equipment. Our SFPs have been tested and found 100% compatible with various Ethernet switches from major manufacturers.
