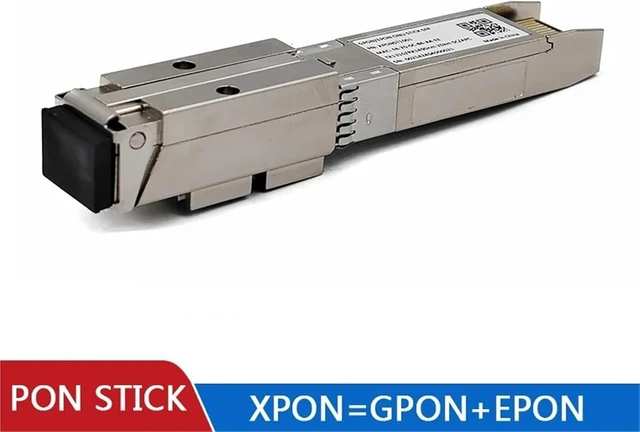

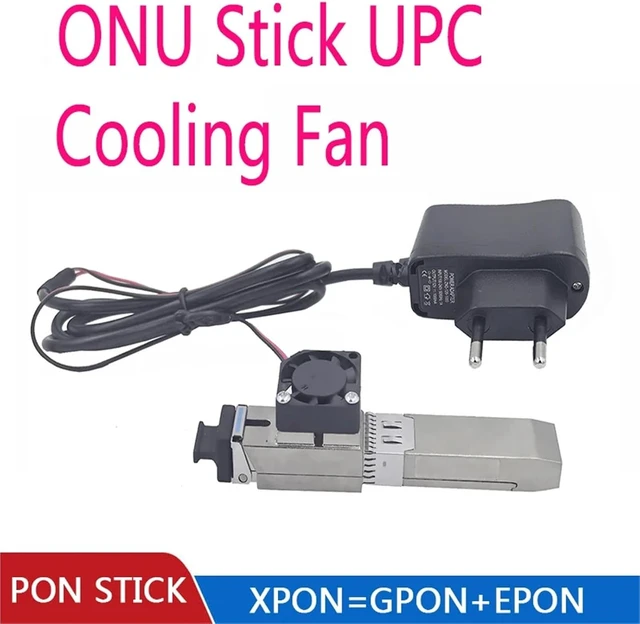

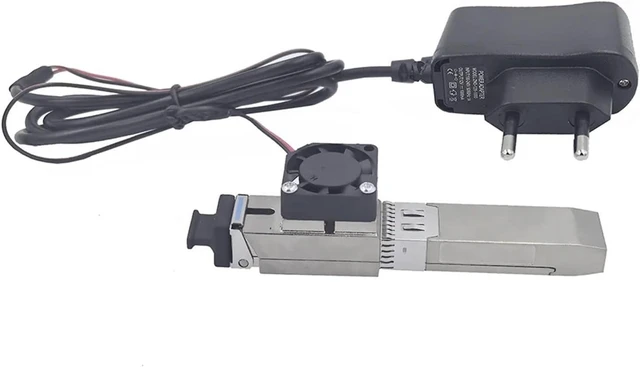

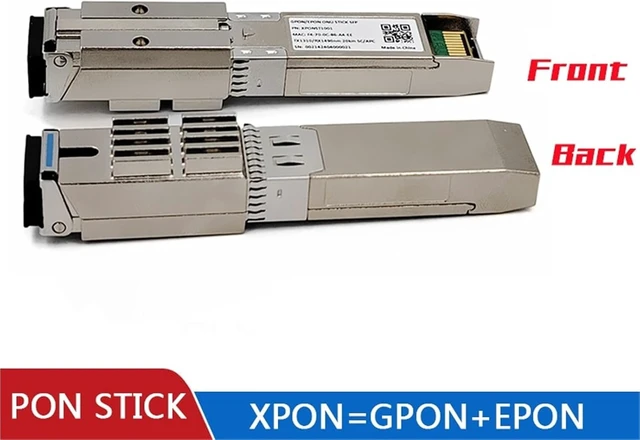

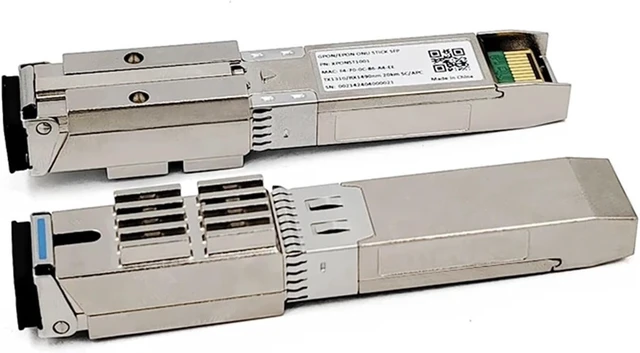

SFP Module PON Stick EPON GPON XPON SFP ONU Stick with MAC SC Connector pon Module(XPON UPC Fan)
- 1.Compatible with multiple brands, ensuring versatile use across multiple brands.
- 2.Low cost, low power consumption, and low latency.
- 3.Versatile SFP fiber module suitable for a range of devices, from switches to transceivers, ensuring broad applicability.
- 4.Undergoes rigorous testing in our Signal Integrity Lab for guaranteed performance and reliability.
- 5.Plug and play convenience with SFP hot-swappable design, making installation a breeze for your fiber optic module.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
PON STICK EPON GPON XPON SFP ONU Stick With MAC SC Connector pon module HGU 1490/1330nm PPPoE IPoE 1.25Gbps 802.3ah
EPON stick without WEB management interface.GPON Stick and XPON Stick with WEB management.

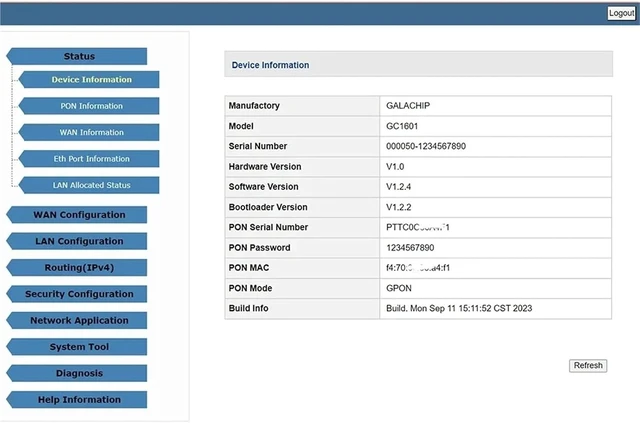

WEB Management:192.168.1.1 User: admin Password:admin
EPON/GPON SFP ONU Stick With MAC SC Connector DDM pon module
EPON=EPON1.25Gbps GPON=GPON 2.5G XPON=XPON 1.25G/2.5G
Product Features
Single fiber bi-directional data links asymmetric TX 1244Mbps / RX 2488Mbps EPON ONU
application with EPON MAC
function.
· SC/UPC receptacle SFP with EPON ONU MAC inside, "Plug-and-play" via auto-discovery and configuration
· 1310nm DFB burst mode transmitter, 1490nm TIA continuous mode receiver
· Single 3.3V power supply
· Digital diagnostic monitor interface compatible with SFF-8472
· Low EMI and excellent ESD protection
· RoHS compliance
· EPON ONU compatible
· Complies with SFP Multi-Source Agreement SFF-8074i
· Complies with ITUT-T G.984.2, G.984.2 Amendment 1
· Complies with ITUT G.988 ONU management and control interface (OMCI) specification
Main parameters and technical indicators
The main parameters of the xPON network are as follows:
Multi-service support capability: Full-service (including ATM, Ethernet, TDM) support capabilities with strict QoS guarantees, optimized for services, and support for downlink cable TV transmission through WDM;
Automatic identification and management of EPONaccess cards;
Support branching capability of 1:32;
Transmission distance is not more than 20 kilometers;
The uplink and downlink symmetric line rate is 1.244Gbit/s. It supports port traffic statistics.
Support dynamic and static bandwidth allocation.
Support multicast and multicast functions
The main technical indicators of xPON network:
(1) System capacity: The system has a large-capacity IP switching core (30G) to provide 10G Ethernet network interfaces, and each OLT can support 36 PON networks.
(2) Multi-service interface: Support TDM, ATM, Ethernet, CATV, and provide strict QoS guarantee, which can fully cover existing services. Really support the smooth upgrade of the business.
(3) High reliability and availability requirements of the system: The system provides an optional 1+1 protection switching mechanism to fully meet the network reliability requirements of the telecommunication network, and the switching time is less than 50ms.
(4) Network range: configurable 10,20Km network path, fully meet the requirements of the access network.
(5) Unified system management software platform: a unified network management platform for different access methods
==========
Power Source : Non-Powered
Wireless function : No
Connector Type : SC/UPC
EPON stick without WEB management interface.GPON Stick and XPON Stick with WEB management.
WEB Management:192.168.1.1 User: admin Password:admin
EPON/GPON SFP ONU Stick With MAC SC Connector DDM pon module
EPON=EPON1.25Gbps GPON=GPON 2.5G XPON=XPON 1.25G/2.5G
Product Features
Single fiber bi-directional data links asymmetric TX 1244Mbps / RX 2488Mbps EPON ONU
application with EPON MAC
function.
· SC/UPC receptacle SFP with EPON ONU MAC inside, "Plug-and-play" via auto-discovery and configuration
· 1310nm DFB burst mode transmitter, 1490nm TIA continuous mode receiver
· Single 3.3V power supply
· Digital diagnostic monitor interface compatible with SFF-8472
· Low EMI and excellent ESD protection
· RoHS compliance
· EPON ONU compatible
· Complies with SFP Multi-Source Agreement SFF-8074i
· Complies with ITUT-T G.984.2, G.984.2 Amendment 1
· Complies with ITUT G.988 ONU management and control interface (OMCI) specification
Main parameters and technical indicators
The main parameters of the xPON network are as follows:
Multi-service support capability: Full-service (including ATM, Ethernet, TDM) support capabilities with strict QoS guarantees, optimized for services, and support for downlink cable TV transmission through WDM;
Automatic identification and management of EPONaccess cards;
Support branching capability of 1:32;
Transmission distance is not more than 20 kilometers;
The uplink and downlink symmetric line rate is 1.244Gbit/s. It supports port traffic statistics.
Support dynamic and static bandwidth allocation.
Support multicast and multicast functions
The main technical indicators of xPON network:
(1) System capacity: The system has a large-capacity IP switching core (30G) to provide 10G Ethernet network interfaces, and each OLT can support 36 PON networks.
(2) Multi-service interface: Support TDM, ATM, Ethernet, CATV, and provide strict QoS guarantee, which can fully cover existing services. Really support the smooth upgrade of the business.
(3) High reliability and availability requirements of the system: The system provides an optional 1+1 protection switching mechanism to fully meet the network reliability requirements of the telecommunication network, and the switching time is less than 50ms.
(4) Network range: configurable 10,20Km network path, fully meet the requirements of the access network.
(5) Unified system management software platform: a unified network management platform for different access methods
==========
Power Source : Non-Powered
Wireless function : No
Connector Type : SC/UPC
