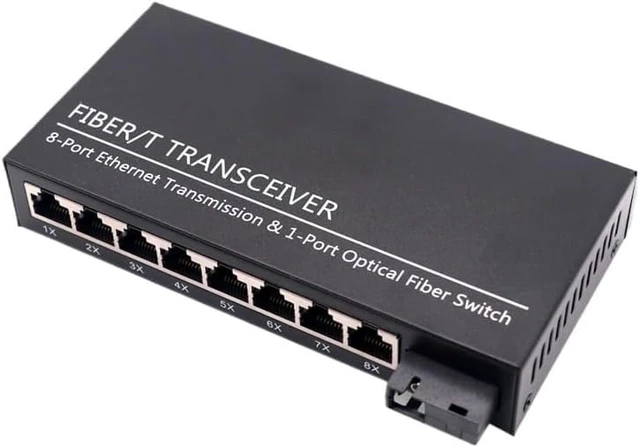

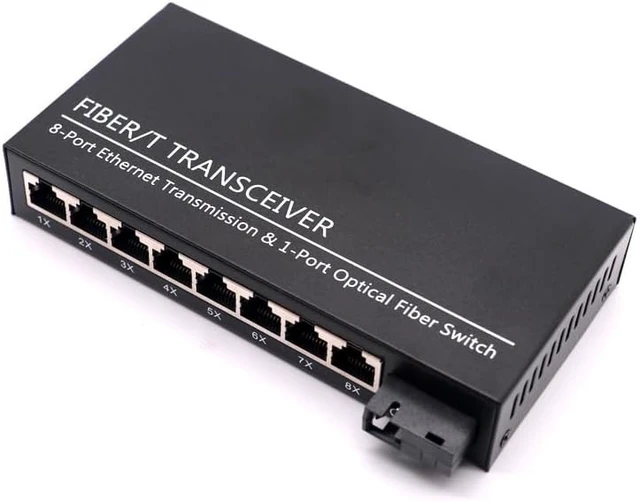

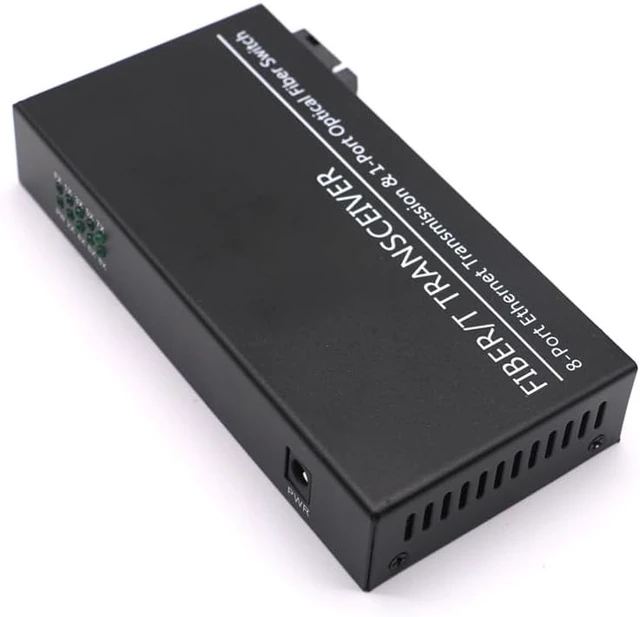

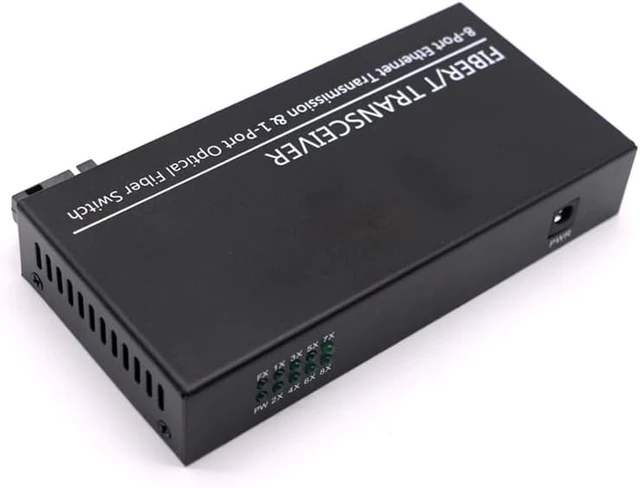

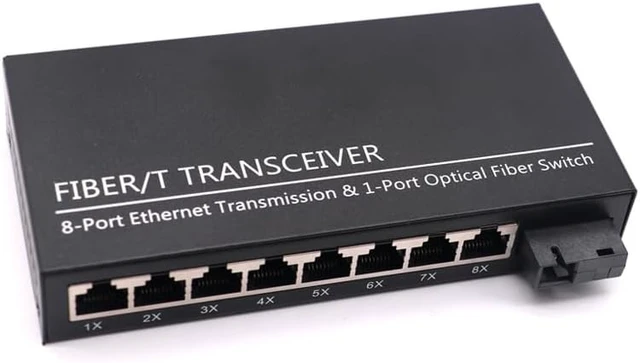

2PCS 100M Fiber Optic transceiver 1 Optical 8 Electrical Single Mode Single Fiber Video Surveillance 20km Converter

Network Transceivers
Item number: FBYG100S8TX
Model: G100S-8TX
Interface type: Single SC interface
Cable type: single mode dual core 9/125um
Transmission distance: 20km (km)
Transmission method: single mode single fiber
Emission wavelength: 1310 (nm)
Transmit power: -15~-7dBm (dbm)
Voltage input: 5(V)
Size: 94x70x26 (mm)
Ethernet fiber optic transceiver:
The FBY-G100 series is a 10/100M adaptive Ethernet external power optical fiber transceiver that can convert 10/100BASE-TX twisted pair electrical signals and 100BASE-FX optical signals to each other. It extends the transmission distance limit of the network from 100 meters of copper wire to 2 kilometers (multimode fiber) and 120 kilometers (single-mode fiber). It can easily realize the interconnection between HUB, SWITCH, server, terminal and remote terminal. The FBY-G100 series Ethernet optical fiber transceiver is plug-and-play and can be used as a single machine or multiple machines integrated into the same chassis. Its characteristic is that it can transmit and receive optical signals at the same time using only optical fibers.
Application areas:
Telecommunications, electric power, radio and television, transportation, industry, medical care, aerospace and computers as well as broadband access, broadband cable TV, fiber-to-the-home systems, community network construction, campus broadband construction, security monitoring systems and radio and television transmission, etc., and is being applied to Development at a broader and deeper level.
Product model
Working wavelength
Optical port rate
Transmission distance
Transmit power
Receive sensitivity
Number of interfaces
Remark
G100M-2KM
850/1310nm
155MPb/s
2km
-20~-12dBm
-30dBm
1 optical port + 1 network port
Dual fiber bidirectional, external power supply
G100S-20KM
1310nm
155MPb/s
20km
-15~-7dBm
-34dBm
1 optical port + 1 network port
Dual fiber bidirectional, external power supply
G100S-40KM
1310nm
155MPb/s
40km
-9~-5dBm
-36dBm
1 optical port + 1 network port
Dual fiber bidirectional, external power supply
G100S-60KM
1550nm
155MPb/s
60km
-5~-2dBm
-36dBm
1 optical port + 1 network port
Dual fiber bidirectional, external power supply
G100S-80KM
1550nm
155MPb/s
80km
-5~0dBm
-37dBm
1 optical port + 1 network port
Dual fiber bidirectional, external power supply
G100S-2TX
1310nm
155MPb/s
20km
-15~-7dBm
-34dBm
1 optical port + 2 network ports
Dual fiber bidirectional, external power supply
G100S-4TX
1310nm
155MPb/s
20km
-15~-7dBm
-34dBm
1 optical port + 4 network ports
Dual fiber bidirectional, external power supply
G100S-8TX
1310nm
155MPb/s
20km
-15~-7dBm
-34dBm
1 optical port + 8 network ports
Dual fiber bidirectional, external power supply
G100S-2FX-3TX
1310nm
155MPb/s
20km
-15~-7dBm
-34dBm
2 optical ports + 3 network ports
Dual fiber bidirectional, external power supply
G100S-2FX-4TX
1310nm
155MPb/s
20km
-15~-7dBm
-34dBm
2 optical ports + 4 network ports
Dual fiber bidirectional, external power supply
G100S-2FX-6TX
1310nm
155MPb/s
20km
-15~-7dBm
-34dBm
2 optical ports + 6 network ports
Dual fiber bidirectional, external power supply
G100S-8FX-2TX
1310nm
155MPb/s
20km
-15~-7dBm
-34dBm
8 optical ports + 2 network ports
Dual fiber bidirectional, external power supply
