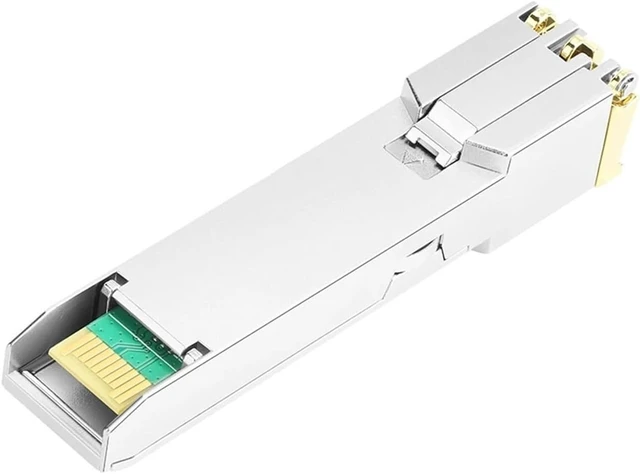

RJ45 SFP Copper Module 10G 02314PHV Compatible 10GBASE-T SFP+ Copper 30m RJ-45 Transceiver Module(1pcs-30M)
- Network Transceivers
- RJ45 SFP Copper Module 10G 02314PHV Compatible 10GBASE-T SFP+ Copper 30m RJ-45 Transceiver Module
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Network Transceivers
1.PRODUCT FEATURES
lSupport 10Gbase-T / 5Gbase-T / 2.5Gbase-T on line port
lSupport 10Gbase-R on host port
lHot-pluggable SFP footprint
lCompact RJ-45 connector assembly
lRoHS compliant and lead-free
lSingle +3.3V power supply
l10 Gigabit Ethernet over 6a cable
lAmbientOperating temperature:0°C to+70°C
2.PRODUCT DESCRIPTION
10G-T30Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Agreement () . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-Tstandards as specified in IEEE Std 802.3 .10G-T30uses the SFP's RX_LOS(must be pulled up on host) pin for link indication. If pull up or open SFP's TX_DISABLE pin, PHY IC be reset.

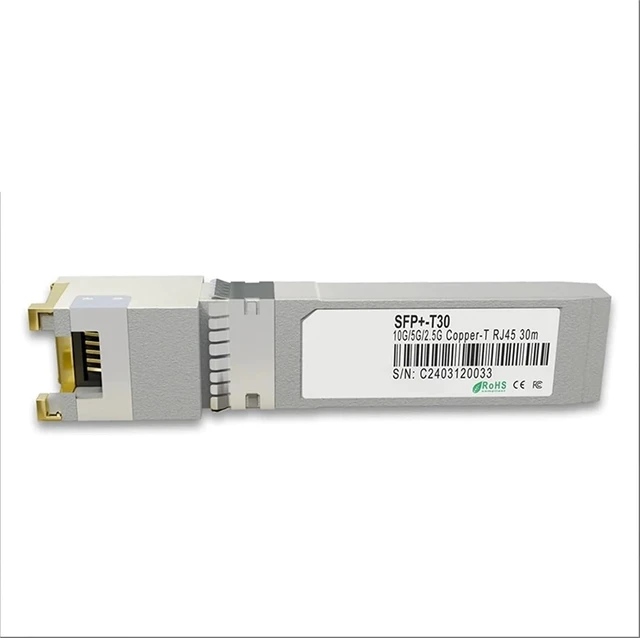

Model Number : YT-SFP+-T30
Connector : RJ45
Transmission Distance : 30m
Speed Support : 2.5G/5G/10G
Transmission Data Rate : 10G
Fiber Type : Copper SFP
1.PRODUCT FEATURES
lSupport 10Gbase-T / 5Gbase-T / 2.5Gbase-T on line port
lSupport 10Gbase-R on host port
lHot-pluggable SFP footprint
lCompact RJ-45 connector assembly
lRoHS compliant and lead-free
lSingle +3.3V power supply
l10 Gigabit Ethernet over 6a cable
lAmbientOperating temperature:0°C to+70°C
2.PRODUCT DESCRIPTION
10G-T30Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Agreement () . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-Tstandards as specified in IEEE Std 802.3 .10G-T30uses the SFP's RX_LOS(must be pulled up on host) pin for link indication. If pull up or open SFP's TX_DISABLE pin, PHY IC be reset.
Model Number : YT-SFP+-T30
Connector : RJ45
Transmission Distance : 30m
Speed Support : 2.5G/5G/10G
Transmission Data Rate : 10G
Fiber Type : Copper SFP
