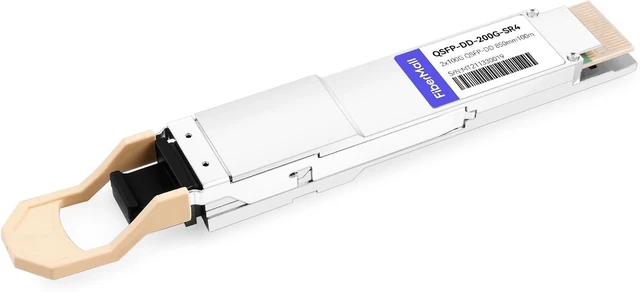

200G QSFP-DD SR4 Optical Transceiver Module, Compatible with Cisco QDD-2X100-SR4-S 200GBASE-SR4 850nm 100m DDM MPO-24 MMF
- QSFP-DD 200GBASE-SR4 Optical Transceiver Module (850nm MTP/MPO-16 MMF 70m/100m OM3/OM4 DDM)
- Built-in high performance Chip, Max.Power Consumption 4.5W enable Prolonged Service Life, Commercial Temperature Range 0 to 70°C (32 to 158°F)
- Built-in Real Time Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
- Support 2x100G Breakout for Higher Port Density and Easy Migration to 200G Platforms, 8x25G NRZ Retimed 200GAUI-8 Electrical Interface
- Hot Pluggable QSFP-DD Form Factor, Compliant with QSFPDD MSA CMIS V4.0, High-speed Electrical Compliant to IEEE 802.3bs IEEE 802.3bm
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
ul>
2X100G QSFP-DD SR4 transceiver provides 200GBase-SR4 throughput up to 100m over multi-mode fiber (MMF) using a wavelength of 850nm via an MPO-16 connector. It supports Digital optical monitoring (DOM).
Product Features
Cisco Compatible:QDD-2X100-SR4-S
Form Type: QSFP-DD
Vendor Name: Fiber Mall QSFP-DD MPO Type Transceiver
850nm VCSEL Laser
2x100Gb/s aggregated bidirectional data throughput
Contain clock and data recovery (CDR)
Supports 2x100 Gbps data rate links of up to 70m via OM3 MMF and 100m via OM4 MMF
3.3V single power supply
Power consumption <5W
Hot pluggable electrical interface
Standard Optical fiber with MPO-12 two row optical connector
Compliant with QSFP-DD MSA
Compliant with IEEE 802.3bm 100GBASE- SR4 standards
Digital diagnostic functions (Via I2C)
Compliant with RoHS
Applications
100Gb/s Ethernet
Proprietary multichannel links
Package

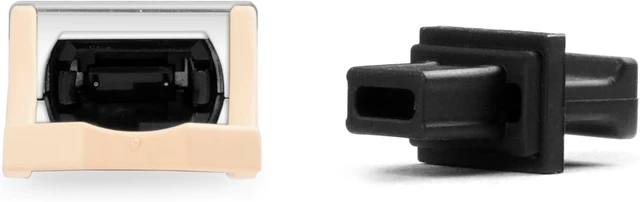

1*sfp dust cover
1 *pair 200Gbps QSFP-DD SR4 fiber transceiver module
1* package box
2X100G QSFP-DD SR4 transceiver provides 200GBase-SR4 throughput up to 100m over multi-mode fiber (MMF) using a wavelength of 850nm via an MPO-16 connector. It supports Digital optical monitoring (DOM).
Product Features
Cisco Compatible:QDD-2X100-SR4-S
Form Type: QSFP-DD
Vendor Name: Fiber Mall QSFP-DD MPO Type Transceiver
850nm VCSEL Laser
2x100Gb/s aggregated bidirectional data throughput
Contain clock and data recovery (CDR)
Supports 2x100 Gbps data rate links of up to 70m via OM3 MMF and 100m via OM4 MMF
3.3V single power supply
Power consumption <5W
Hot pluggable electrical interface
Standard Optical fiber with MPO-12 two row optical connector
Compliant with QSFP-DD MSA
Compliant with IEEE 802.3bm 100GBASE- SR4 standards
Digital diagnostic functions (Via I2C)
Compliant with RoHS
Applications
100Gb/s Ethernet
Proprietary multichannel links
Package
1*sfp dust cover
1 *pair 200Gbps QSFP-DD SR4 fiber transceiver module
1* package box
