10/100/1000BASE Ethernet GLC-T Electrical Port GLC-T Copper RJ45 Optical Transceiver (Color : 1 pc)

10/100/1000BASE Ethernet GLC-T Electrical Port GLC-T Copper RJ45 Optical
10/100/1000Mbase 100M RJ45 Copper
General
HL-GLC-TCopper Small Form Pluggable (SFP)transceiversis high performance, cost effective compliant with the Gigabit Ethernet and1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, whichsupp-orting 1000Mbps data- rate up to 100 meters over unshieldedtwisted-pair category 5 cable. Themodulesupports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. Themoduleprovidesstandard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also beaccessed via 2wire serial bus at address ACh.
Product Feature
Up to 1.25Gb/s bi-directional data links
-pluggable SFP footprint
TXDisableand RX Los/without Losfunction
Fully metallic enclosure for low EMI
+3.3V single power supply
Low power dissipation (1.05 W typical)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
1000 BASE-T operation in host systems withSERDESinterface
10/100/1000Mbpscompliantin host systems with SGMII interface
Operating case temperature range of
Standard : 0 to +70°C
Industrial : -40 to +85°C
Application:
1.25 Gigabit Ethernet over 5 cable

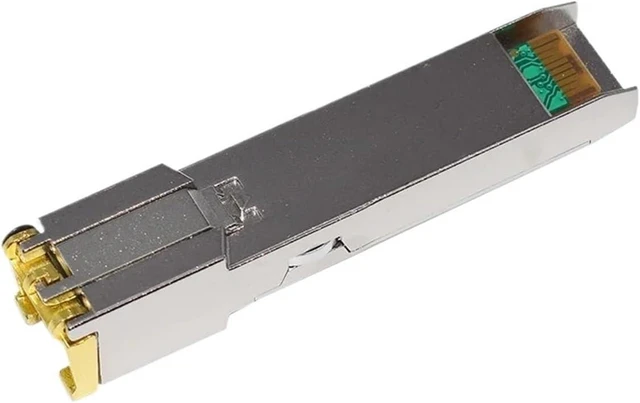

Product Picture Show
10G-SFP-T
