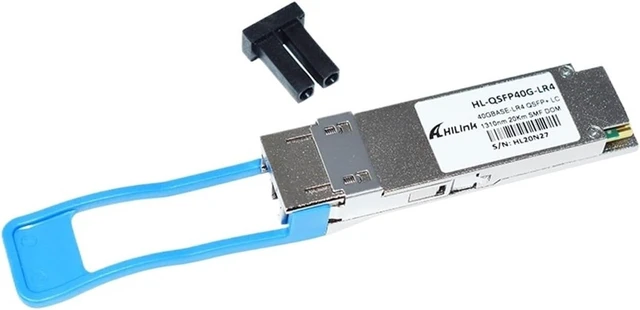

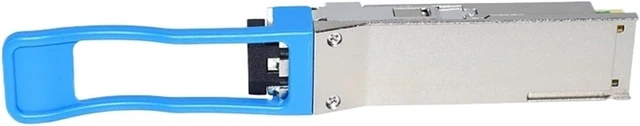

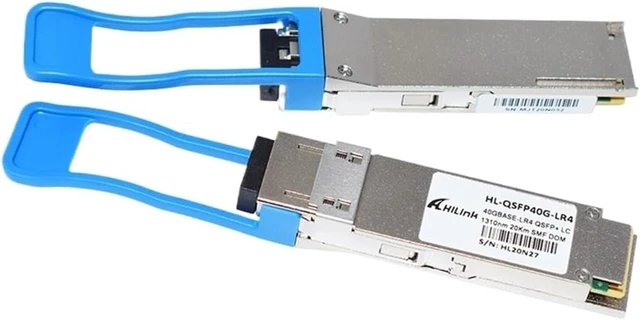

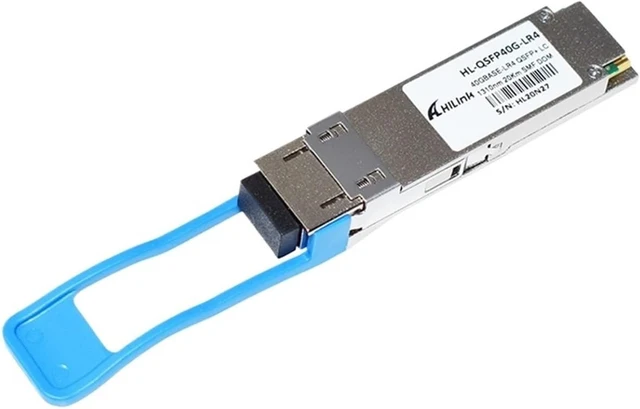

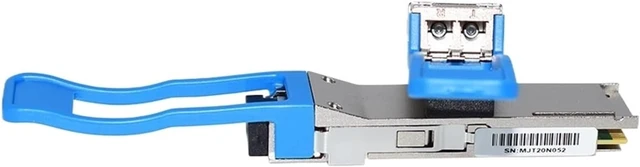

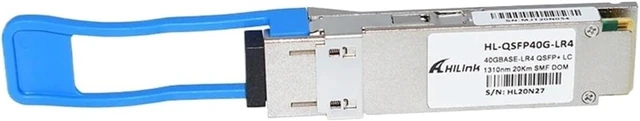

1-5 Pcs QSFPLR4 Compatible 40GBASE-LR4 QSFP+ 1310nm 20km LC DOM Optical Transceiver(1 PC)

Fiber Optic Products / Fiber Optic Receivers
40G QSFP+ LR4 SMF 1270~1330nm 20KM LC Optical Transceiver
This product is a transceiver designed for 2m-20km optical communication applications. The design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this .

Product Features
4 independent full-duplex channels
Up to 11.2Gbps data rate per channel
MTP/MPO optical connector
QSFP+ compliant
Up to 20 km transmission
Digital diagnostic capabilitie
CML compatible electrical I/O
Single +3.3V power supply
Operating case temperature: 0°C to 70°C(Standard), -40°C to 85°C (Industrial)
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard
-6 complia
Applications
.40GBASE-LR4 Ethernet Links
. QDR and DDR interconnects
Client-side 40G Telecom connections
Mechanical Dimensions
Product display
