433MHz RS232 RS485 TCXO E62-DTU-433D30 Wireless Transceiver 30dBm 3km Full Duplex Long Range 433 MHz FHSS rf Module
- Features: All core components are originally imported; our transceiver modems have much advanced functions with smaller size and lower cost. The top TX power is 1W, all technical parameters meet European industrial standards.
- Temperature compensators are adopted to make the frequency stability better than ±1.5PPM. Operation temperature range: -40~+85C, applicable for various harsh environment, it is real industrial grade products.
- Aluminum alloy case, compact size, great heat dispersion; good shielding , prime electromagnetic compatibility and strong anti-interference. Power reverse & overload protection and antenna surge protection functions significantly improve the reliability.
- Parameters can be configured by programming, such as TX power, frequency point, air data rate, address and so on. Ultra-low power consumption, standby current is only 40mA (even lower under power-saving and sleep modes), TX current < =0.3A
- Embedded watch-dog and precise time layout, modem will restart au
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

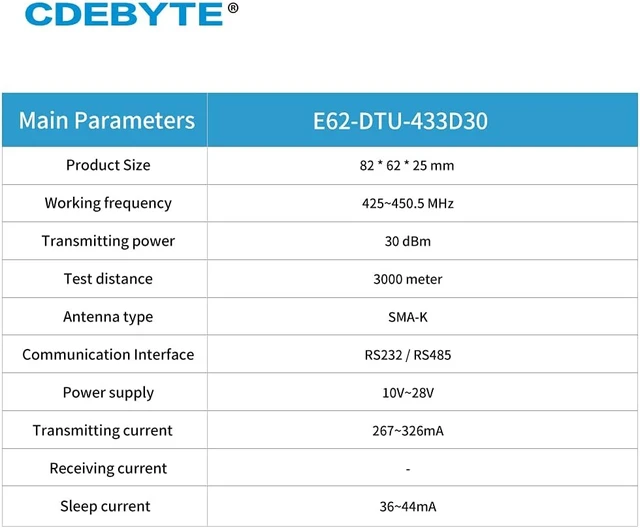

[Frequency] : 425~450.5MHz
[Power] : 30dBm
[Distance] : 3.0km
[Interface] : RS232 / RS485
[Introduction] : E62-DTU (433D30) is a full duplex wireless data transmission module for point-to-point transmission( Has both RS232 and RS485), transmission power is 100mW, transparent transmission mode, working in 433MHz band.
This module has the function of frequency hopping spread spectrum (FHSS), in the process of digital transceiver module both sides according to the frequency hopping algorithm automatically synchronous jump in as many as 50 frequency points (user customizable FM and sequence number), and greatly improve the anti-interference of the module.

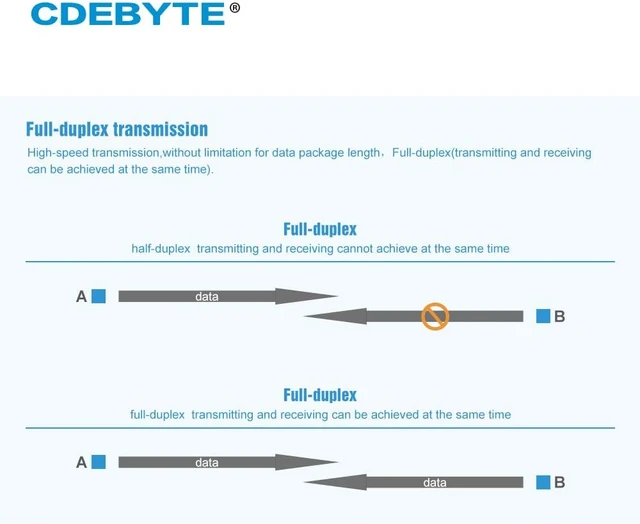

The 433m frequency hopping technology in a leading position in the industry module with time full duplex (TDD) features, at the same time of receiving data, can send data, without waiting for receiving complete in some air rate and serial port baud rate can be realized under the combination of full duplex serial transmission.
For example: under the air rate of 64k, the serial port baud rate can be realized under 9600 BSP and full-duplex data transmission in a row, in this case, there is no limit to send and receive the packet size, module can keep low latency/high response at the same time, to ensure that the data is transmitted to the other party as soon as possible.
E62-DTU (433D30) strictly abides by domestic and foreign design specifications such as FCC, CE and CCC, and meets various radio-frequency related certifications and export requirements.
[Power] : 30dBm
[Distance] : 3.0km
[Interface] : RS232 / RS485
[Introduction] : E62-DTU (433D30) is a full duplex wireless data transmission module for point-to-point transmission( Has both RS232 and RS485), transmission power is 100mW, transparent transmission mode, working in 433MHz band.
This module has the function of frequency hopping spread spectrum (FHSS), in the process of digital transceiver module both sides according to the frequency hopping algorithm automatically synchronous jump in as many as 50 frequency points (user customizable FM and sequence number), and greatly improve the anti-interference of the module.
The 433m frequency hopping technology in a leading position in the industry module with time full duplex (TDD) features, at the same time of receiving data, can send data, without waiting for receiving complete in some air rate and serial port baud rate can be realized under the combination of full duplex serial transmission.
For example: under the air rate of 64k, the serial port baud rate can be realized under 9600 BSP and full-duplex data transmission in a row, in this case, there is no limit to send and receive the packet size, module can keep low latency/high response at the same time, to ensure that the data is transmitted to the other party as soon as possible.
E62-DTU (433D30) strictly abides by domestic and foreign design specifications such as FCC, CE and CCC, and meets various radio-frequency related certifications and export requirements.
