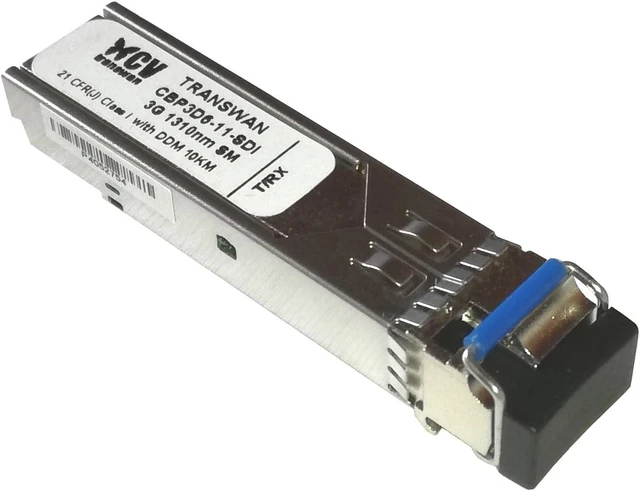

3G SDI Singlemode SFP Optical Module, Bi-directional 1310nm Tx /1550nm Rx 3G Video SFP Transceiver 10Km (6.2 Miles) with MSA Pin Assignment and DDM, Supports SMPTE Pathological Patterns
- Supports video pathological patterns for SD-SDI,HD-SDI and 3G-SDI
- Robust error free transmission of uncompressed signals, 10 Kilometers (6.2 Miles) at SMF.
- Under worst-case conditions and 3 Gbps video pathological signals
- Digital diagnostics (DDM) and control via I2C interface
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
CBP3D6-11-SDI is the optical transceiver module designed to transmit and receive optical serial digital signals as defined in SMPTE 297-2006. They are specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.
Key parameters:
Bit Rate: 50M~2.97Gpbs
Transmitter wavelength:
1310nm DFB laser Tx/1550nm Rx
Receive wavelength: 1260~1620nm
Output power: -8~-2db
DDM: Yes
Connector: single LC
Distance: 10 Km
Working temperature: 0~70'C
PIN assignment: MSA standard
Package: 1 x CBP3D6-11-SDI
Key parameters:
Bit Rate: 50M~2.97Gpbs
Transmitter wavelength:
1310nm DFB laser Tx/1550nm Rx
Receive wavelength: 1260~1620nm
Output power: -8~-2db
DDM: Yes
Connector: single LC
Distance: 10 Km
Working temperature: 0~70'C
PIN assignment: MSA standard
Package: 1 x CBP3D6-11-SDI
