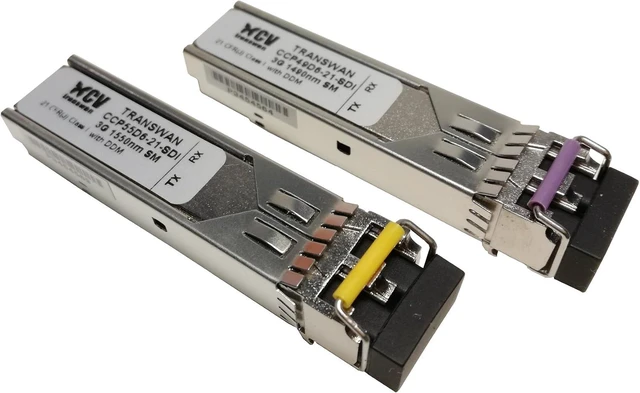

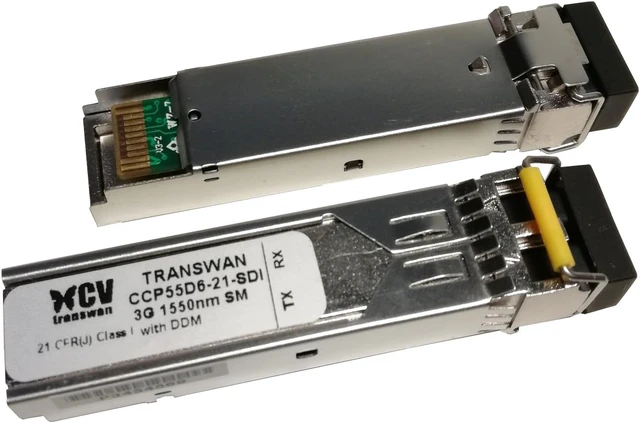

3G-SDI video SFP Transceiver Module, CWDM 1470,1490,1510,1530,1550,1570, 1590, 1610nm SDI SFP 20 Km for SD/HD/3G-SDI 1080P with MSA pin assignment and DDM, Supports Pathological Patterns
- Wavelength can be selected from 1470~1610nm;
- Robust error free transmission of uncompressed signals; Under worst-case conditions and 3 Gbps video pathological signals
- Supports video pathological patterns for SD-SDI,HD-SDI and 3G-SDI
- SFP Package.Hot-pluggable
- Digital diagnostics (DDM) and control via I²C interface
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
CCPxxD6-21-SDI is a single channel optical transceiver module designed to transmit and receive optical serial digital signals as defined in SMPTE 297-2006. The CCPxxD6-21-SDI is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.
Key parameters:
Bit Rate: 50~3000Mbps
Transmitter wavelength:
CWDM 1470,1490,1510,1530,1550,1570, 1590, 1610nm optional, please kindly advise the specific wavelength once order confirmed
Receive wavelength: 1260~1620nm
Output power: -5~0db
DDM: Yes
Connector: Dual LC
Distance: 20 Km
Working temperature: 0~70'C
PIN assignment: MSA standard
Package: The price is for 2 pieces Modules with the same wavelength of what you select
Key parameters:
Bit Rate: 50~3000Mbps
Transmitter wavelength:
CWDM 1470,1490,1510,1530,1550,1570, 1590, 1610nm optional, please kindly advise the specific wavelength once order confirmed
Receive wavelength: 1260~1620nm
Output power: -5~0db
DDM: Yes
Connector: Dual LC
Distance: 20 Km
Working temperature: 0~70'C
PIN assignment: MSA standard
Package: The price is for 2 pieces Modules with the same wavelength of what you select
