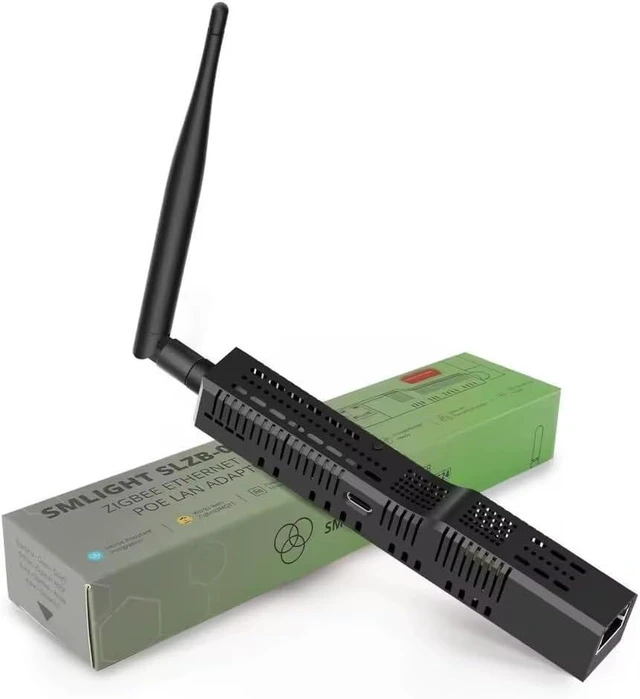

SLZB-06MG24 U (2026 Model) - Zigbee 3.0 to Ethernet, USB, and WiFi Coordinator with PoE, Based on SL EFR32MG24. Best with ZHA/OpenThread + Home Assistant. Faster ESP32 S3 SoC vs SLZB-06MG24
- SLZB-06MG24U is a Zigbee to Ethernet/USB/WiFi adapter with POE support, comes pre-flashed and ready to use. Can be used as a Zigbee 3.0 gateway in the open source automation platforms Zigbee2MQTT, Home Assistant, ZHA.
- SLZB-06MG24U is upgraded with a more powerful ESP32-S3. Best for use with ZHA (SLZB-06MU, SLZB-06MG24U, SLZB-06MG26U).
- If using zigbee2mqtt, consider SLZB-06 series (SLZB-06U, SLZB-06P7U, SLZB-06P10U) or SLZB-MRxU series instead.
- EFR32MG24 can also be flashed with OpenThread firmware to support Thread devices. If Zigbee + Thread support is required, consider the SLZB-MRxU series of devices.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
SLZB-06MG24U specifications:
Wireless SoCs
Silicon Labs EFR32MG24 Arm Cortex-M4F microcontroller @ 48 MHz with 352KB flash, 256KB ROM for protocols and library functions, 80+8KB SRAM, integrated power amplifier, Bluetooth 5.2 Low Energy and 802.15.4 radios
Espressif Systems ESP32-S3 dual-core processor @ 240MHz with 448 KB ROM, 520 KB SRAM, 16 KB SRAM in RTC, WiFi and BLE connectivity
Connectivity
Ethernet RJ45 port with PoE support (IEEE 802.3af) implemented through Microchip LAN8720 10/100M Ethernet controller
2.4 GHz WiFi up to 100 Mbps
Zigbee 3.0 support
+5dB SMA antenna included
USB USB Type-C port for data and power
Misc 4x user LEDs, 1x button
Power Supply
oInput 5V/200mA via USB or PoE
Dimensions 160 x 26 x 22mm
Operating temperature: +5C - +35C
Note:
SLZB-06MG24U designed to work with Zigbee2MQTT or ZHA integration for Home Assistant.
Wireless SoCs
Silicon Labs EFR32MG24 Arm Cortex-M4F microcontroller @ 48 MHz with 352KB flash, 256KB ROM for protocols and library functions, 80+8KB SRAM, integrated power amplifier, Bluetooth 5.2 Low Energy and 802.15.4 radios
Espressif Systems ESP32-S3 dual-core processor @ 240MHz with 448 KB ROM, 520 KB SRAM, 16 KB SRAM in RTC, WiFi and BLE connectivity
Connectivity
Ethernet RJ45 port with PoE support (IEEE 802.3af) implemented through Microchip LAN8720 10/100M Ethernet controller
2.4 GHz WiFi up to 100 Mbps
Zigbee 3.0 support
+5dB SMA antenna included
USB USB Type-C port for data and power
Misc 4x user LEDs, 1x button
Power Supply
oInput 5V/200mA via USB or PoE
Dimensions 160 x 26 x 22mm
Operating temperature: +5C - +35C
Note:
SLZB-06MG24U designed to work with Zigbee2MQTT or ZHA integration for Home Assistant.
