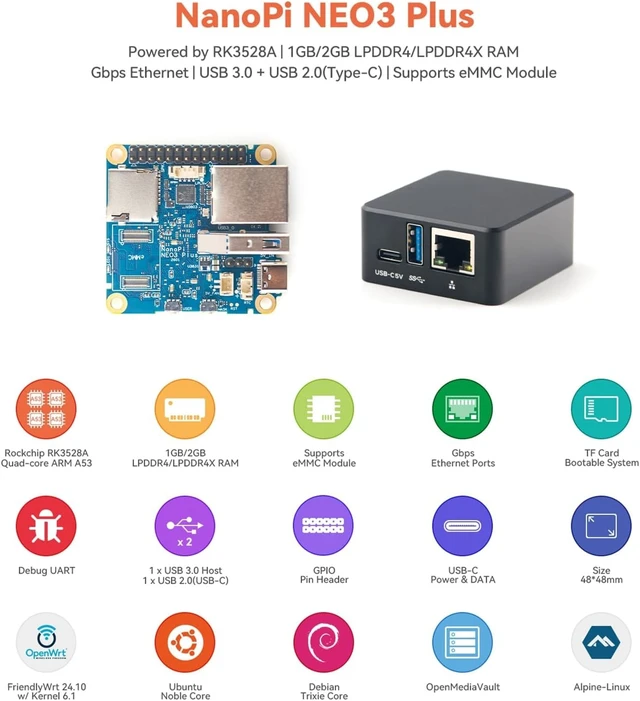

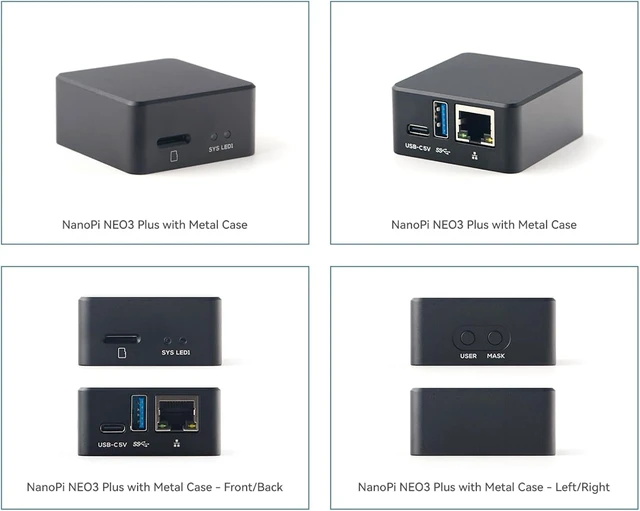

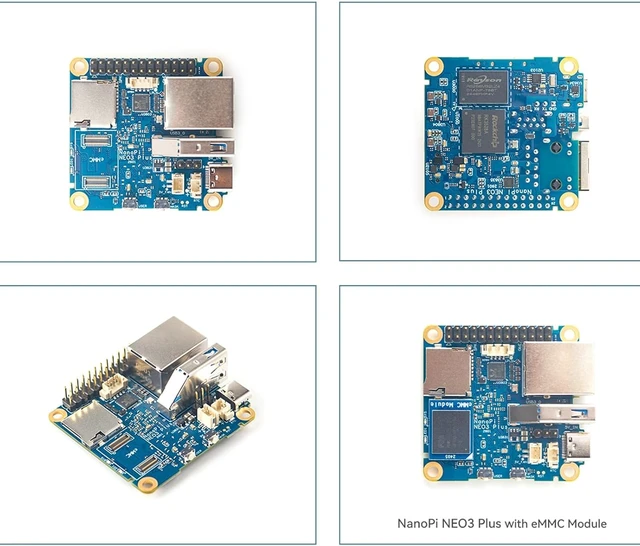

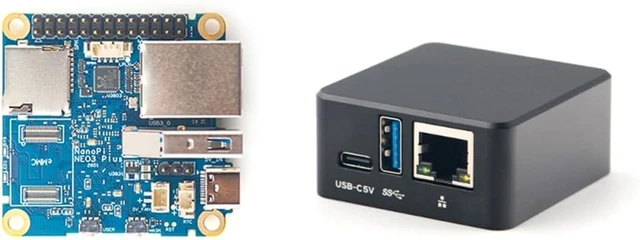

FriendlyElec NanoPi NEO3 Plus Mini Router OpenWRT, 1GB/2GB LPDDR4 RAM, Rockchip RK3528A SoC, Gigabit Ethernet, USB 3.0, eMMC Module Slot, FriendlyWrt/Linux OS (with Case, 2+0GB, Standard)

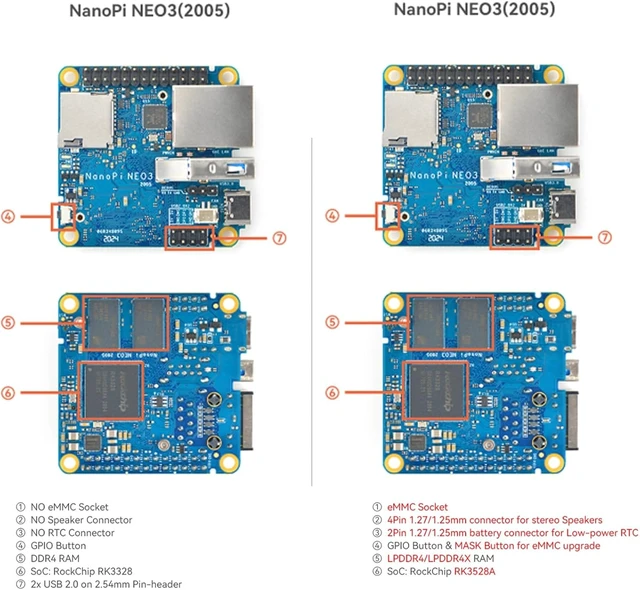

- [All-Around Enhanced Performance] NanoPi NEO3 Plus mini router is a fully enhanced version of the NanoPi NEO3, powered by an upgraded Rockchip RK3528A quad-core Cortex-A53 processor up to 1.8GHz for stronger performance and lower power consumption, ideal for OpenWrt routers, NAS, media centers, and embedded development.
- [Native Gigabit Networking] NanoPi NEO3 Plus mini router is equipped with RTL8211F native Gigabit Ethernet (nonUSB), 1×USB 3.0 TypeA and 1×USBC 2.0 device port. Perfect for building OpenWrt routers, NAS, smart home gateways and highspeed network projects.
- [4K Media Powerhouse] NanoPi NEO3 Plus mini router runs on Rockchip RK3528A Quad-Core ARM CortexA53 CPU up to 1.8GHz, with 1GB/2GB LPDDR4/LPDDR4X RAM, none eMMC. Builtin VPU and ARM Mali-450 GPU, supports hardware 4K 60fps H.265/H.264 decoding, ideal for media centers, digital signage and lightweight video applications.
- [Dual Flexible Storage] NanoPi NEO3 Plus mini router supports optional eMMC modules (64GB/
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

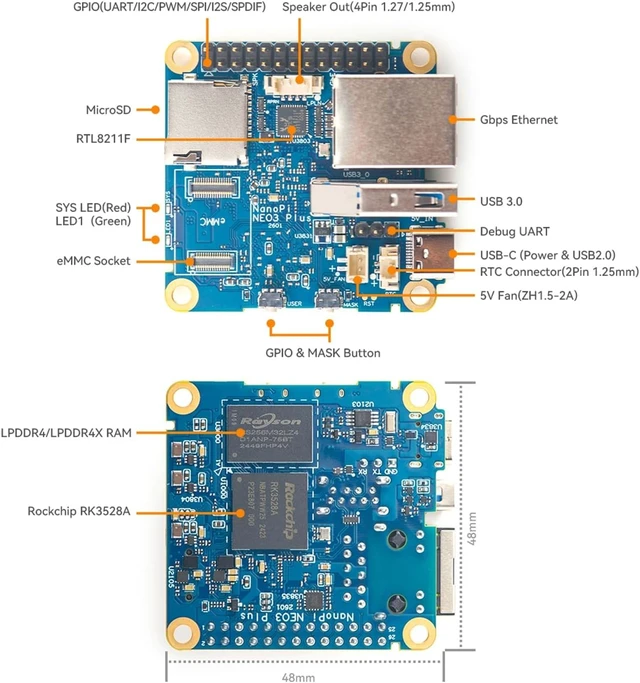

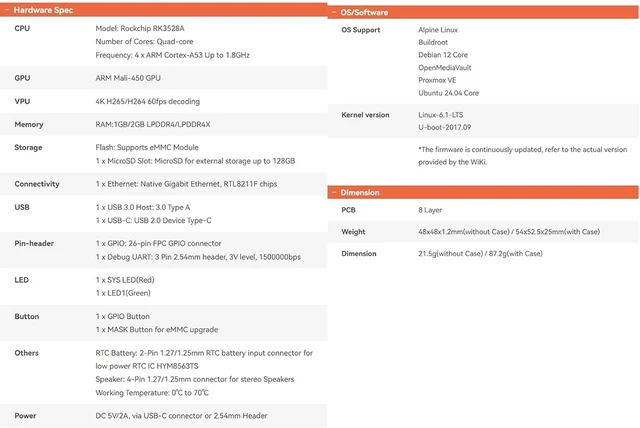

-Hardware Specification-
SoC: Rockchip RK3528A
CPU: Quad-core ARM Cortex-A53
GPU: ARM Mali-450 GPU
VPU: 4K H265/H264 60fps decoding
RAM: LPDDR4
Flash: Supports eMMC Module
Ethernet: one Native Gigabit Ethernet
USB Ports:
One USB 3.0 Host Type-A port
One USB 2.0 Host Type-C port
One microSD Slot
One 26-Pin FPC GPIO connector
Debug: Debug UART, 3.3V level, 1500000bps
LEDs: 2 x GPIO Controlled LEDs (SYS & LED1)
others:
4-Pin 1.27/1.25mm connector for stereo Speakers
2-Pin 1.5mm 5V FAN connector
GPIO Button, and MASK Button for eMMC upgrade
Power supply: DC 5V/2A, via USB-C connector or 2.54mm Header
PCB Size: 48481.2mm
Temperature measuring range: 0 to 80
-Supported OS-
FriendlyWrt 21.02 / 23.05 / 24.10
Debian
Ubuntu 24.04 Core
OpenMediaVault
Proxmox VE
Buildroot
SoC: Rockchip RK3528A
CPU: Quad-core ARM Cortex-A53
GPU: ARM Mali-450 GPU
VPU: 4K H265/H264 60fps decoding
RAM: LPDDR4
Flash: Supports eMMC Module
Ethernet: one Native Gigabit Ethernet
USB Ports:
One USB 3.0 Host Type-A port
One USB 2.0 Host Type-C port
One microSD Slot
One 26-Pin FPC GPIO connector
Debug: Debug UART, 3.3V level, 1500000bps
LEDs: 2 x GPIO Controlled LEDs (SYS & LED1)
others:
4-Pin 1.27/1.25mm connector for stereo Speakers
2-Pin 1.5mm 5V FAN connector
GPIO Button, and MASK Button for eMMC upgrade
Power supply: DC 5V/2A, via USB-C connector or 2.54mm Header
PCB Size: 48481.2mm
Temperature measuring range: 0 to 80
-Supported OS-
FriendlyWrt 21.02 / 23.05 / 24.10
Debian
Ubuntu 24.04 Core
OpenMediaVault
Proxmox VE
Buildroot
