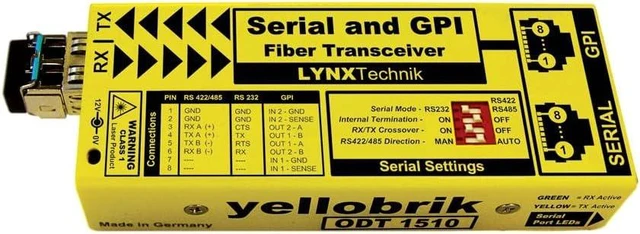

RS232/422/485 and GPI Fiber Transceiver (ODT 1510)

The ODT 1510 is a multi-function module which (when used with another ODT 1510 in the remote location) will extend the reach of serial RS232, RS422 or RS485 as well as two GPI (general purpose I/O) up to 10km (6.2 miles) over fiber. Features Extend serial and GPI connections up to 10km Supports serial RS232 or RS422 or RS485 2 x GPI connections Singlemode fiber 1310nm up to 10km (6.2 miles) LC/PC duplex fiber connections Switchable RX/TX crossover Automatic or manual data direction Switchable end of line termination Plug and Play - No PC software drivers needed Supports all serial protocols (standard or proprietary) 300 - 460K Baud (auto sensing and auto adjusting) Hot swappable, hot pluggable The ODT 1510 is a multi-function module which (when used with another ODT 1510 in the remote location) will extend the reach of serial RS232, RS422 or RS485 as well as two GPI (general purpose I/O) up to 10km (6.2 miles) over fiber. A single RJ45 electrical serial connection can be configured for RS232,RS422 or RS485 serial standards. A separate RJ45 connector is provided for two electrical GPI inputs and outputs. P-TAP 1000: P-TAP Battery Adapter Cable This option allows the yellobrik to be powered from a battery with a standard P-TAP power connection. Cable length 1.8m XLR-1000: 4 Pin XLR Camera Battery Adapter Cable This option allows the yellobrik to be powered from a camera battery with a standard 4 pin XLR power connection. Cable length 1.8m
