PCIe to MiniPCIe/Gigabit Ethernet/USB 3.2 Gen1 HAT for Raspberry Pi 5, Supports MiniPCIe Interface 4G Module, High-Speed Networking, EG25-G mPCIe Module Include (EG25-G 4G GbE USB3.2 HAT+)

Introduction

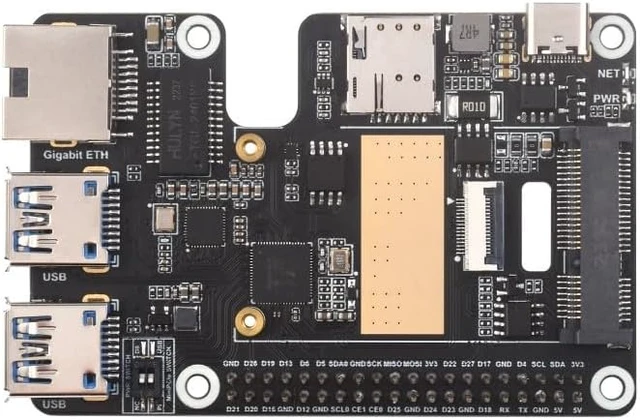

This adapter board supports converting the PCIe interface to USB3.2, MiniPCIe and Gigabit ETH, designed for Raspberry Pi 5. It is compatible with multiple MiniPCIe 4G modules or MiniPCIe devices, supports Gen2 mode and high-speed communication.

PCIe TO MiniPCIe GbE USB3.2 HAT+ Features:
Designed for Raspberry Pi 5, with HAT+ standard, onboard I2C EEPROM, and support 40pin GPIO header for stacking and expansion.
Support PCI-E×1 Gen2 mode.
Onboard 2-ch USB 3.2 Gen1 high-speed interface, for connecting to more peripheral devices, support PCIe to expand USB3.2 MiniPCIe interface, high-speed communication, with lower latency.
Onboard MiniPCIe interface, support MiniPCIe 4G modules such as SIM7600G-H-PCIE and EG25-G mPCIe.
Expand driver-free Gigabit Ethernet port.
Onboard Type-C interface for 4G networking, debugging, firmware update on PC, or for external power input.
Onboard power monitoring chip for real-time monitoring of voltage, current and power parameters.
Onboard SIM card slot for inserting Nano-SIM card.
Onboard reset key, power and network indicator for debugging and checking module working status.

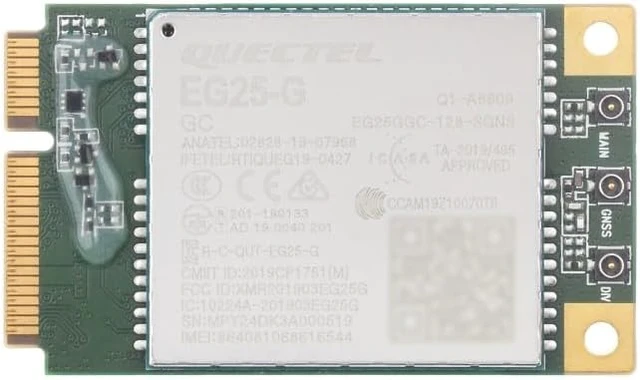

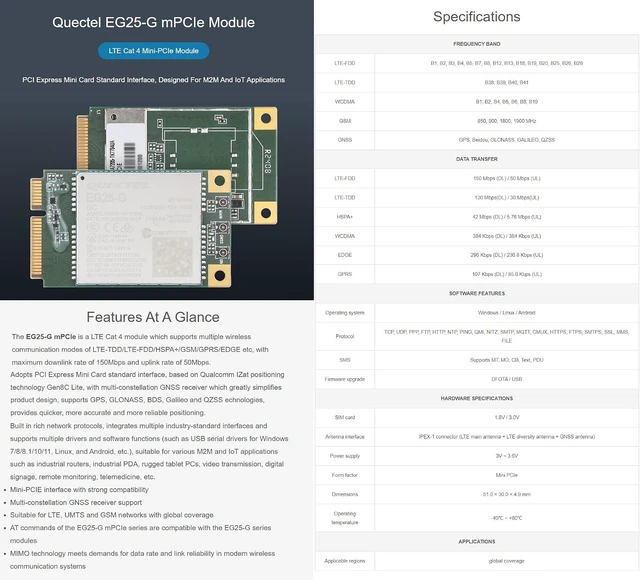

EG25-G mPCIe Features:
Mini-PCIE interface with strong compatibility.
Multi-constellation GNSS receiver support.
Suitable for LTE, UMTS and GSM networks with global coverage.
AT commands of the EG25-G mPCIe series are compatible with the EG25-G series modules.
MIMO technology meets demands for data rate and link reliability in modem wireless communication systems.

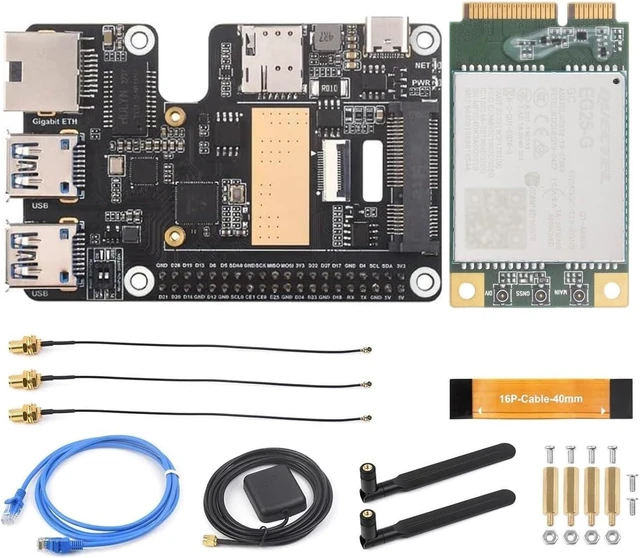

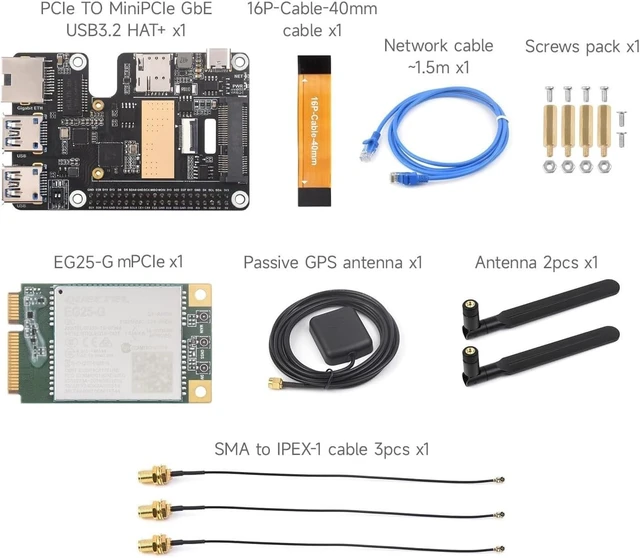

Package Content
1. PCIe TO MiniPCIe GbE USB3.2 HAT+ x1
2. EG25-G-mPCIe x1
3. 16P-Cable-40mm cable x1
4. Network cable ~1.5m x1
5. Screws pack x1
6. Antenna 2pcs x1
7. Passive GPS antenna x1
8. SMA to IPEX-1 cable 3pcs x1
