100 Meters, 10Gb SFP+ to RJ45 Module, 2.5G/5G/10GBase-T Ethernet Copper Transceiver for Ubiquiti UF-RJ45-10G, Plugin 10Gb SFP+ Port, Low Power Consumption
- Low Consumption: Built-in Broadcom chip, Max. Power Consumption 2W;
- COMPATIBILITY: This 10G SFP RJ45 Copper Transceiver is 100% compatible for Ubiquiti Unifi UF-RJ45-10G/ UACC-CM-RJ45-MG, connecting 10g Ubiquiti UDM PROM MAX, 10g network interface card (NICs) , 10g sfp+ media converter etc;

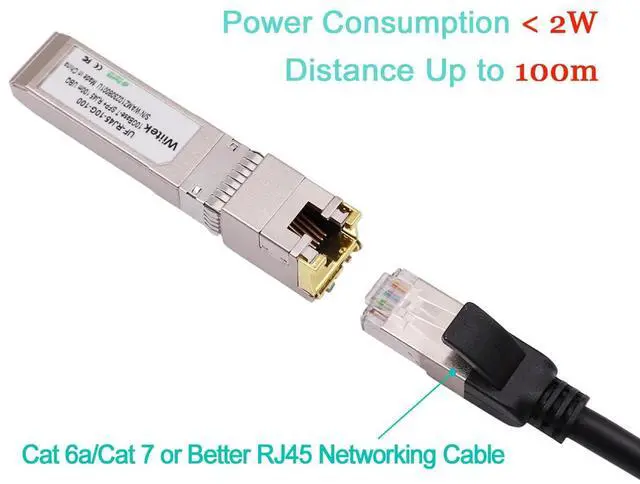

- CABLE DISTANCE: 10GBase-T SFP to RJ45 Module supports Links up to 100m using Cat 6a/7 or Better 10G Networking Cable , need to plug into 10G SFP+ Ports;
- PROTOCOLS: 10Gb SFP+ to Ethernet Adapter/Converter is SFF-8431 MSA compliant , IEEE 802.3az compliant;
- Each Module is individually 100% tested on the 10G SFP+ Switch Connecting with 10G RJ45 networking cables before shipping;
- HOT SWAPPABLE:Hot-swappable transceivers that plugs into an 10Gb SFP+ port, plug and play, no need to power down if installing or replacing;
- This 10G SFP+ transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections;
- SUPPORT: 30 Days Free-returned, 1-
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

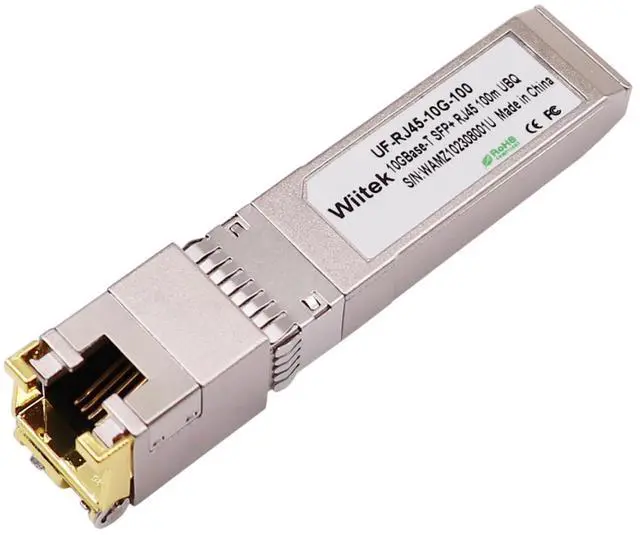

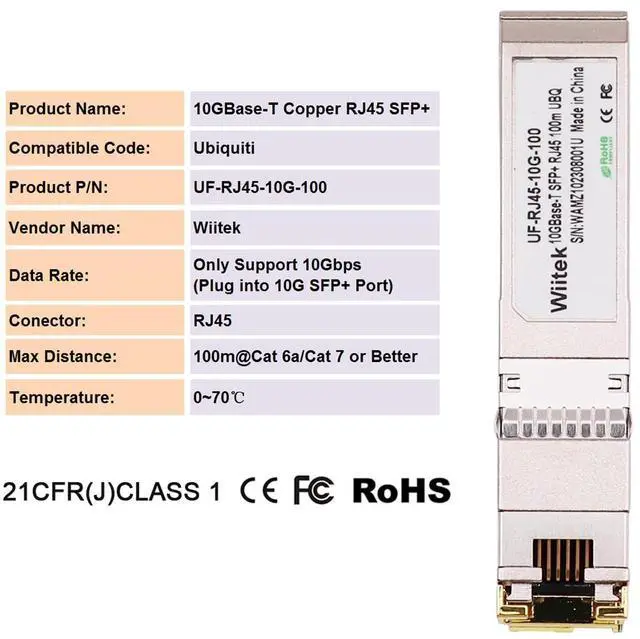

Ubiquiti UF-RJ45-10G Compatible 10GBase-T SFP+ 10 Gigabit RJ45 Copper SFP Transceiver 100-Meter
Features
Supports Links up to 100m using Cat 6a/7 or Better Cable
SFF-8431 MSA Compliant
IEEE 802.3az and 802.3an Compliant
Hot-pluggable SFP+ footprint
TX Disable and RX Los function
Fully metallic enclosure for Low EMI Emissions
+3.3V single power supply
Built-in Broadcom chip, Max. Power Consumption 2W
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
MDI/MDIX Crossover
Multiple Loopback Modes for Testing and Troubleshooting
Built-in Cable Monitoring and Link Diagnostic
Unshielded and Shielded cable support
Operating case temperature range of 0°C to +70°C
Applications
10 Gigabit Ethernet over Cat 6A/Cat 7 or Better cable
Features
Supports Links up to 100m using Cat 6a/7 or Better Cable
SFF-8431 MSA Compliant
IEEE 802.3az and 802.3an Compliant
Hot-pluggable SFP+ footprint
TX Disable and RX Los function
Fully metallic enclosure for Low EMI Emissions
+3.3V single power supply
Built-in Broadcom chip, Max. Power Consumption 2W
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
MDI/MDIX Crossover
Multiple Loopback Modes for Testing and Troubleshooting
Built-in Cable Monitoring and Link Diagnostic
Unshielded and Shielded cable support
Operating case temperature range of 0°C to +70°C
Applications
10 Gigabit Ethernet over Cat 6A/Cat 7 or Better cable
