 P4818D-K |  P4826D-K |  P4810D-K |  RD-J06Q-HG2-US |  SFP-P08EJ-HG2 |  JHJ-08EB | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Ethernet Port | 16x1000Mbps | 24x1000Mbps | 8x1000Mbps | 8×10Gbps | 8x2.5Gbps | 8x2.5Gbps |
| UpLink Port | 2x1000Mbps | 2x1000Mbps | 2x1000Mbps | 2x10Gbps | 2x10Gbps | X |
| POE Power Output | 250W | 400W | 120W | X | 120W | X |
| Switch Capacity | 36Gbps | 52Gbps | 20Gbps | 160Gbps | 80Gbps | 60Gbps |
| Dimensions (L x W x H) | 12.3×7.2×1.8in | 12.3×7.2×1.8in | 8×5.5×1.8in | 10.6×7.1×1.7in | 10.6×7.1×1.7in | 7.2×3.7×1.1in |
| Weight (lbs) | 3.5 | 3.7 | 1.79 | 2.43 | 2.43 | 1.76 |

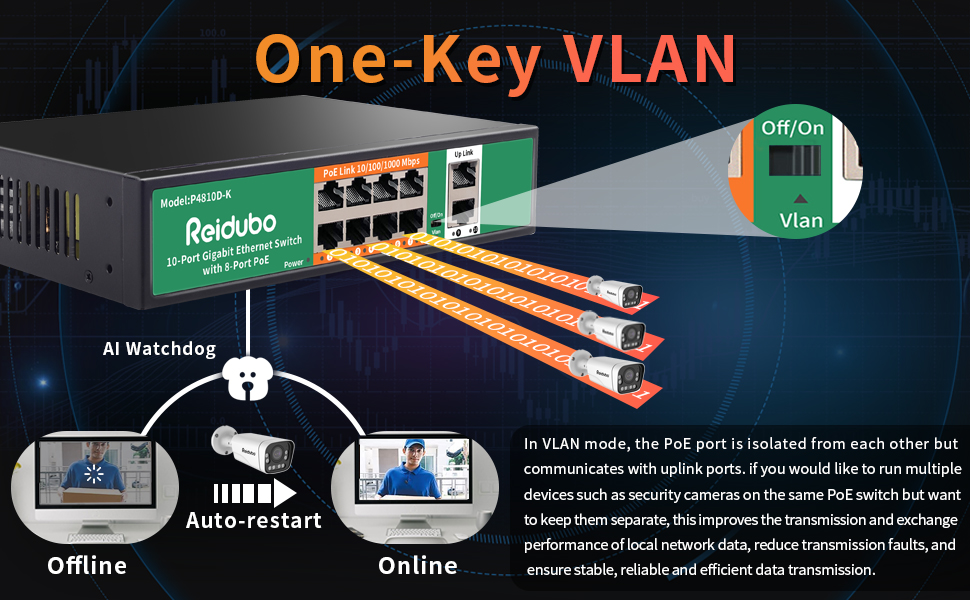

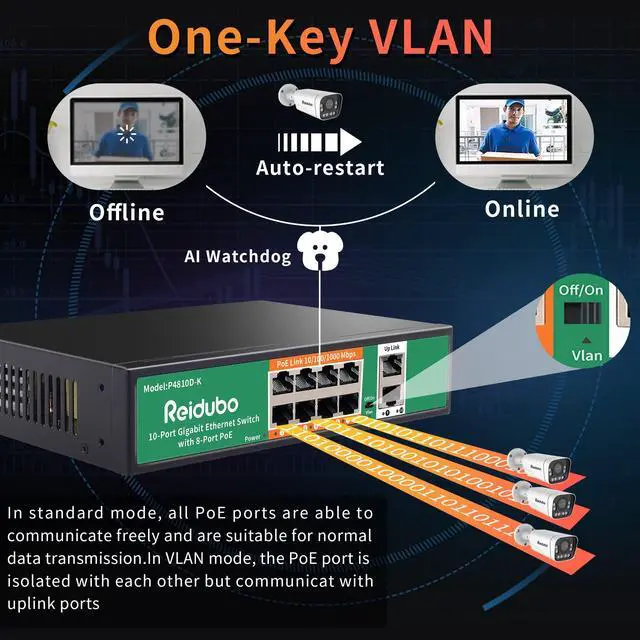

| VLAN | ? | ? | ? | X | X | X |
| Fan Design | Fanless | Fanless | Fanless | Quiet Fan | Fanless | Fanless |
| Case Material | Metal | Metal | Metal | Metal | Metal | Metal |
| SFP Port | 2x10Gbps | 2x10Gbps | null |
Technical Details
Reidubo Store
Reidubo Store
Reidubo is a technology company that focuses on intelligent surveillance cameras and POE switches. Reidubo is committed to providing customers with safe and reliable networking and intelligent surveillance solution used for various scenarios such as education, office, hotel and etc.
We are committed to providing the best quality product and best service to customers
Reidubo Store
P4818D-K | P4826D-K | P4810D-K | RD-J06Q-HG2-US | SFP-P08EJ-HG2 | JHJ-08EB | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Ethernet Port | 16x1000Mbps | 24x1000Mbps | 8x1000Mbps | 8×10Gbps | 8x2.5Gbps | 8x2.5Gbps |
| UpLink Port | 2x1000Mbps | 2x1000Mbps | 2x1000Mbps | 2x10Gbps | 2x10Gbps | X |
| POE Power Output | 250W | 400W | 120W | X | 120W | X |
| Switch Capacity | 36Gbps | 52Gbps | 20Gbps | 160Gbps | 80Gbps | 60Gbps |
| Dimensions (L x W x H) | 12.3×7.2×1.8in | 12.3×7.2×1.8in | 8×5.5×1.8in | 10.6×7.1×1.7in | 10.6×7.1×1.7in | 7.2×3.7×1.1in |
| Weight (lbs) | 3.5 | 3.7 | 1.79 | 2.43 | 2.43 | 1.76 |
| VLAN | ? | ? | ? | X | X | X |
| Fan Design | Fanless | Fanless | Fanless | Quiet Fan | Fanless | Fanless |
| Case Material | Metal | Metal | Metal | Metal | Metal | Metal |
| SFP Port | 2x10Gbps | 2x10Gbps | null |
Technical Details

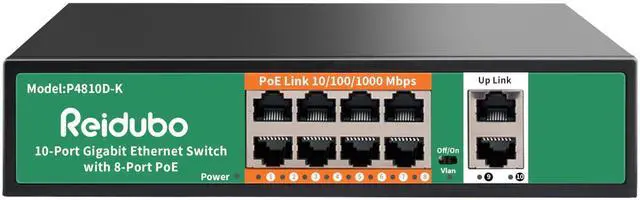

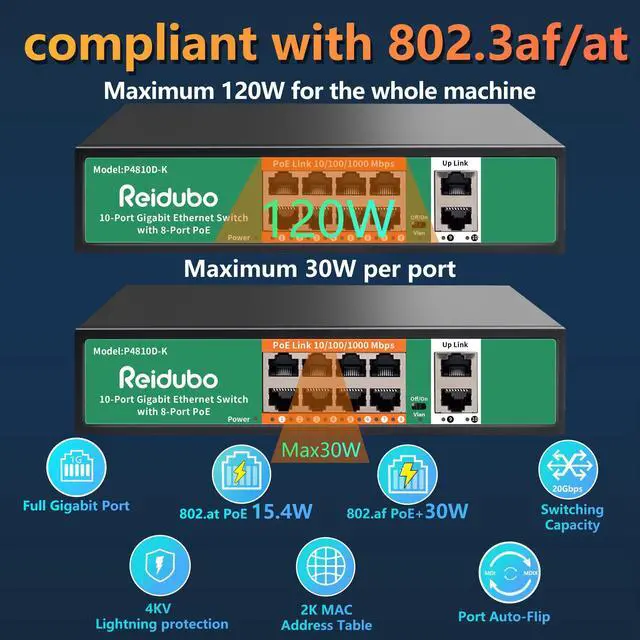

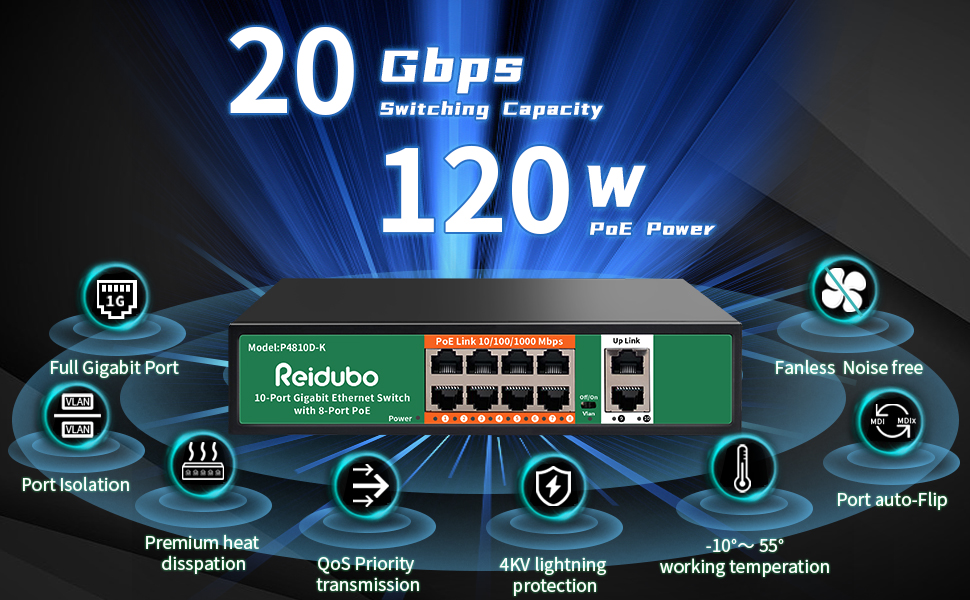

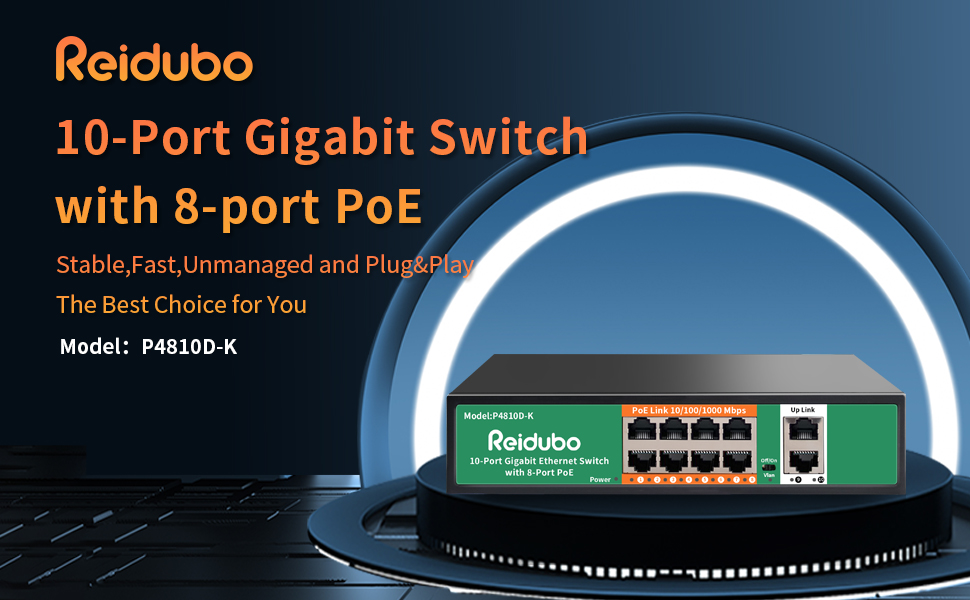

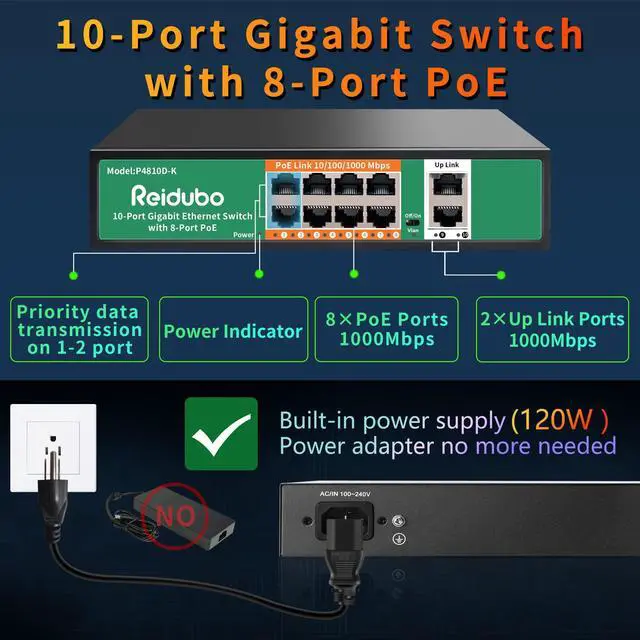

| Model | P4810D-K(8 PoE Port) |
| PoE Protocol | IEEE802.3AF/AT |
| Interface | 10*10/100/1000Mbps auto-negotiation RJ45 ports (Auto MDI/MDIX) |
| Dimensions | 8×5.5×1.8in |
| Power Supply | Input: AC:100-240V; 50/60Hz Output: 52V 2.5A (Built-in Power Supply) |
| Switching Capacity | 20Gbps |
| Operating Temperature | -14?~131? |
| Lightning protection | 4KV |
| Forwarding mode | store and forward |
| MAC address | 2K |
| PoE Type | End-Span |
| Forwarding rate | 10BASE-tx:14880PPS/port;100BASE-tx:148800PPS/port;1000BASE-tx:1488000PPS/port; |
| Output power | 15.4W/MAX30W |
| Transmission distance | =100m |
| Power pin | 1/2+ 3/6- |

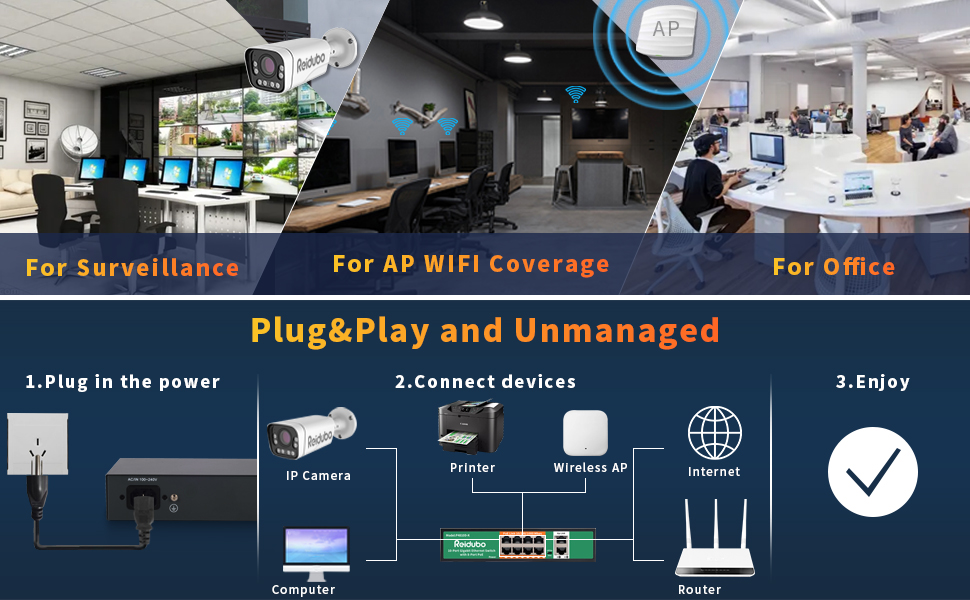

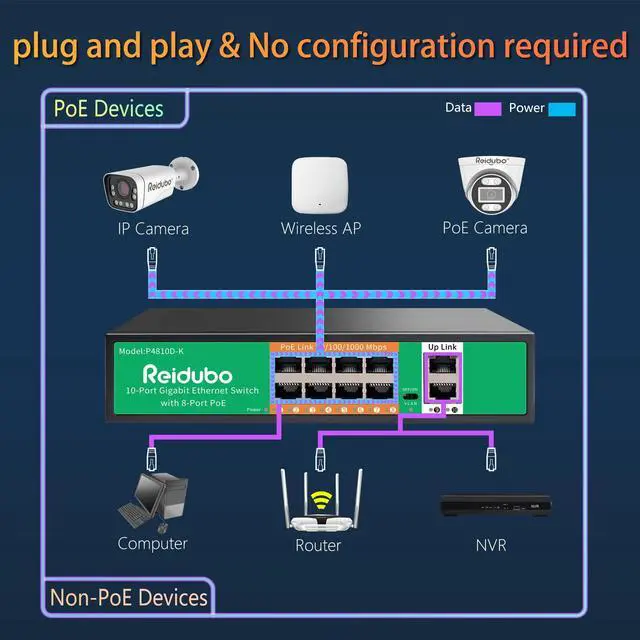

| NO system | Unmanaged ,Plug and Play, without software installation or configuration |
