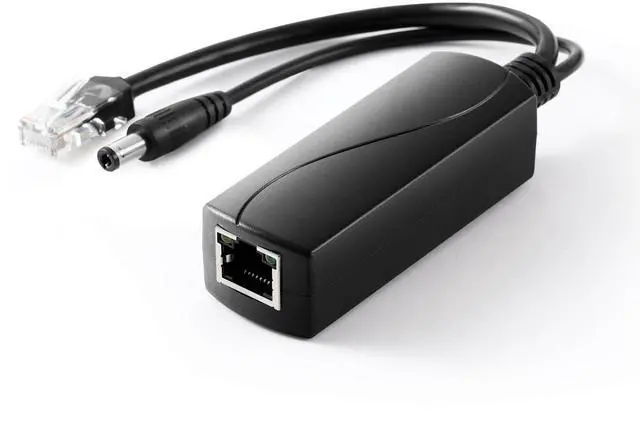

2.5G PoE Splitter 12V/2A, DC 5.5 * 2.5mm Plug, 48V PoE to DC 12V/2A 24W Output, 2.5Gbps Ethernet Comply IEEE802.3af/at, Plug and Play for IP Camera, Smart Home
- DC 12V/2A Output 48V PoE convert to DC 5.5*2.5mm (DC 5.5*2.1mm) 12V/2A adaptive power output, the DC plug only deliver power.
- 2.5Gbps Speed Support up to 2.5Gbps Internet speed, enable your device run at full speed. Provide super fast Ethernet transmission without delay.
- Easy Set up Easy to power your device with plug and play function, Auto detect power from Power Sourcing Equipment. Auto deliver right power for terminal device.

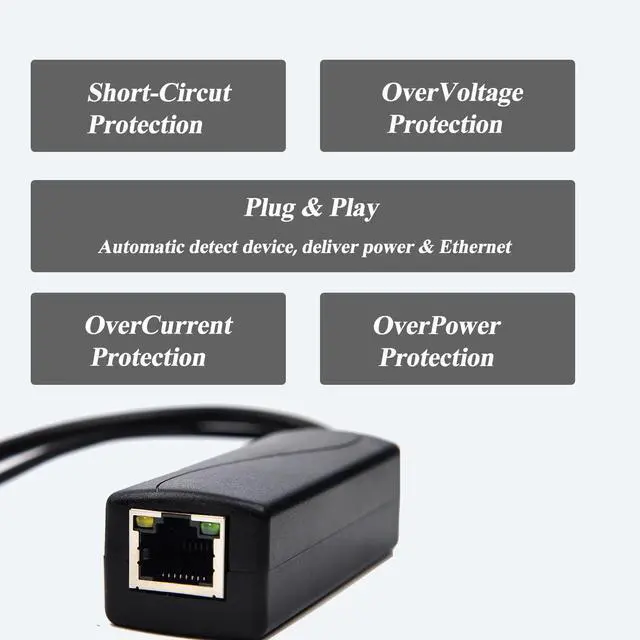

- Multiple ProtectionSupport the isolation circuit protection, the short circuit protection, the overvoltage protection, can effectively protect your equipment.

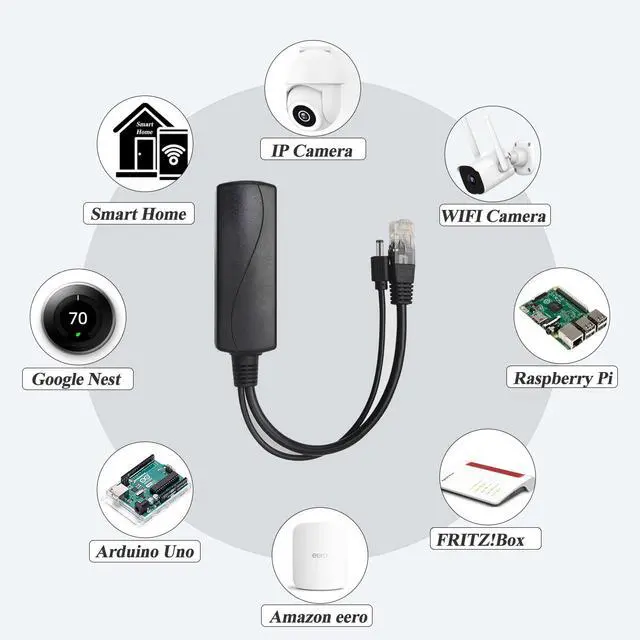

- How to UseUsing IEEE802.3af/at PoE switch or PoE injector power the splitter, the PoE splitter will separate PoE into power and data via RJ45 port and DC port, provides power and data for Non-PoE terminal device like IP camera.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Note:
2.5Gbps speed performance requires 2.5GB capable networking infrastructure, please eusure your network environment support 2.5G Ethernet.

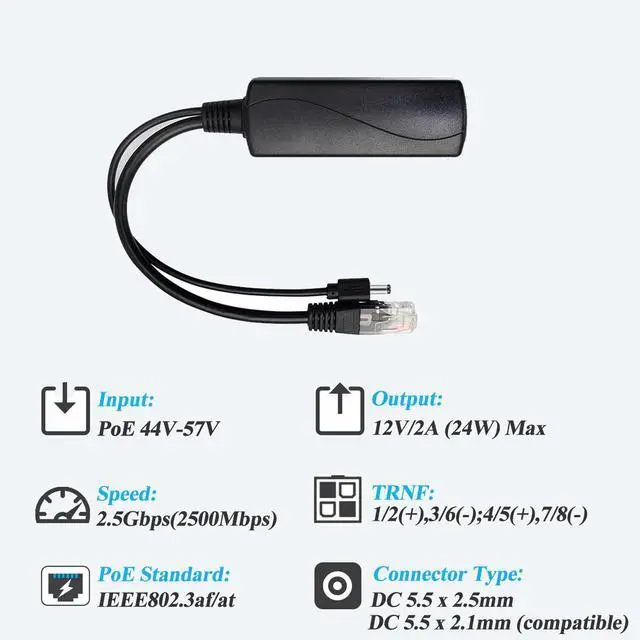

Specifications
Support international standard IEEE802.3 af/at(30W);
POE port Support 2.5Gbps data transmission
PD support 44V - 57V voltage transmission, Automatically detects power supply from PSE power supply module
12V 2A power output, easy to access Poe network for non-PoE terminal
Support the isolation circuit protection, can effectively protect electrical equipment.
Support the short circuit, overvoltage protection

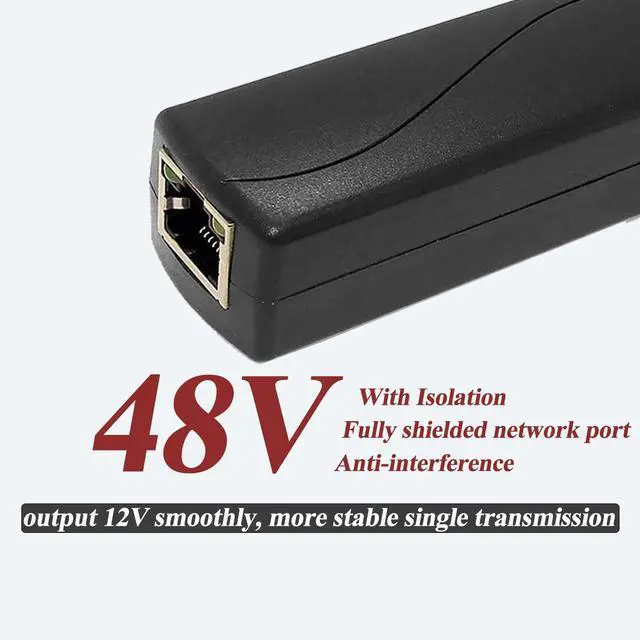

1500V high voltage isolation
Model: PS5712TG-25-X
Transfer Rate: 10/100/1000Mbps, 2.5Gbps
Power: Input 48V DC /0.6A, Output 12V/2A
Standard: IEEE802.3 af/IEEE802.3 at(30W)
TRNF: 1/2(+),3/6(-);4/5(+),7/8(-)
Interface Type: 1 Input RJ45 port, 1 output RJ45 port, 1 DC output5.5x2.5mm
Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af, IEEE 802.3 at
LED: Yellow PoE lamp
Temperature: Work within -20~50°,Storage within -30~60°
Humidity: Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing)
DC Jack: 5.5 x 2.5mm

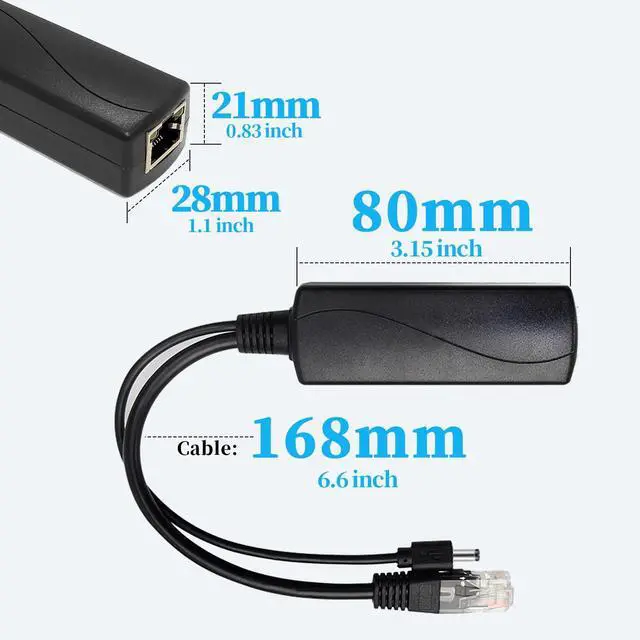

Dimension: 27.5 x 2.8 x 2.3cm
Weight: 0.05kg
Package Content:
1 * POE Splitter (PS5712TG-25-X)
